System Diagram

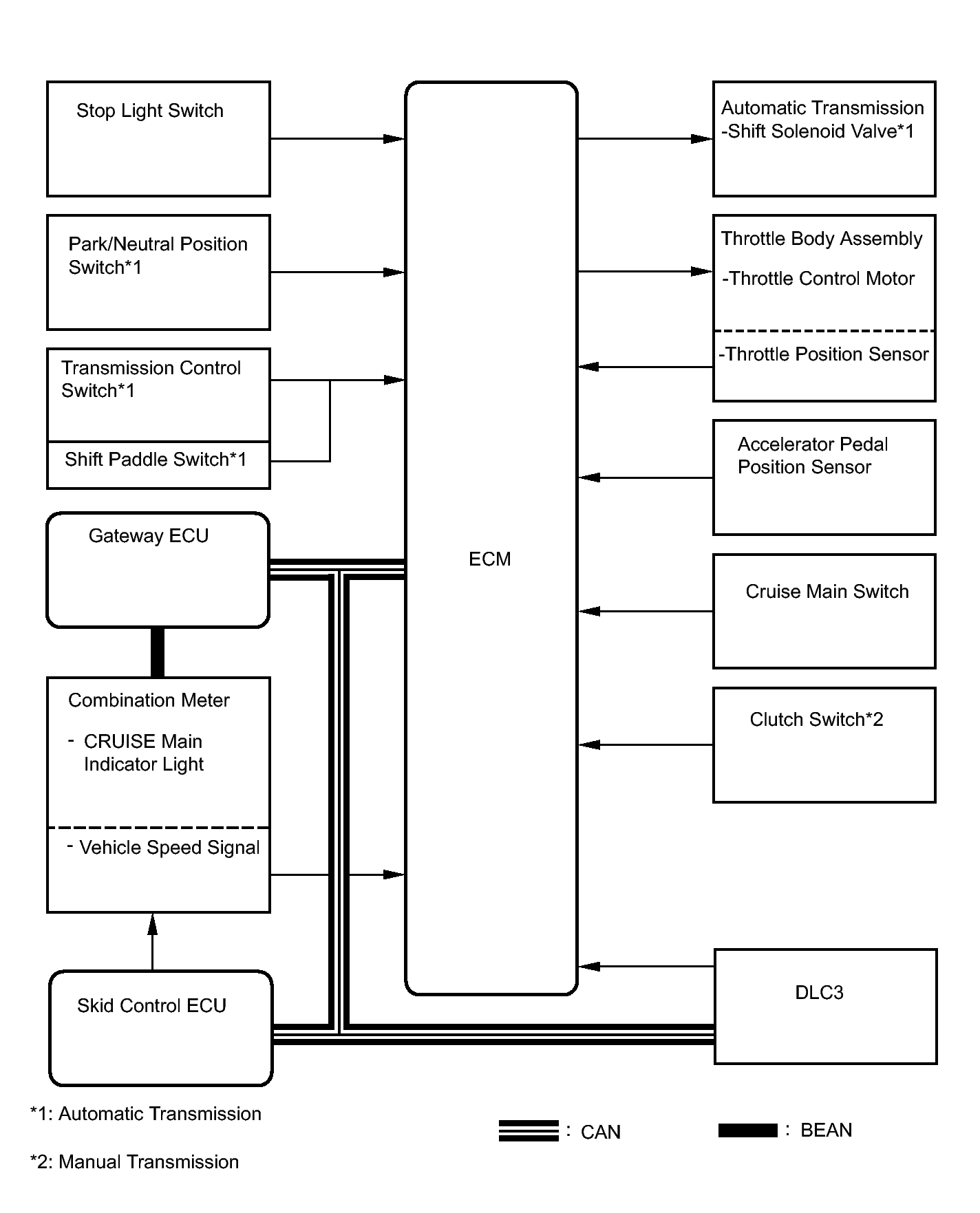

Fig 1: Identifying Cruise Control System Op[eration Diagram
GTY351497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Line
ECM Combination Meter ECU CRUISE main indicator operation signal BEAN - CAN
(Instrument Panel Bus)
