Console Box Light: Components: Illustration

WARNING: This page is about a different car, the 2011 Lexus IS 350 and 2011 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

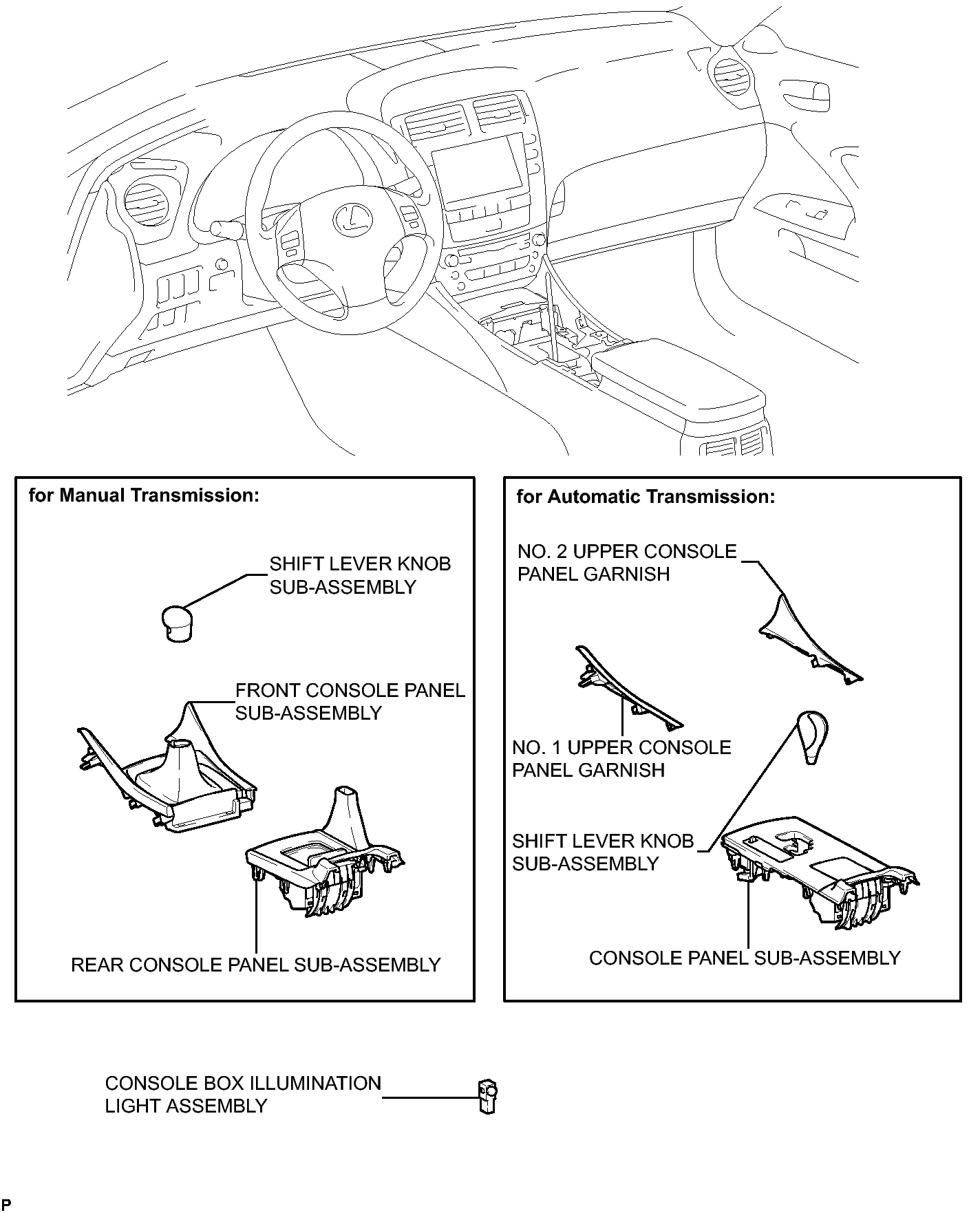

Fig 1: Identifying Console Box Light Replacement Components
GTY151404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
