Skid Control ECU Communication Stop Mode: Wiring Diagram

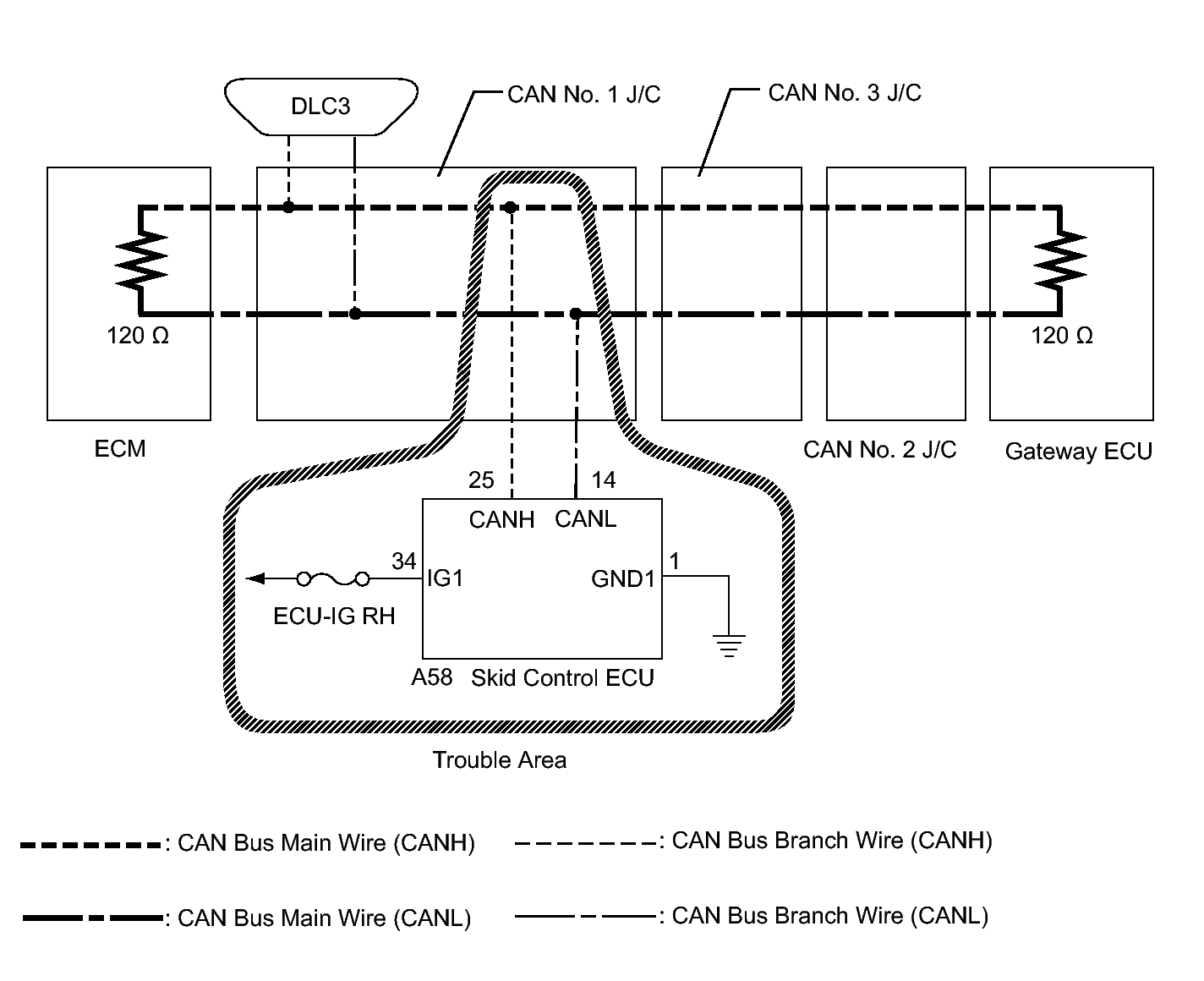

Fig 1: Identifying Skid Control ECU Communication Stop Mode - Wiring Diagram

GTY273516

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
