Ignition Coil And Spark Plug: Installation: Installation

  1. INSTALL SPARK PLUG
    1. Using a spark plug wrench, install the 6 spark plugs.

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

  2. INSTALL IGNITION COIL ASSEMBLY
    1. Install the 6 ignition coil assemblies with the 6 bolts.

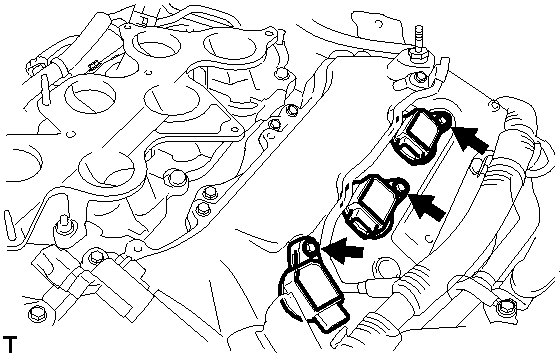

      Fig 1: Identifying Bolts & Ignition Coil Assemblies
      GTY146014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    2. Connect the 6 ignition coil connectors.
  3. INSTALL INTAKE AIR SURGE TANK ASSEMBLY
    1. Install the intake air surge tank. Refer to INSTALLATION .
