Parts Location: Illustration

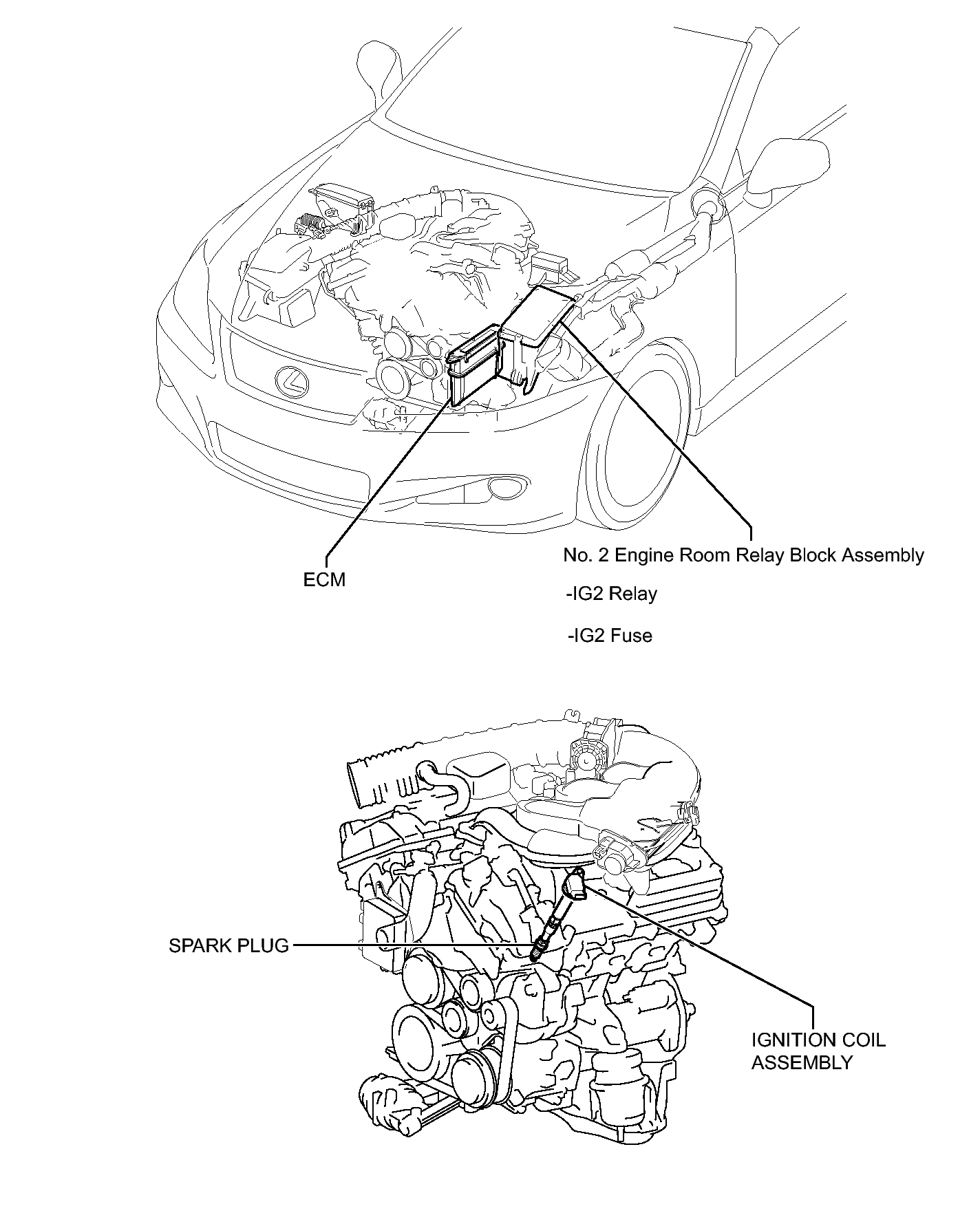

Fig 1: Identifying Ignition System Components Location

GTY263623

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
