Front Door Lock: Components: Illustration

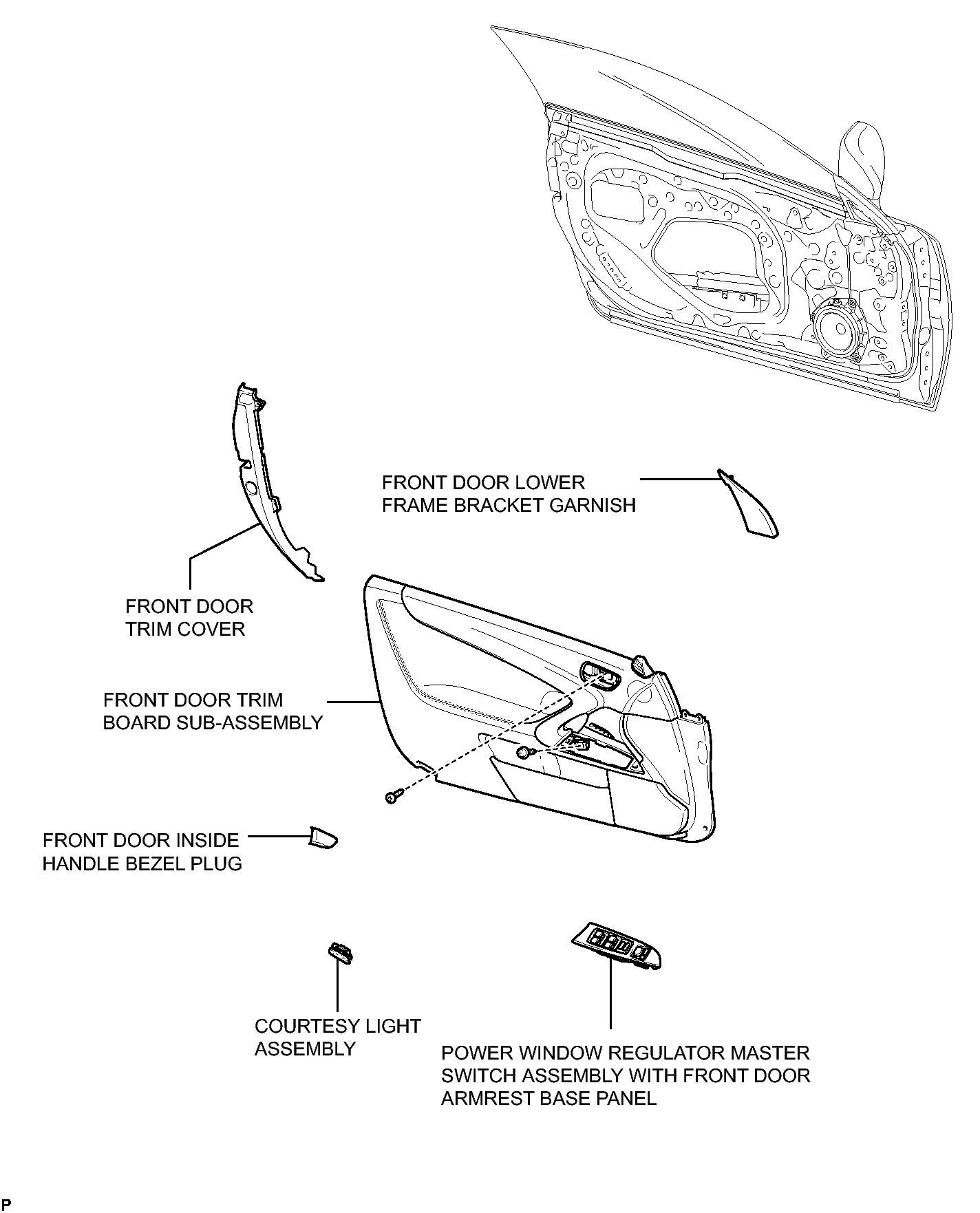

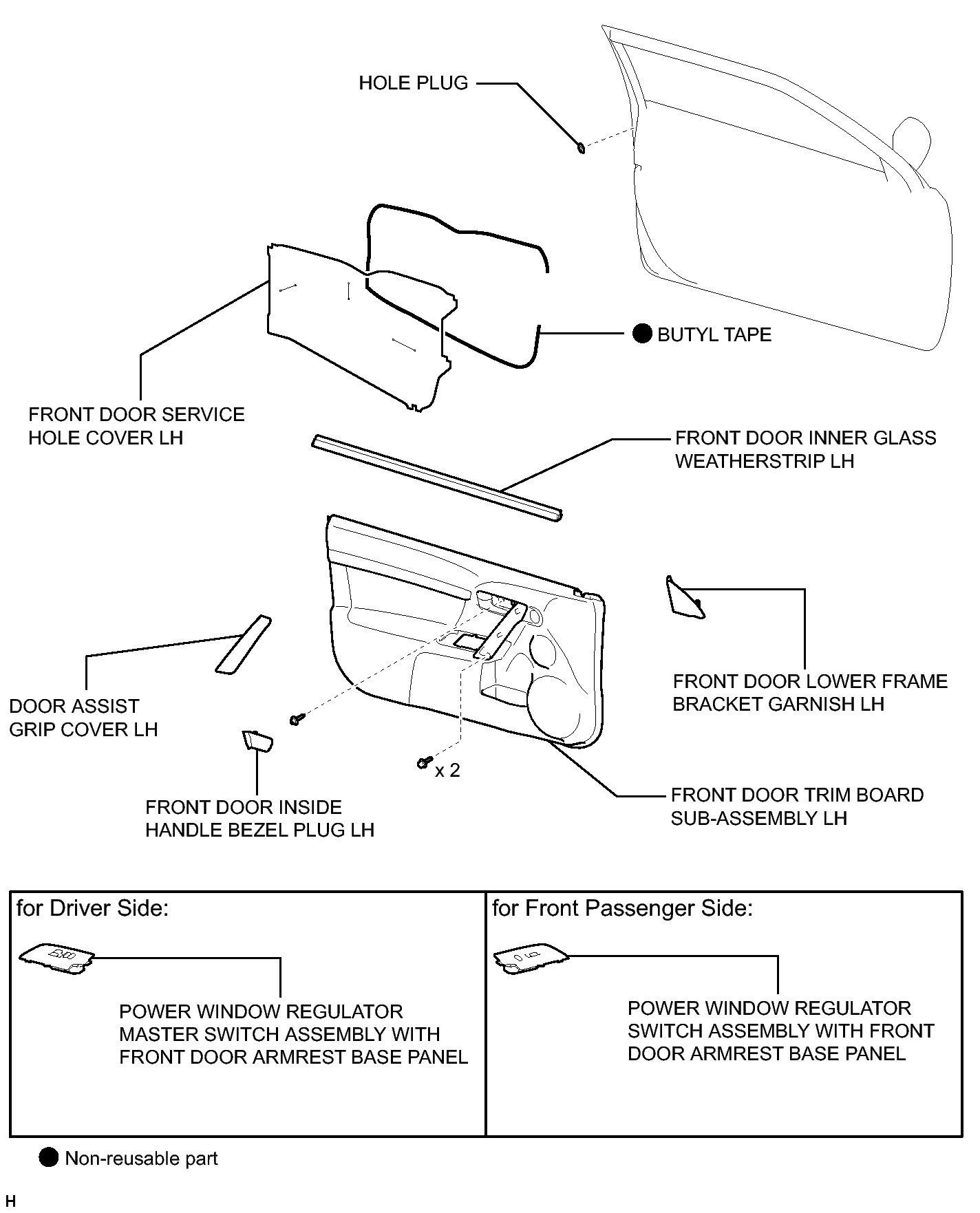

Fig 1: Identifying Front Door Lock Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

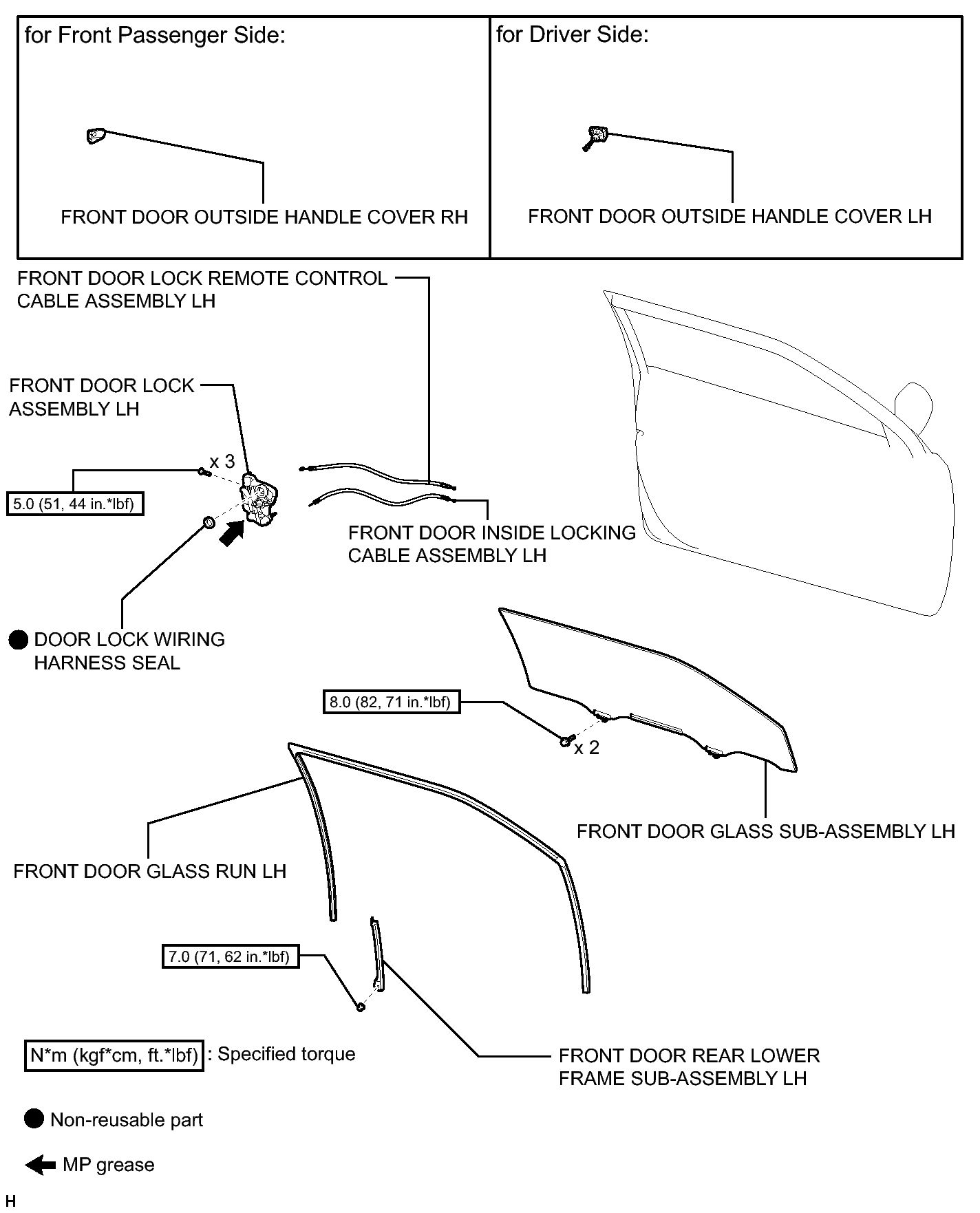

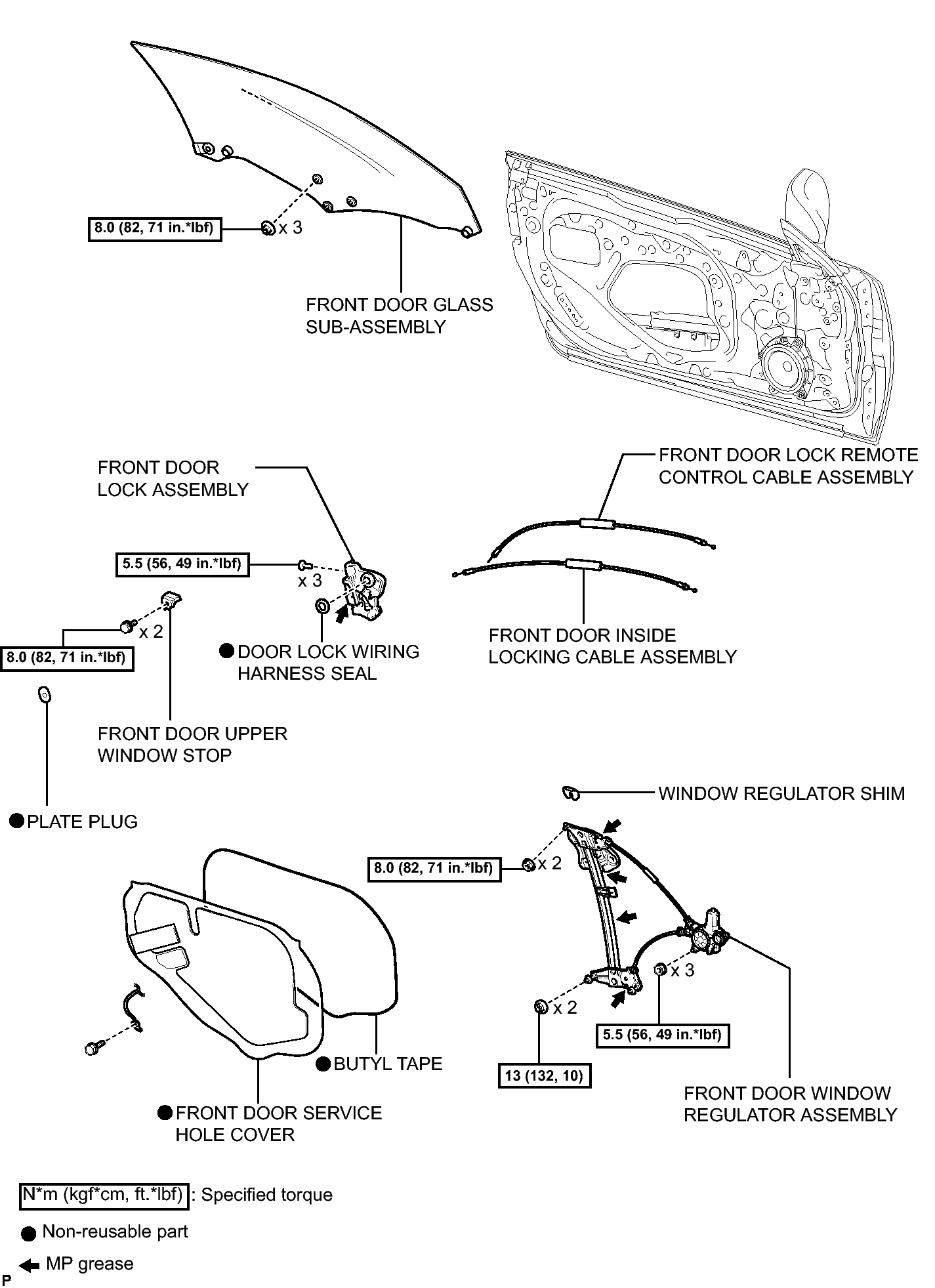

Fig 1: Identifying Front Door Lock Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
