Power Source Control Ecu: Components: Illustration

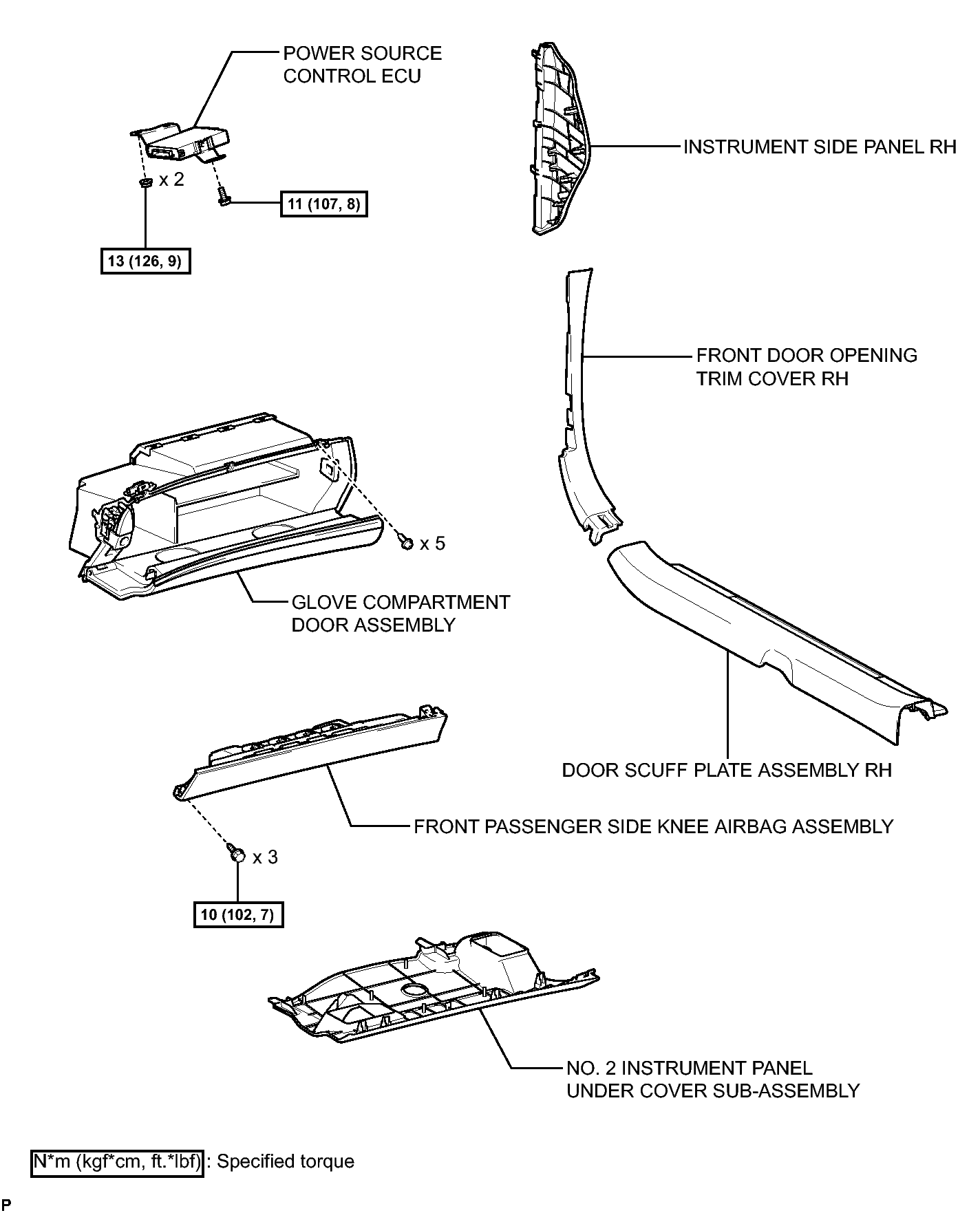

Fig 1: Identifying Power Source Control ECU Replacement Components With Torque Specifications

GTY359314

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
