Fuel Pressure Pulsation Damper: Components: Illustration

Fig 1: Fuel Pressure Pulsation Damper Replacement Components With Torque Specifications (1 Of 2)
GTY350632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

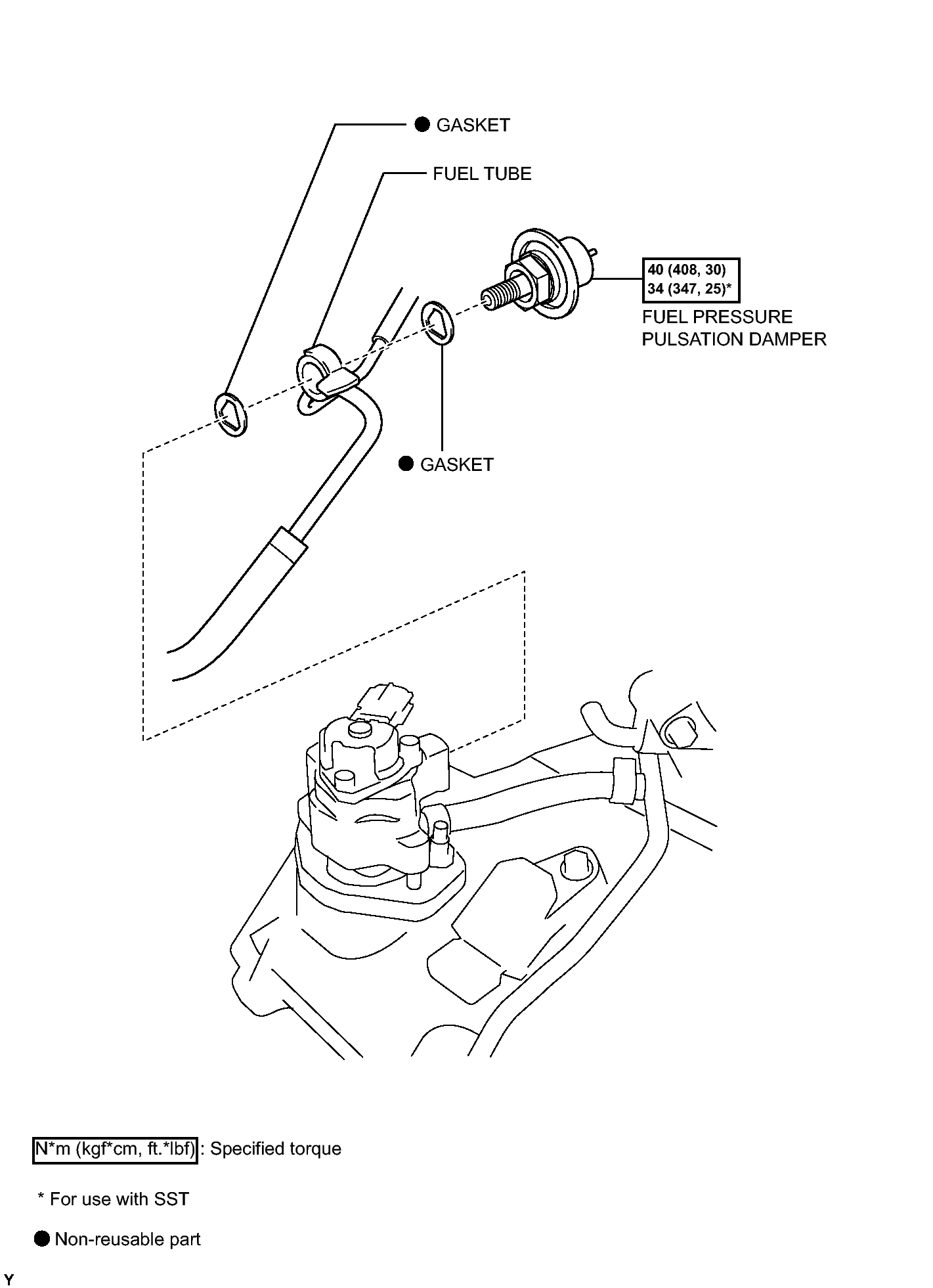

Fig 1: Fuel Pressure Pulsation Damper Replacement Components With Torque Specifications (2 Of 2)
GTY287752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
