Brake Actuator: Components: Illustration

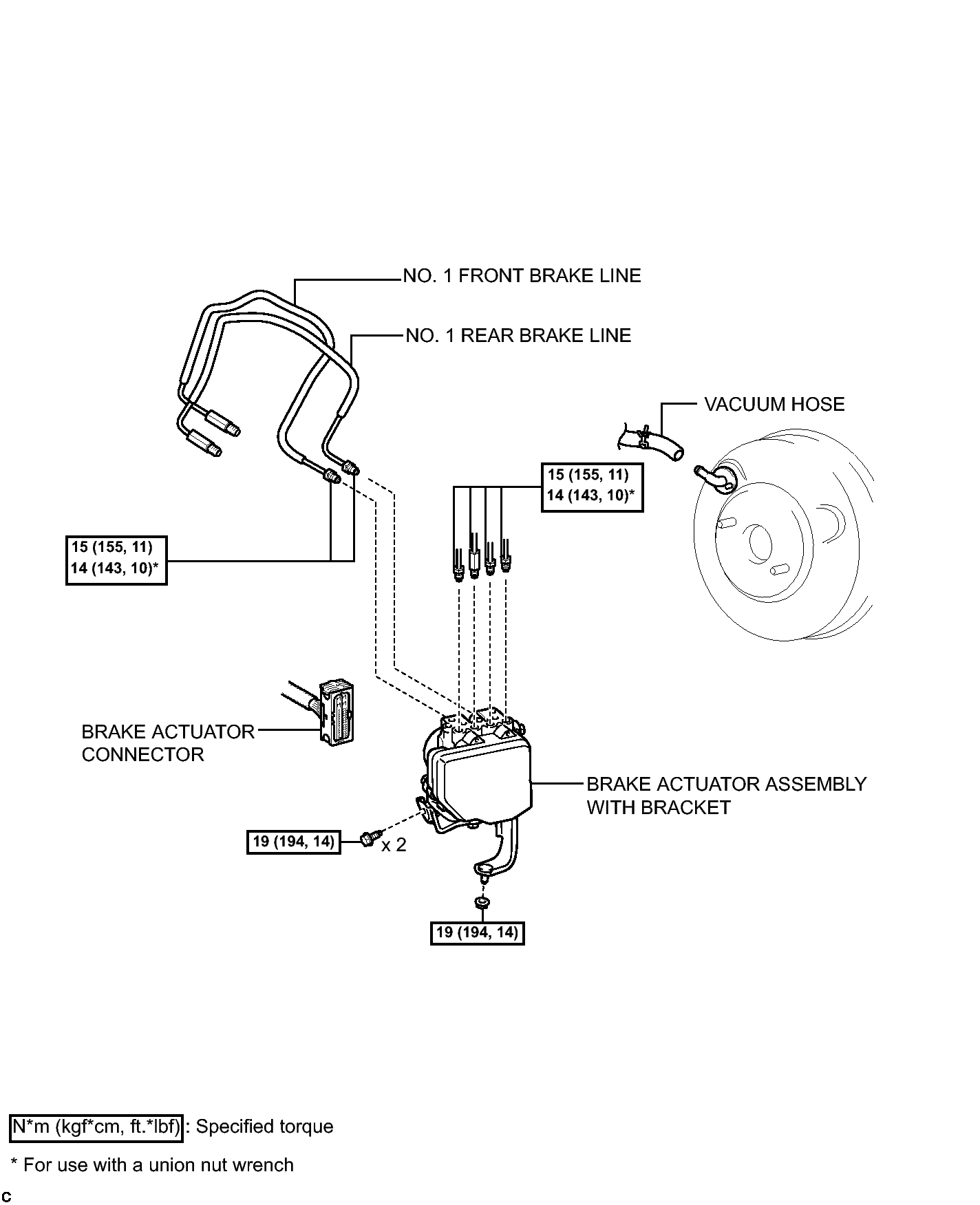

Fig 1: Brake Actuator Replacement Components With Torque Specifications (1 Of 2)
GTY135595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

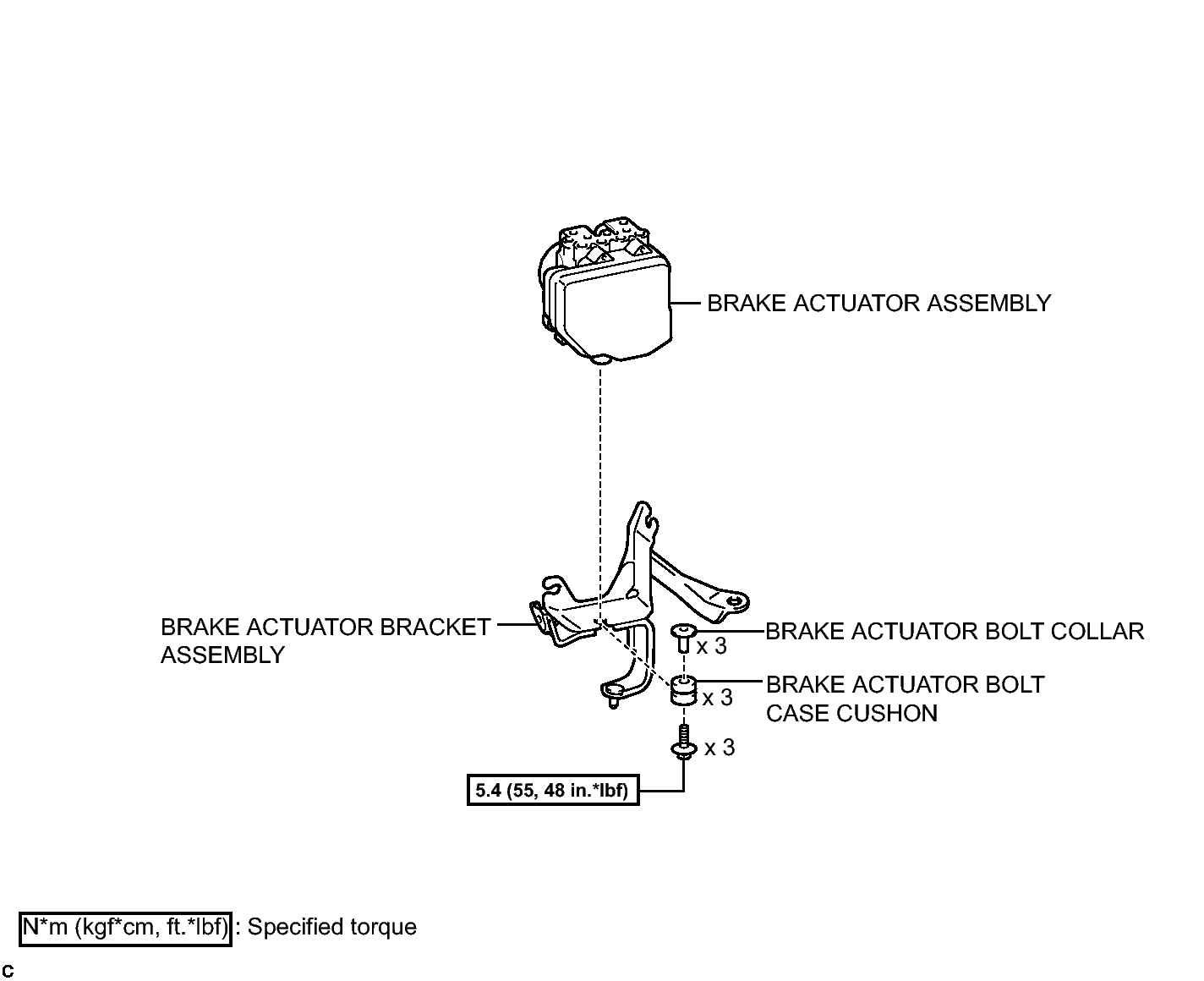

Fig 1: Brake Actuator Replacement Components With Torque Specifications (2 Of 2)
GTY121181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
