Removal (To 12/2010): Removal

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

When the TCM is replaced, the existing transaxle compensation codes must be input into the new TCM. Refer to REGISTRATION - Step 2 .

  1. REMOVE COOL AIR INTAKE DUCT SEAL  . Refer to REMOVAL - Step 15
  2. REMOVE BATTERY
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

  3. REMOVE NO. 2 AIR CLEANER INLET  . Refer to REMOVAL - Step 21
  4. REMOVE NO. 1 AIR CLEANER INLET  . Refer to REMOVAL - Step 24
  5. REMOVE INTAKE AIR RESONATOR SUB-ASSEMBLY  . Refer to REMOVAL - Step 25
  6. REMOVE TCM

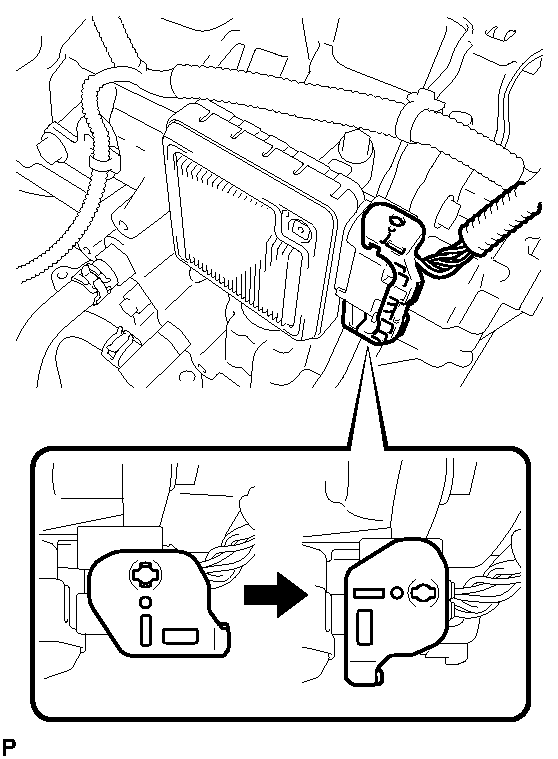

    1. Turn the lock lever and disconnect the connector from the TCM.
      Fig 1: Identifying TCM
      GTY250454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

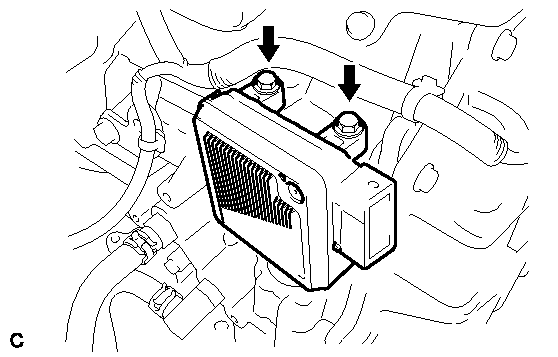

    2. Remove the 2 bolts and TCM from the transaxle.
      Fig 2: Installing TCM Of Automatic Transaxle Assembly
      GTY307948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
