Shift Lock: Notes

WARNING: This page is about a different car, the 2010 Lexus IS 350 and 2010 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

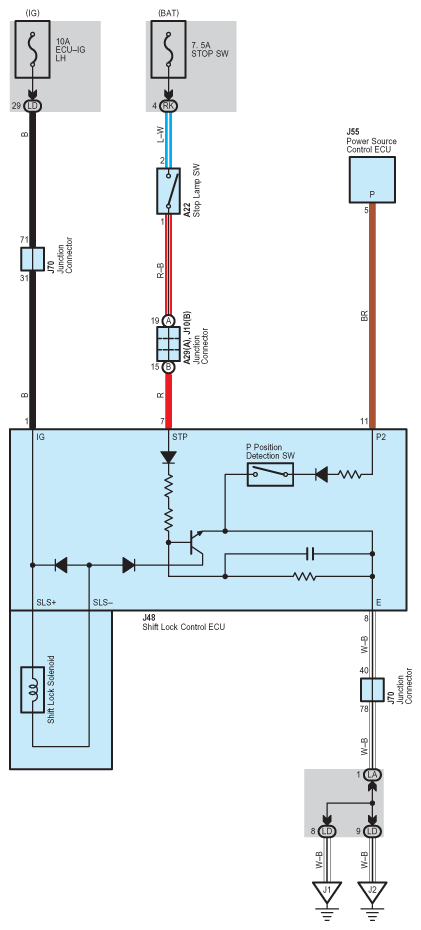

Fig 1: Shift Lock - Circuit Diagram
G07559201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
