Ignition (4GR-FSE): Notes

WARNING: This page is about a different car, the 2010 Lexus IS 350 and 2010 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

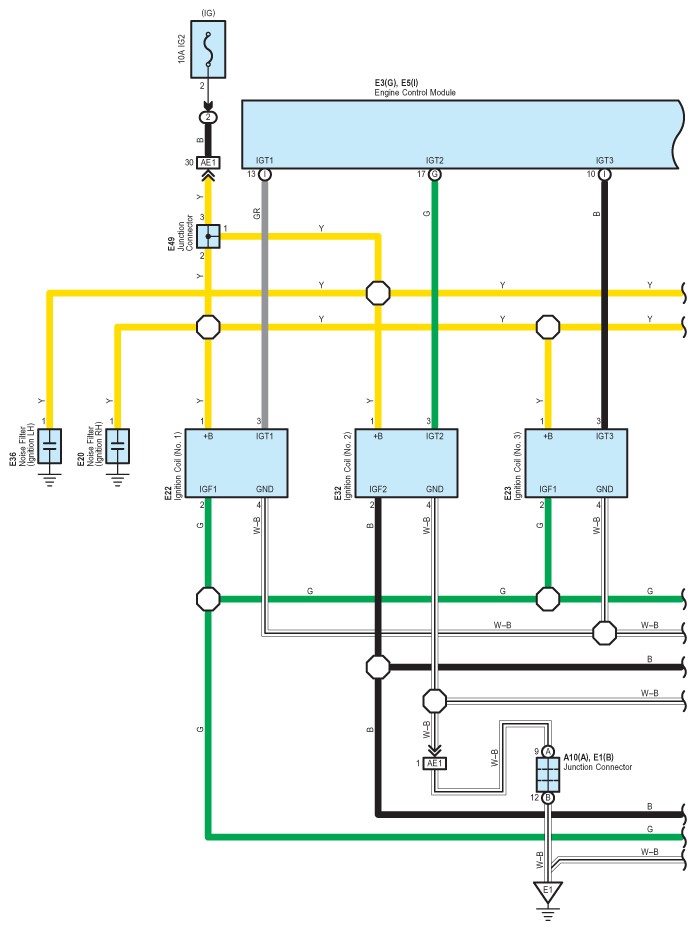

Fig 1: Ignition (4GR-FSE) - Circuit Diagram (1 Of 2)
G07558955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

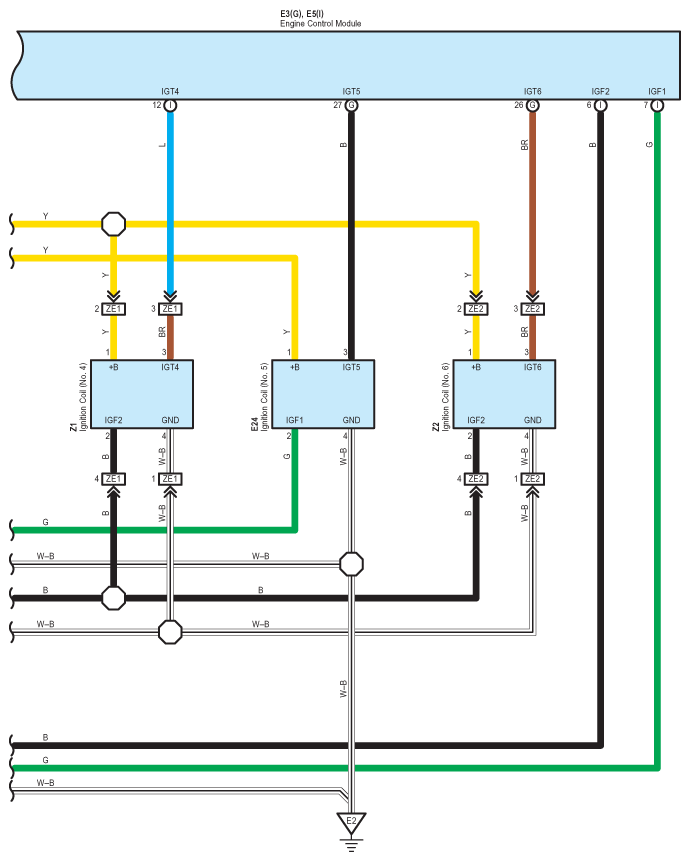

Fig 2: Ignition (4GR-FSE) - Circuit Diagram (2 Of 2)
G07558956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
