Ignition Coil And Spark Plug: Components: Illustration

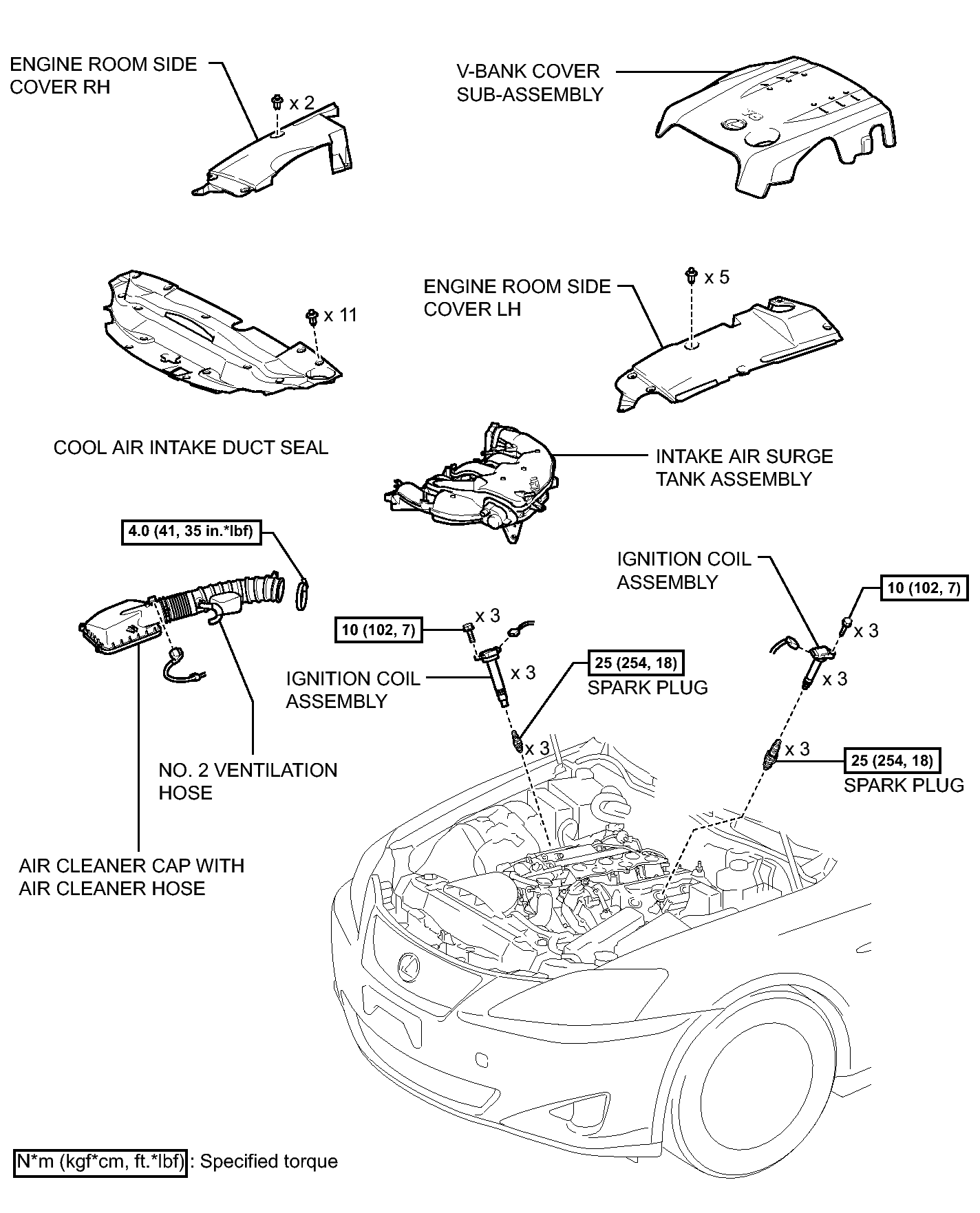

Fig 1: Identifying Ignition Coil And Spark Plug Replacement Components With Torque Specifications

GTY286305

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
