Parts Location: Illustration

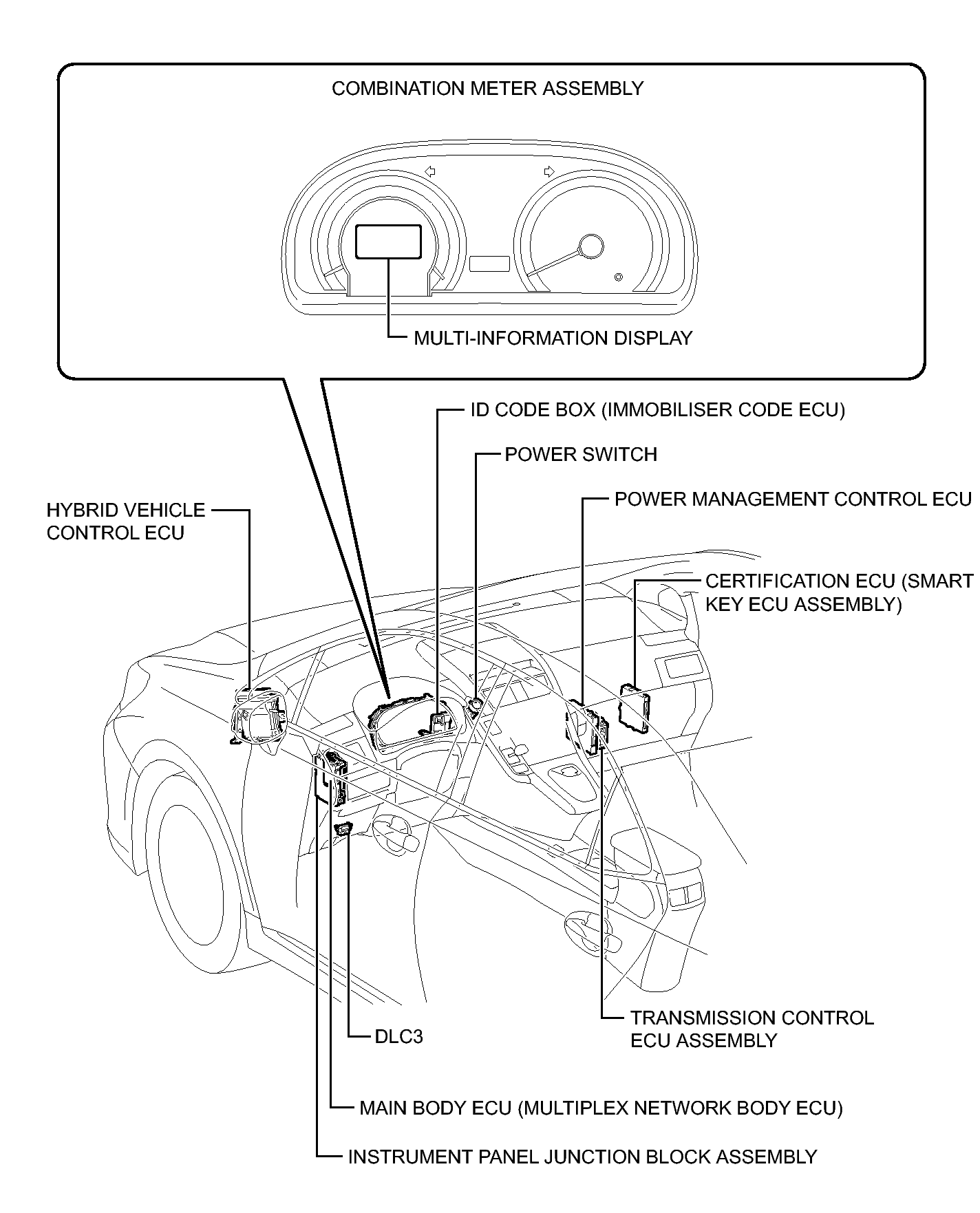

Fig 1: Identifying Smart Access System With Push-Button Start Components Location (For Entry Function) (1 Of 3)
GTY347533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

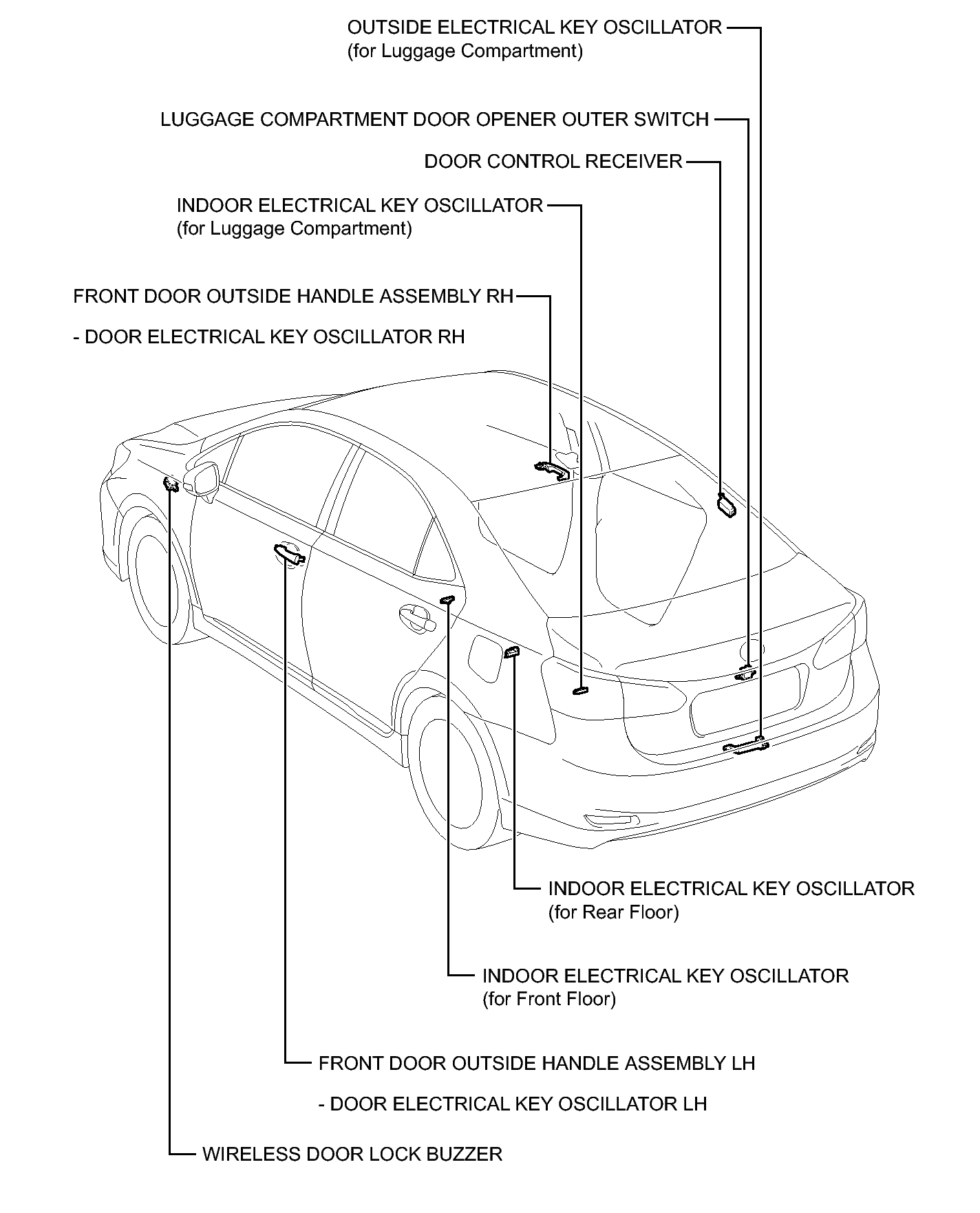

Fig 1: Identifying Smart Access System With Push-Button Start Components Location (For Entry Function) (2 Of 3)
GTY356006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

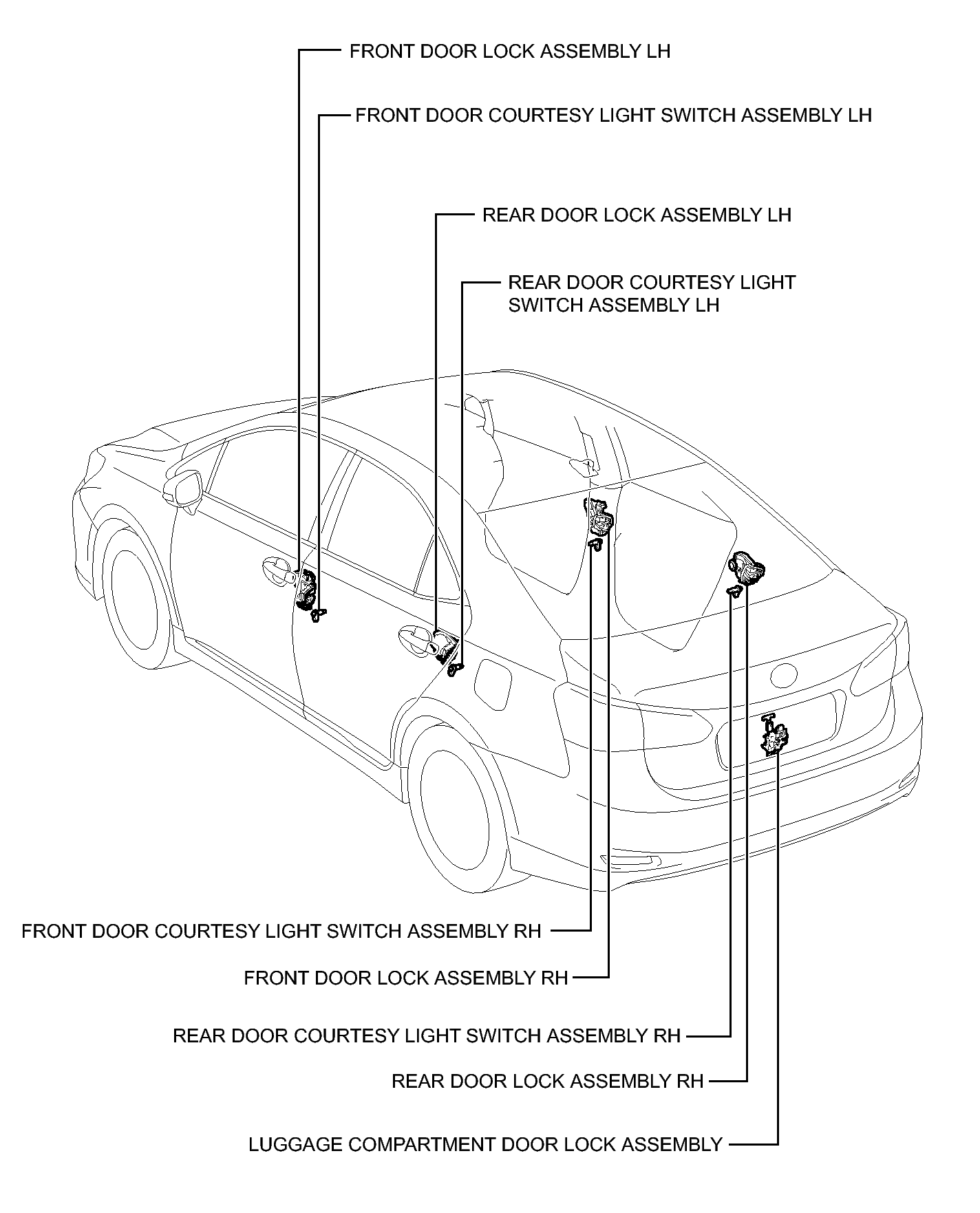

Fig 1: Identifying Smart Access System With Push-Button Start Components Location (For Entry Function) (3 Of 3)
GTY351753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
