Parts Location: Illustration

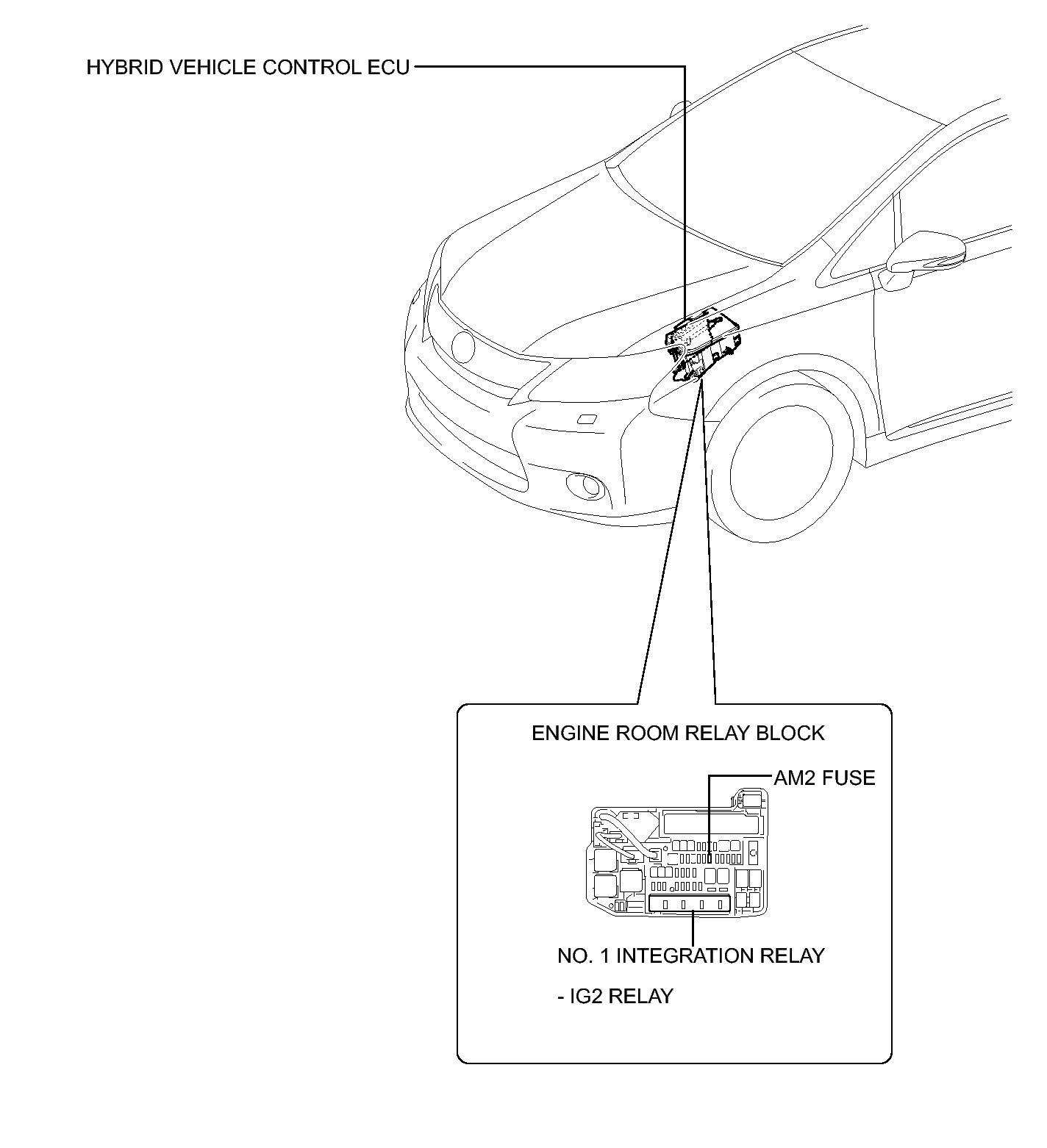

Fig 1: Identifying Smart Access System With Push-Button Start (For Start Function) (1 Of 2)
GTY268982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

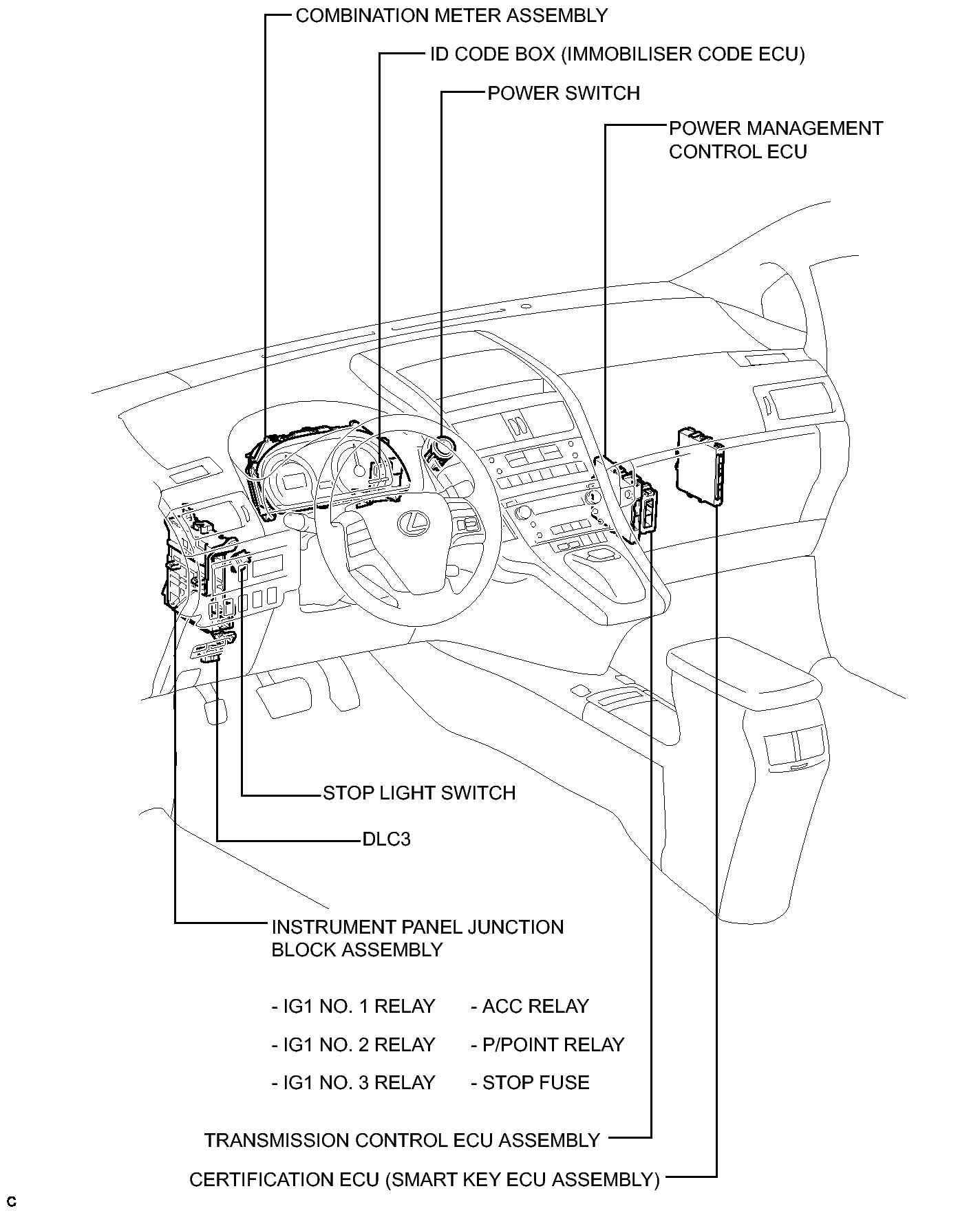

Fig 1: Identifying Smart Access System With Push-Button Start (For Start Function) (2 Of 2)
GTY254039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
