Power Source Mode does not Change to ON (IG and ACC): Wiring Diagram

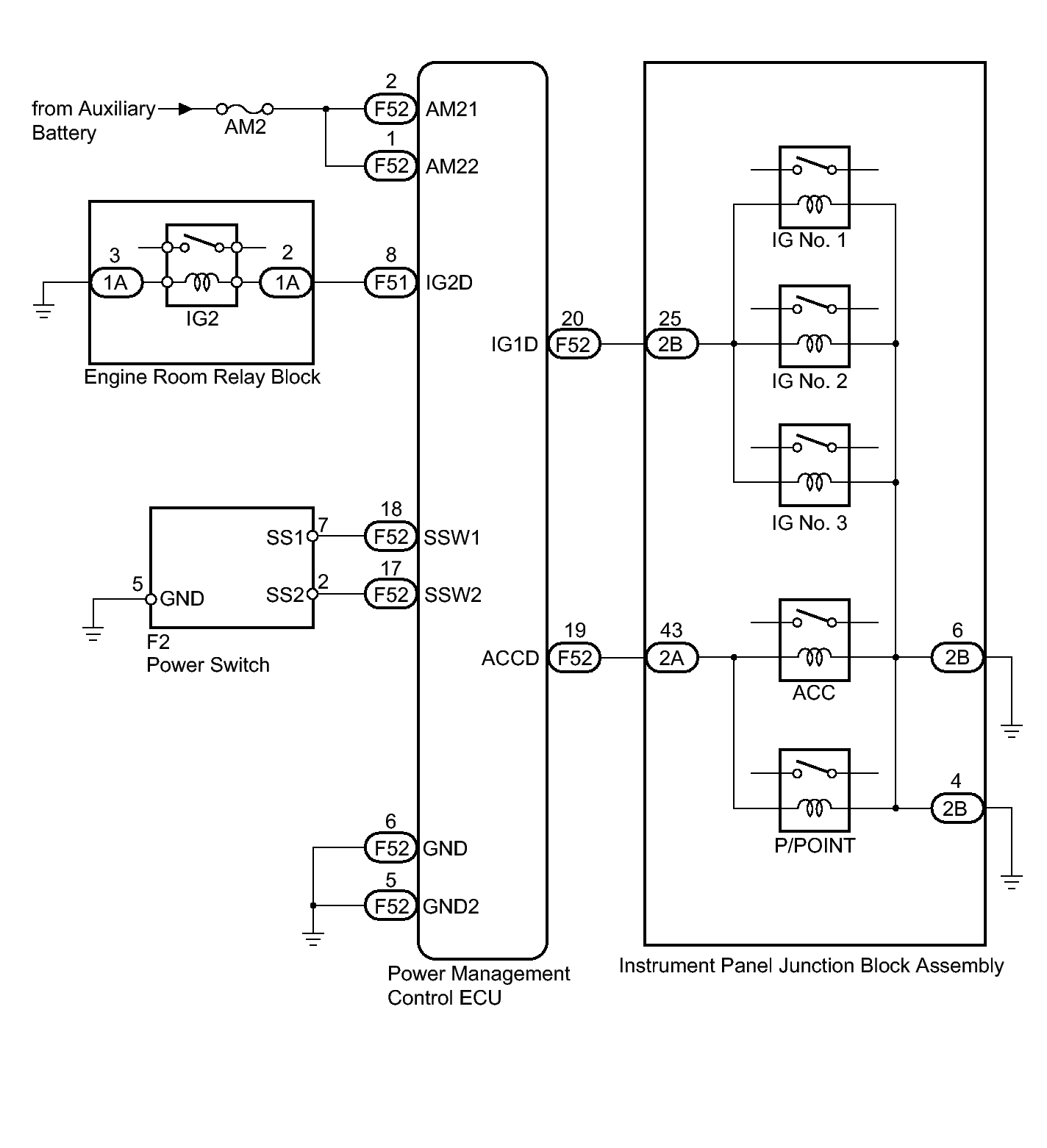

Fig 1: Identifying IG and ACC Wiring Diagram

GTY281722

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
