DTC B2286: Runnable Signal Malfunction: Wiring Diagram

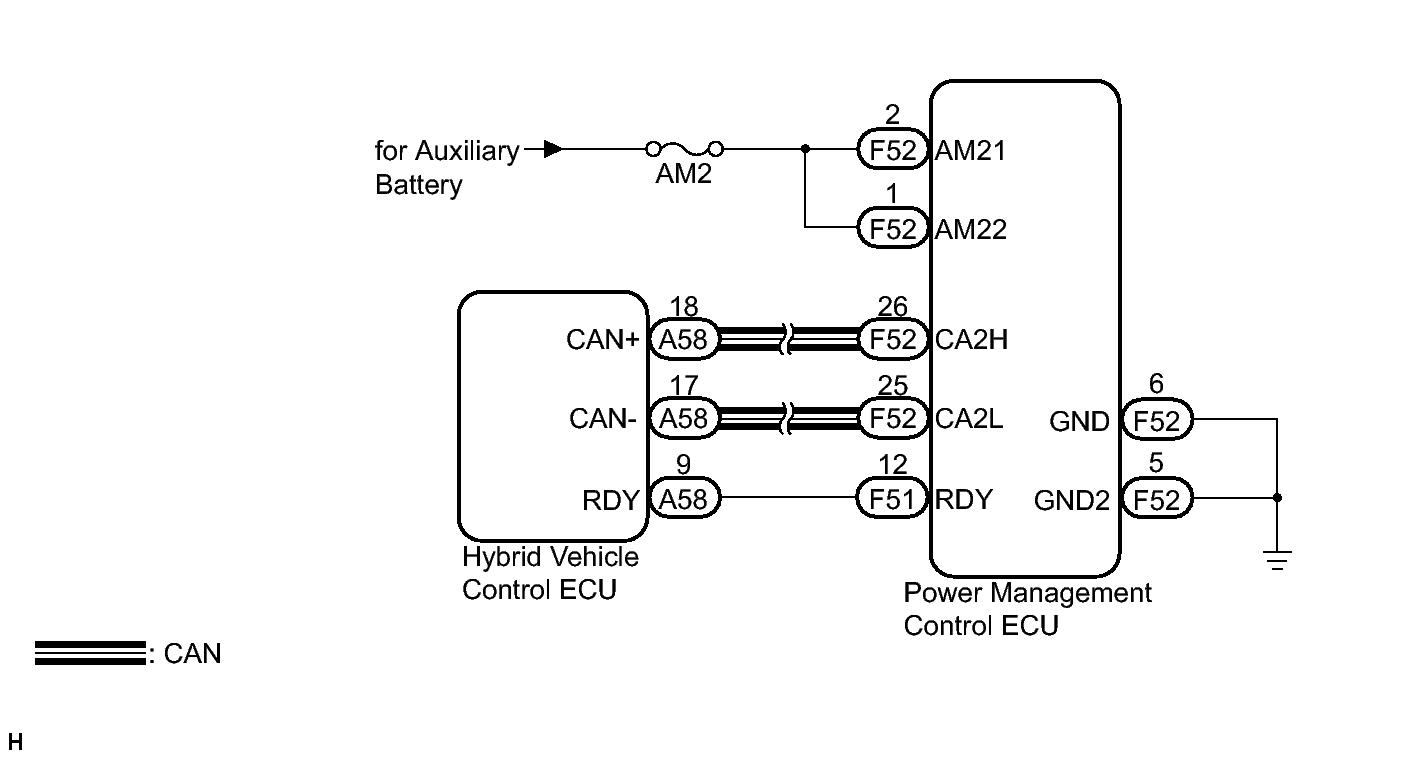

Fig 1: Identifying Runnable Signal Malfunction Wiring Diagram

GTY261168

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
