DTC B2282: Vehicle Speed Signal Malfunction: Wiring Diagram

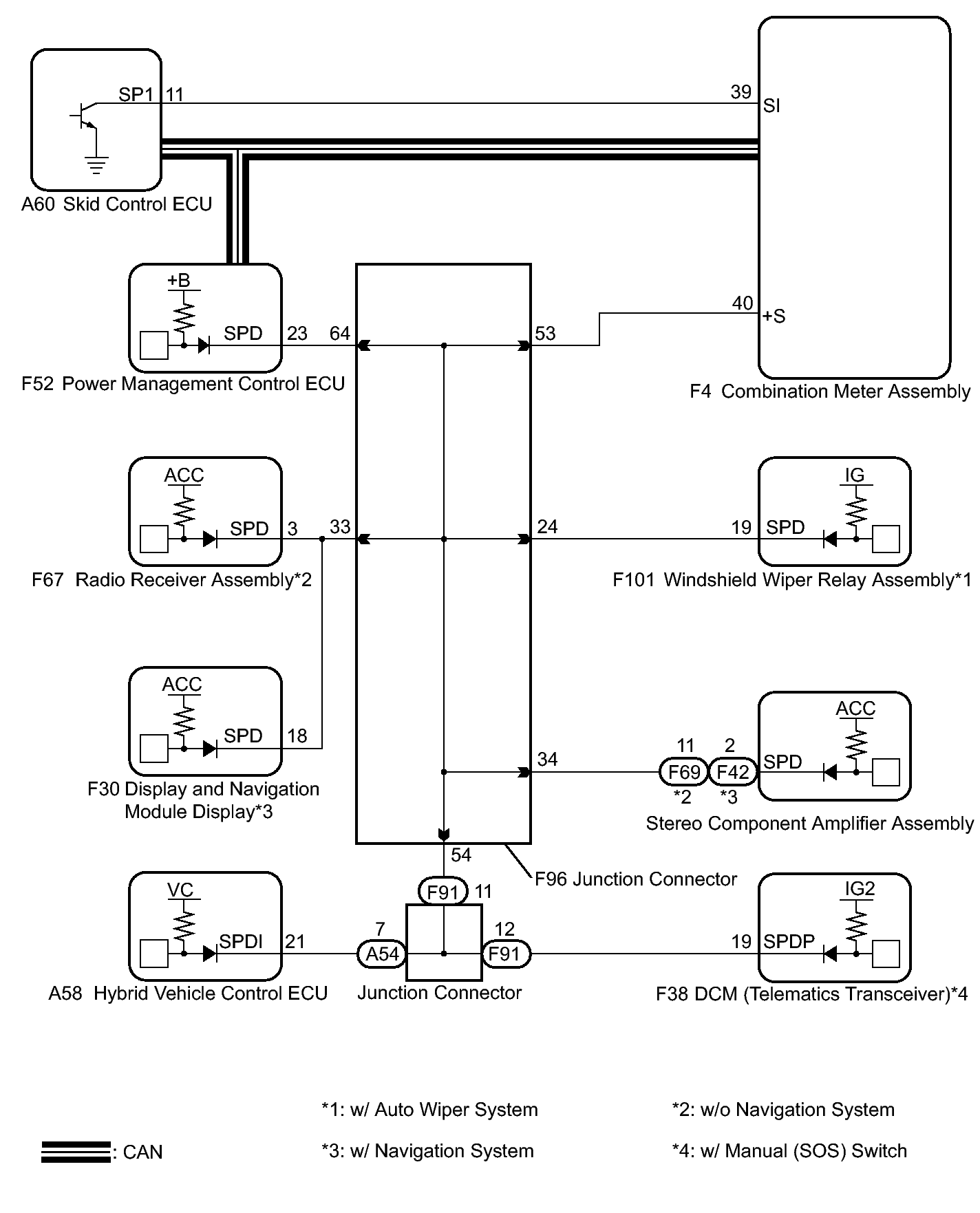

Fig 1: Identifying Vehicle Speed Signal Malfunction Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• A voltage of 12 V or 5 V is output from each ECU and then input to the combination meter assembly. The signal is changed to a pulse signal at the transistor in the combination meter assembly. Each ECU controls the respective system based on the pulse signal.
• If a short occurs in an ECU, all systems in the diagram above will not operate normally.
