DTC B2275: STSW Monitor Malfunction: Wiring Diagram

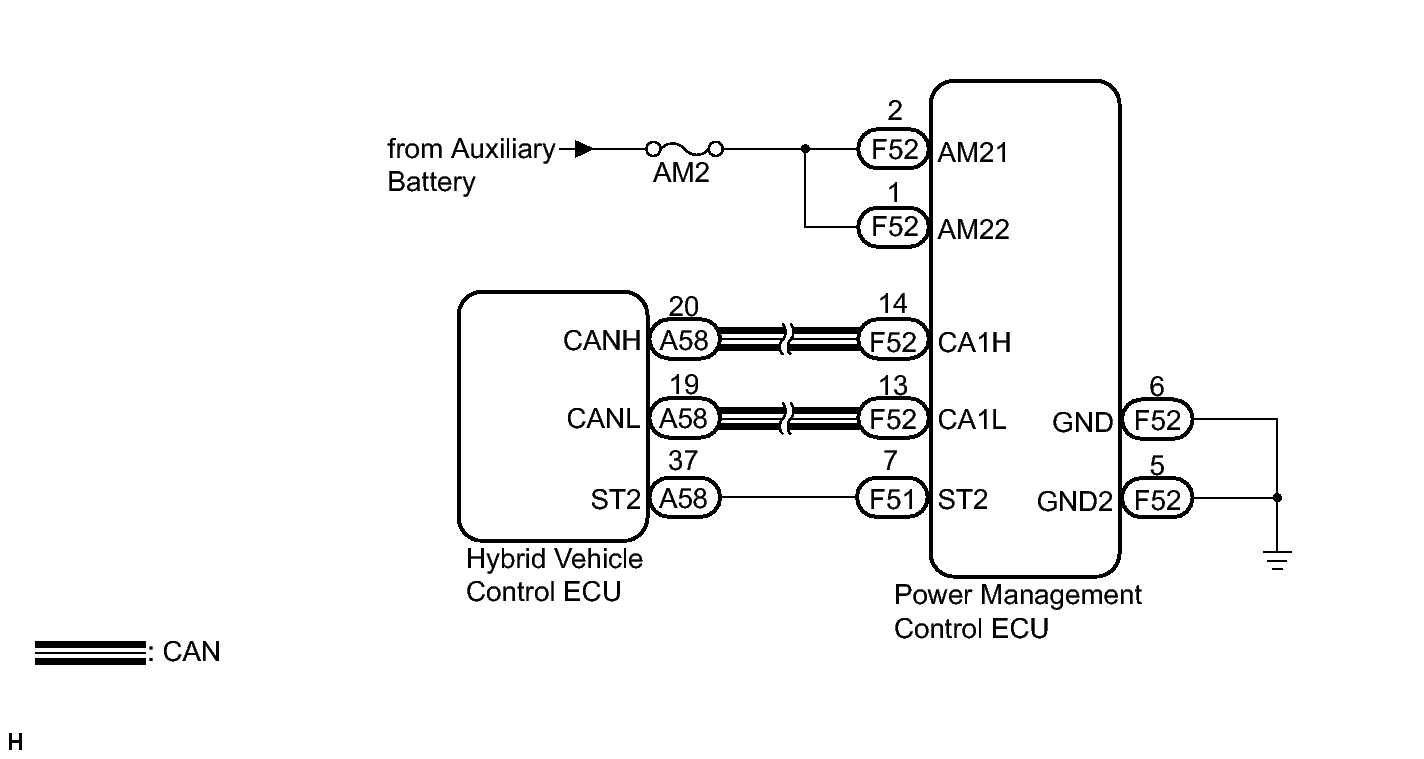

Fig 1: Identifying STSW Monitor Malfunction Wiring Diagram

GTY272484

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
