DTC B2271: Ignition Hold Monitor Malfunction: Wiring Diagram

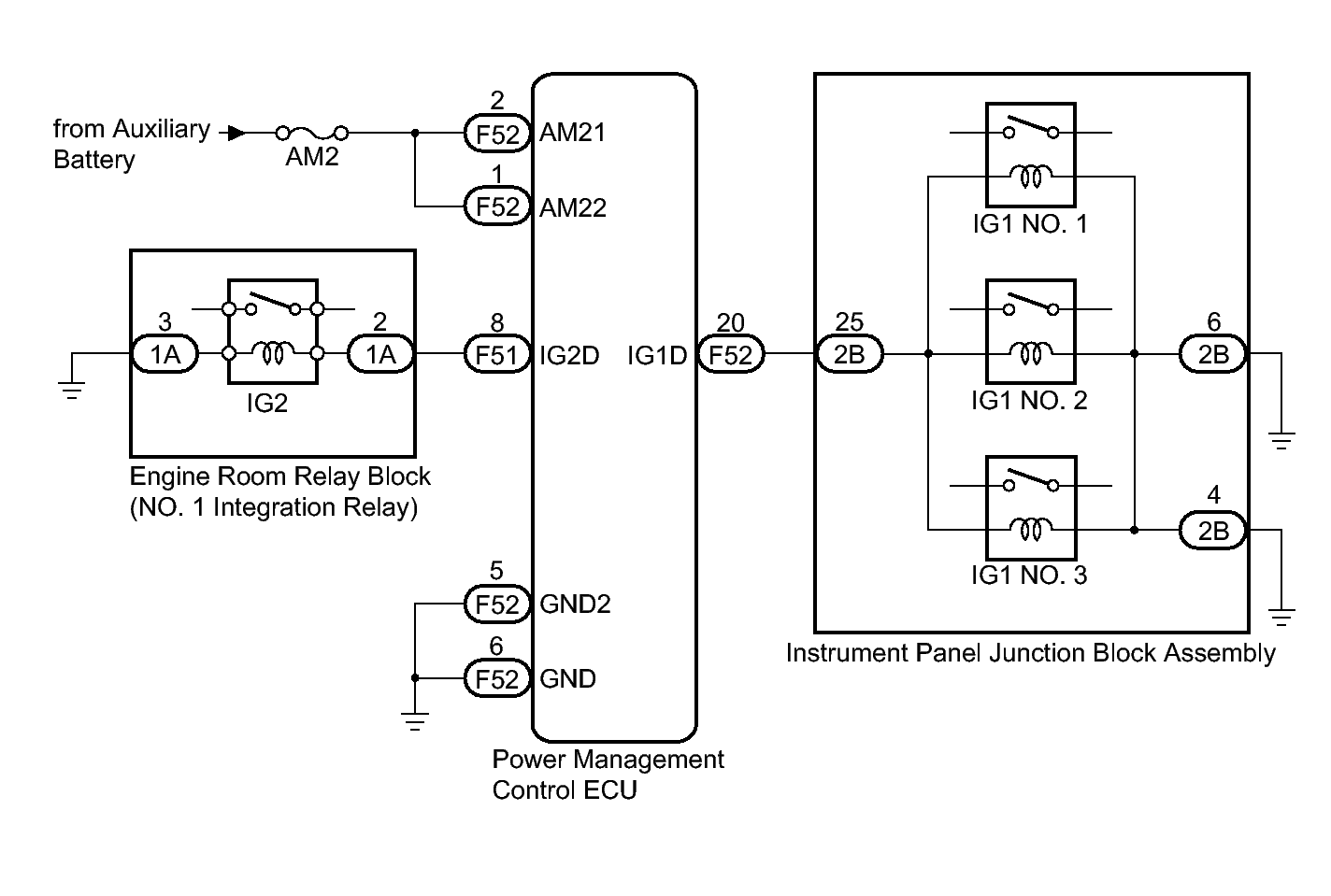

Fig 1: Identifying Power Management Control ECU

GTY286221

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
