DTC B27A8: Open in Outside Luggage Compartment Electrical Key Antenna Circuit: Wiring Diagram

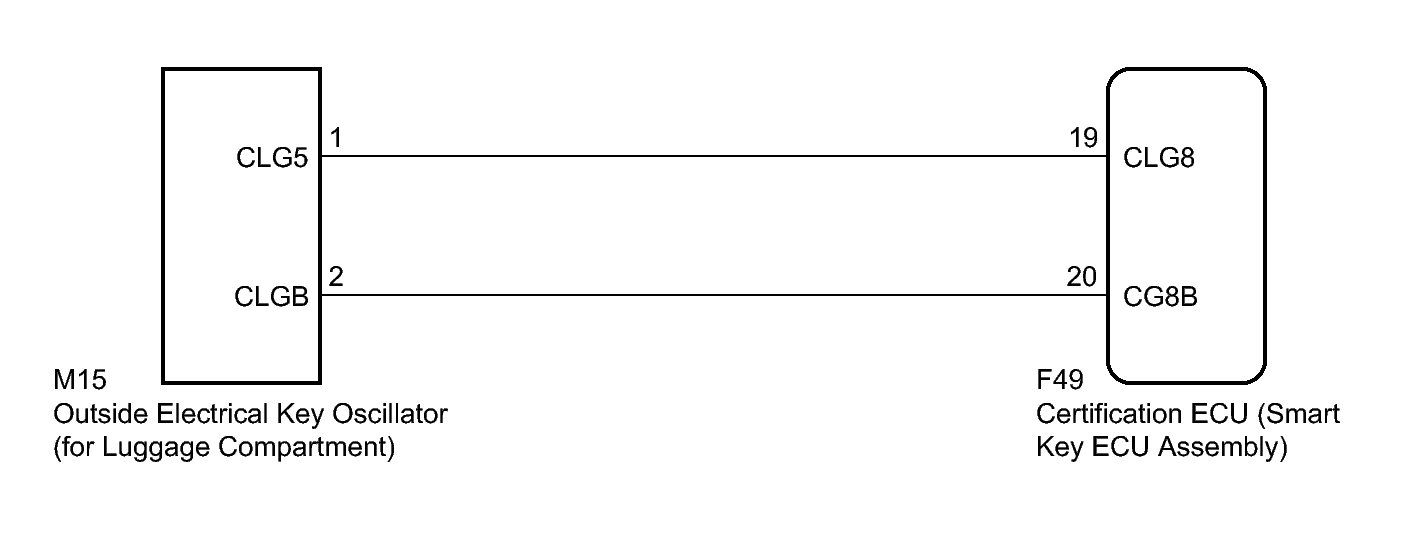

Fig 1: Identifying Certification ECU Wiring Diagram (Smart Key ECU Assembly)
GTY254441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
