DTC B27A2: Open in Front Passenger Side Electrical Antenna Circuit: Wiring Diagram

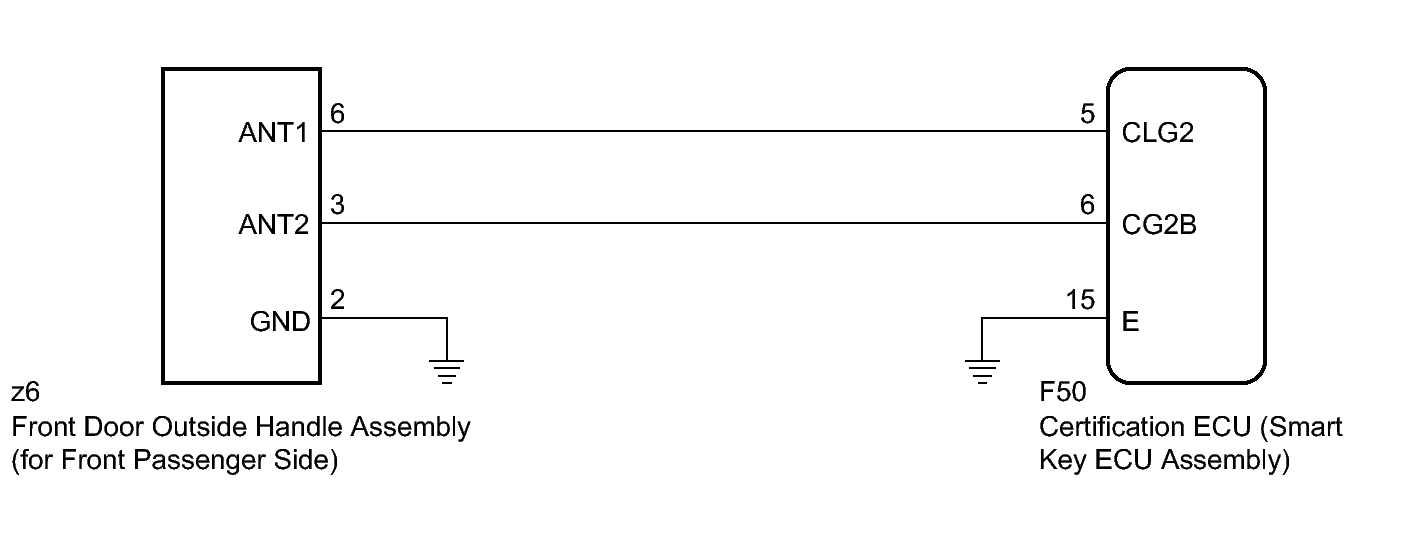

Fig 1: Identifying Certification ECU Wiring Diagram (Smart Key ECU Assembly)
GTY260252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
