Display does not Dim when Light Control Switch is Turned ON: Wiring Diagram

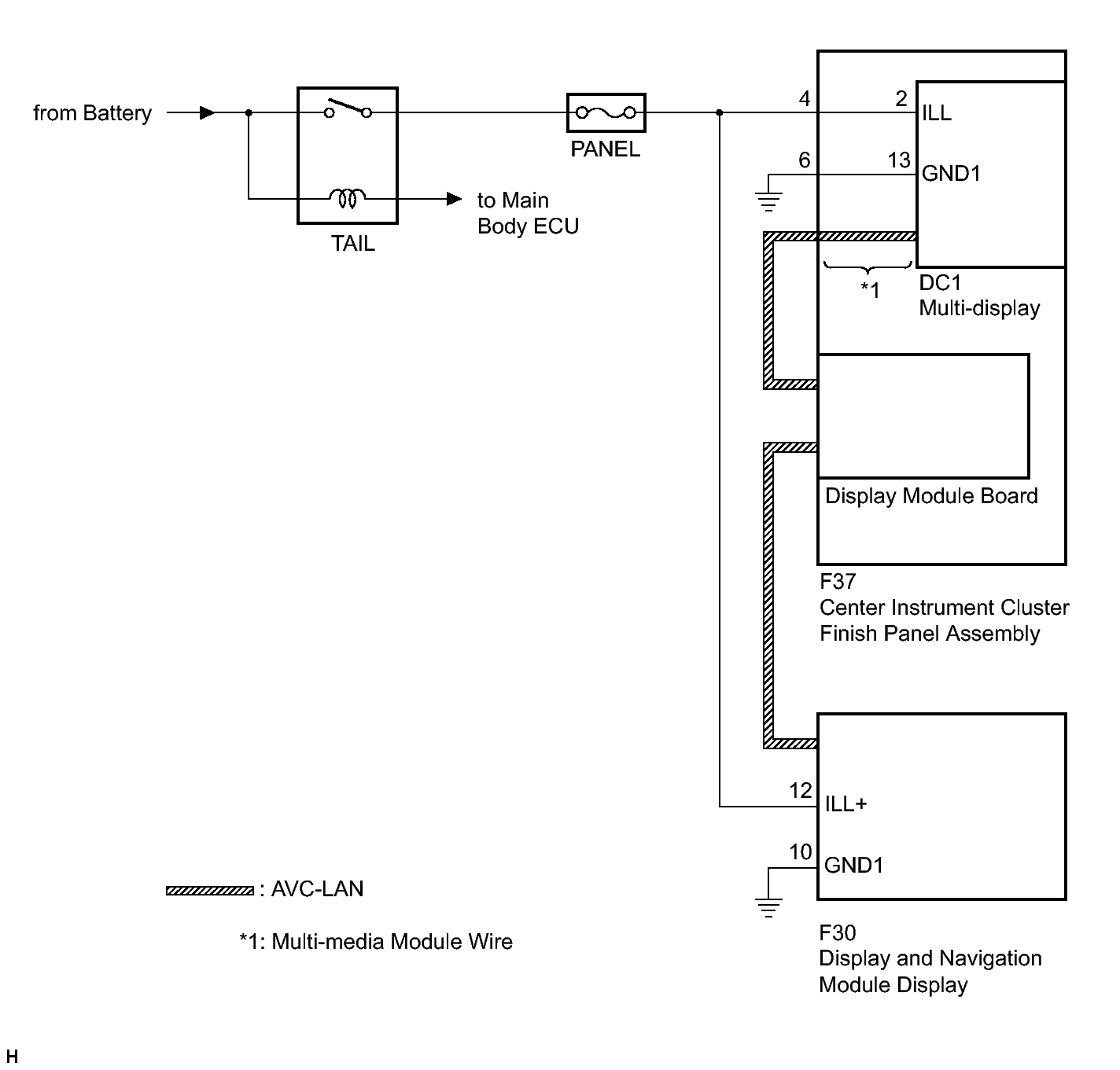

Fig 1: DC1 Multi - Display - Wiring Diagram

GTY279990

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
