Transfer Assembly: Removal: Removal

  1. REMOVE AUTOMATIC TRANSMISSION WITH TRANSFER
    1. Remove the automatic transmission with transfer. Refer to REMOVAL .
  2. REMOVE TRANSFER ASSEMBLY
    1. Remove the 8 bolts.

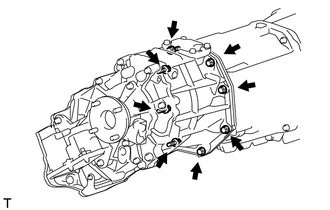

      Fig 1: Locating Transfer Assembly Bolts
      GTY236649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the transfer from the transmission.
