Power Outlet (12V): Notes

WARNING: This page is about a different car, the 2010 Lexus GX 460. However, it is still accessible from the selected car via links, so may be relevant.

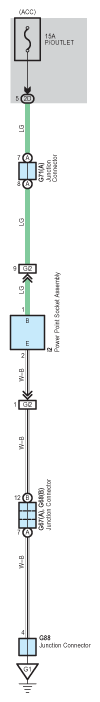

Fig 1: Power Outlet (12V) - Circuit Diagram
G07579541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
