Dynamic Radar Cruise Control and Lane Departure Alert: Notes

WARNING: This page is about a different car, the 2010 Lexus GX 460. However, it is still accessible from the selected car via links, so may be relevant.

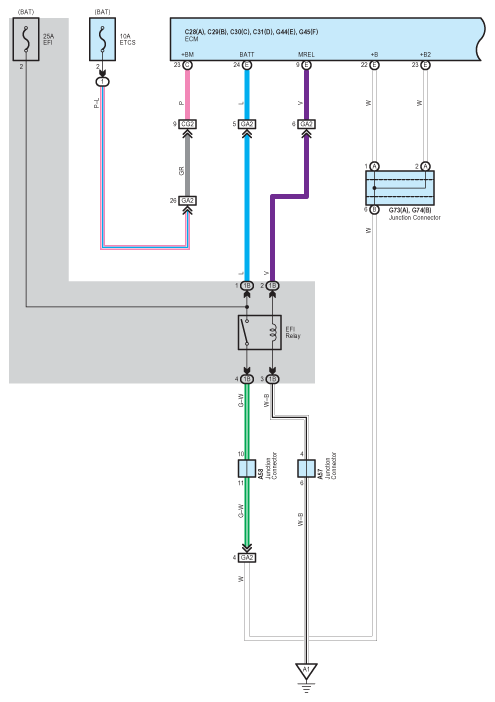

Fig 1: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (1 Of 22)

G07579412

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

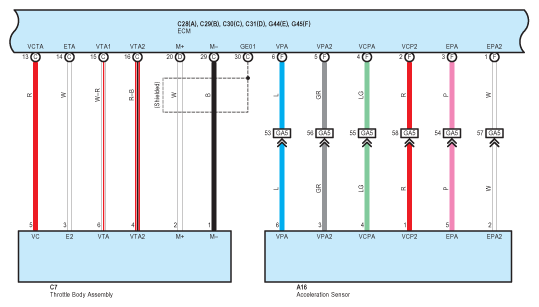

Fig 2: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (2 Of 22)

G07579413

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

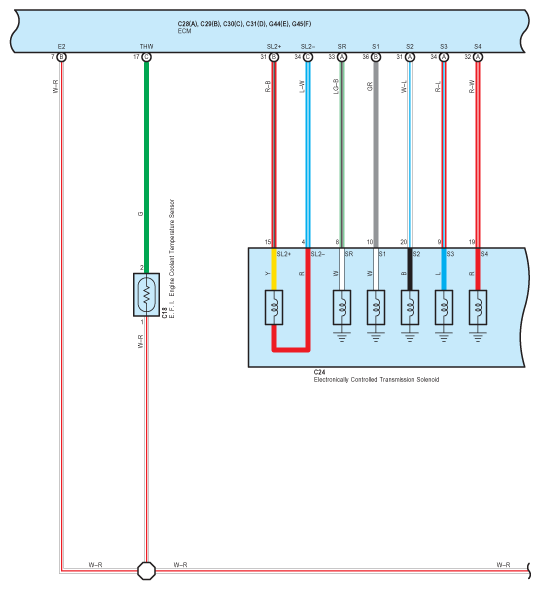

Fig 3: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (3 Of 22)

G07579414

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

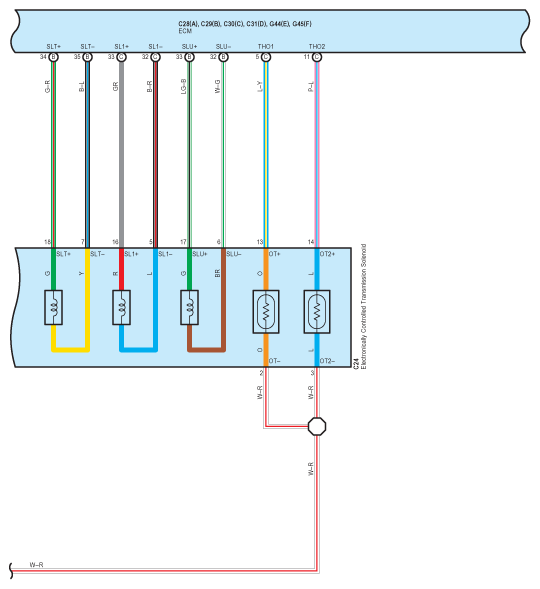

Fig 4: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (4 Of 22)

G07579415

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

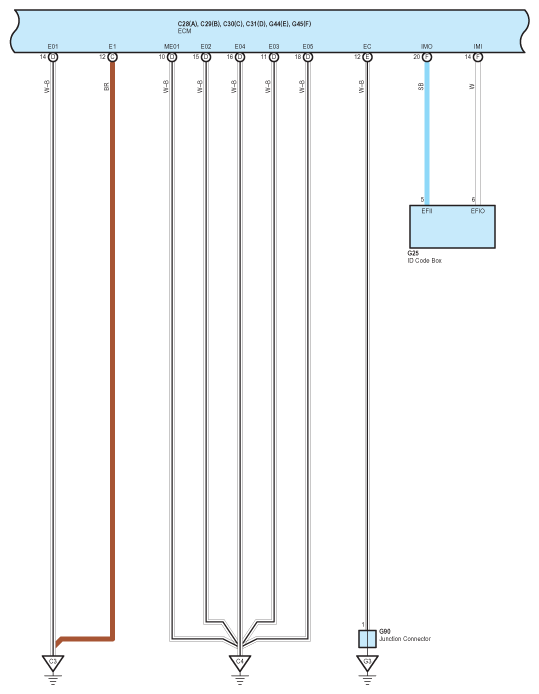

Fig 5: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (5 Of 22)

G07579416

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

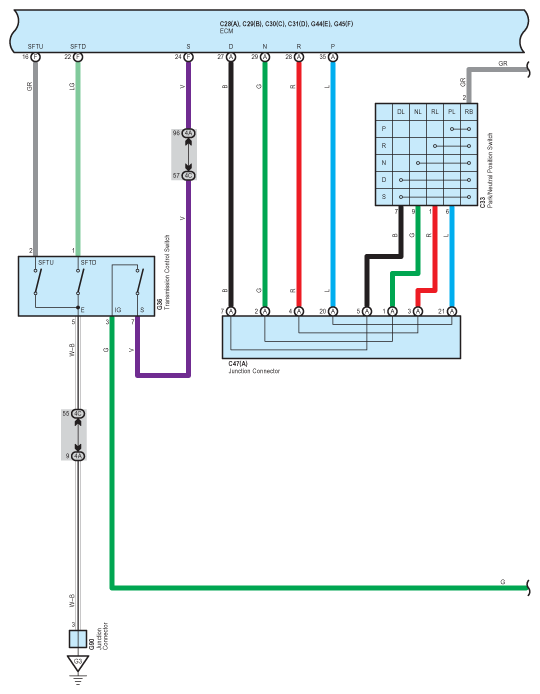

Fig 6: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (6 Of 22)

G07579417

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

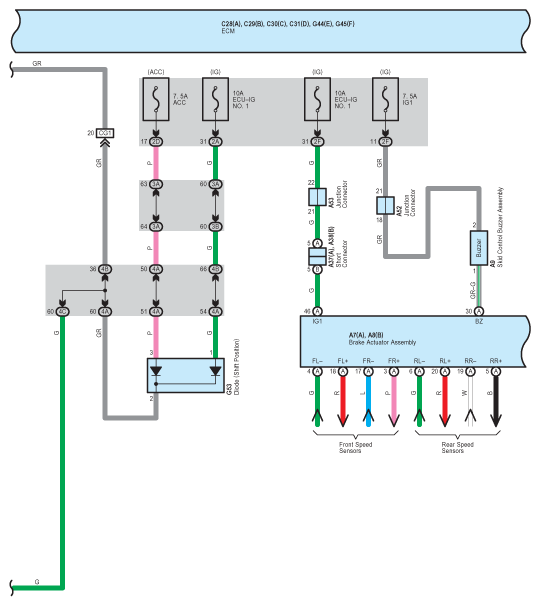

Fig 7: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (7 Of 22)

G07579418

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

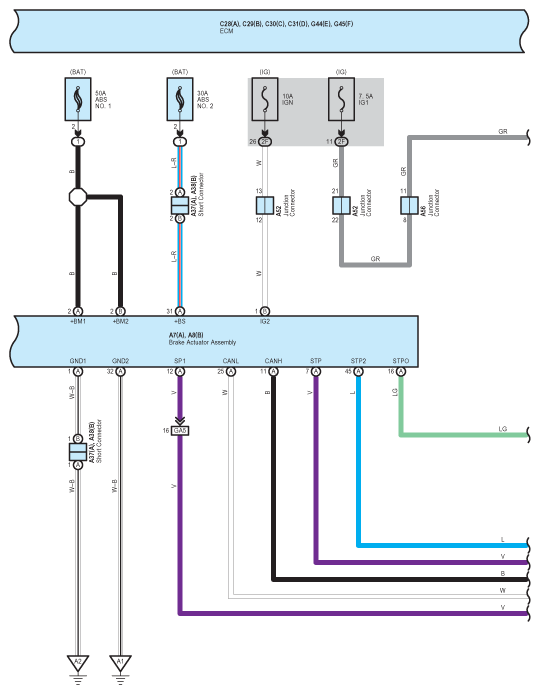

Fig 8: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (8 Of 22)

G07579419

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

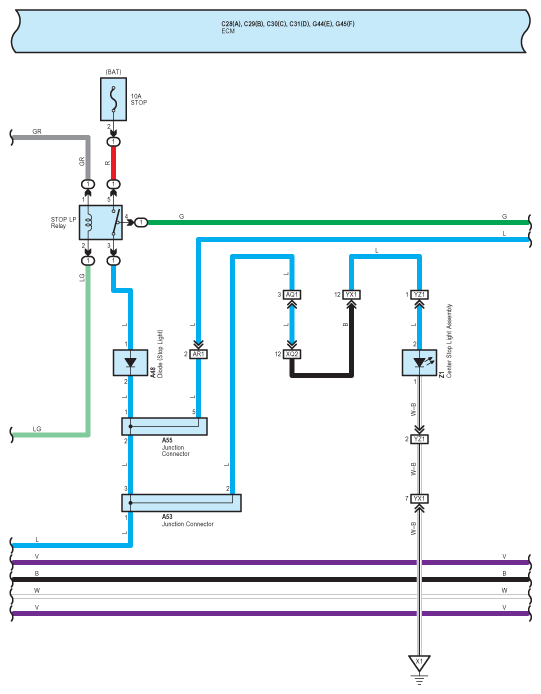

Fig 9: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (9 Of 22)

G07579420

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

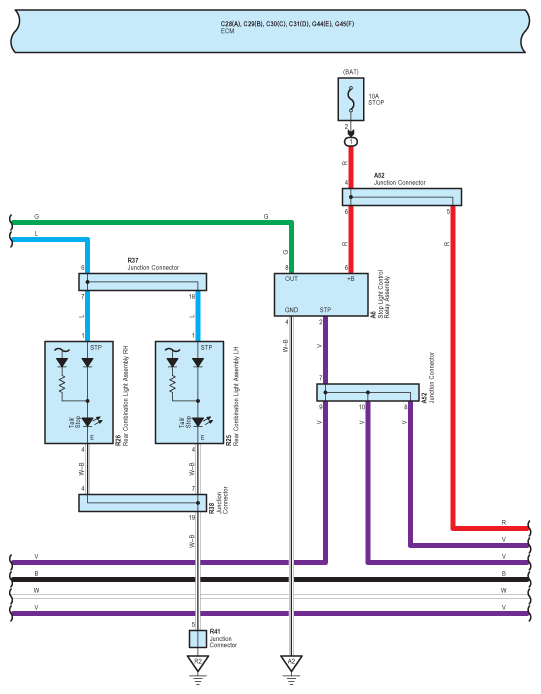

Fig 10: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (10 Of 22)

G07579421

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

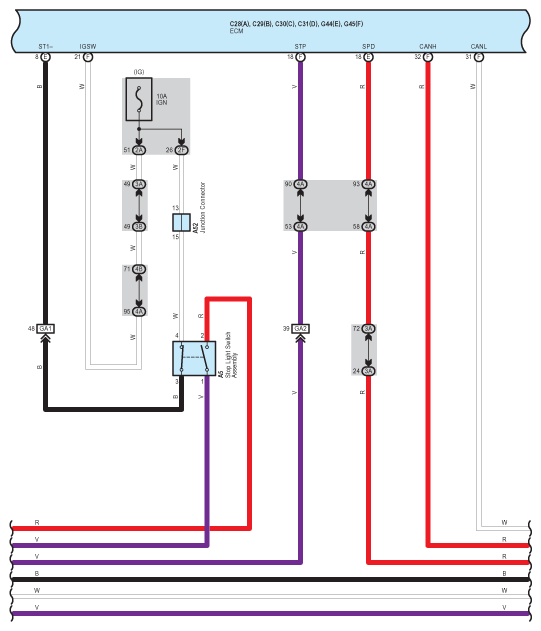

Fig 11: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (11 Of 22)

G07579422

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

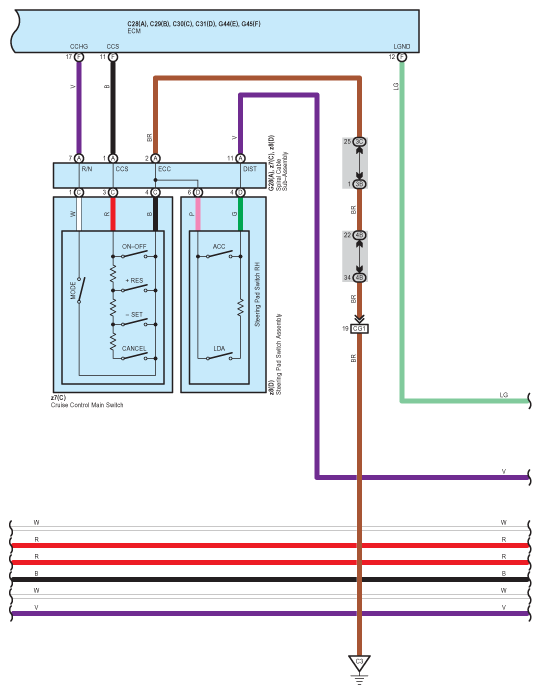

Fig 12: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (12 Of 22)

G07579423

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

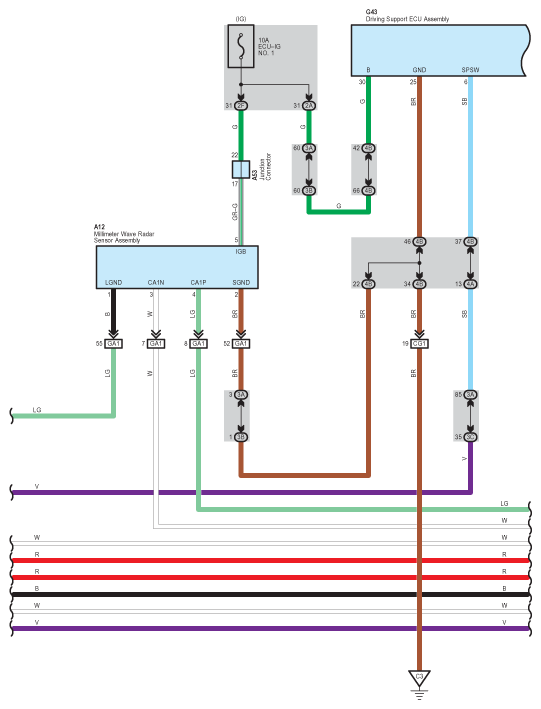

Fig 13: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (13 Of 22)

G07579424

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

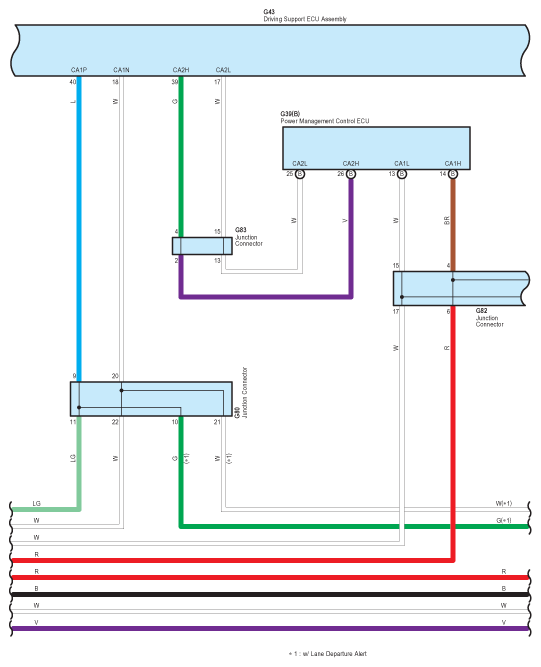

Fig 14: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (14 Of 22)

G07579425

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

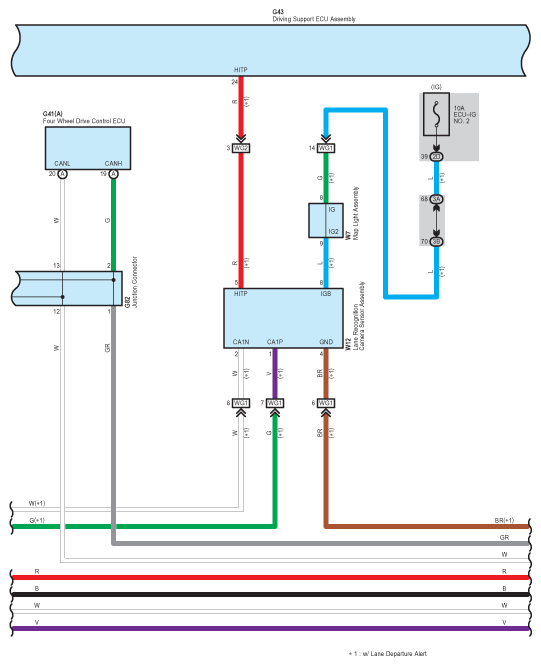

Fig 15: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (15 Of 22)

G07579426

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

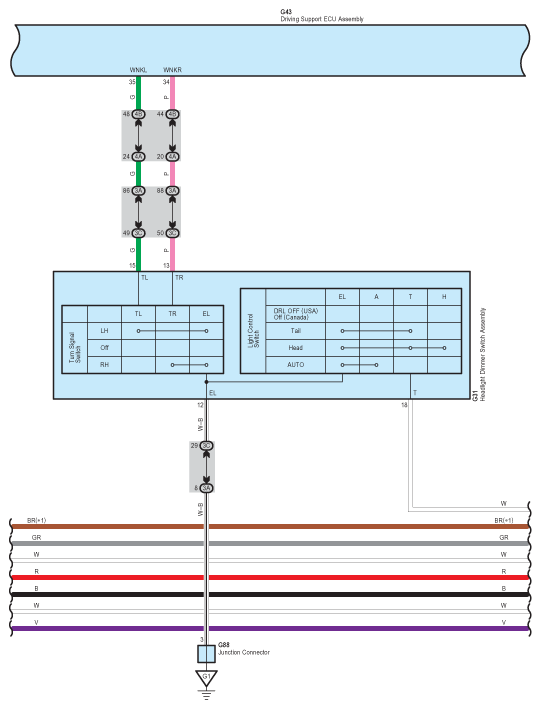

Fig 16: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (16 Of 22)

G07579427

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

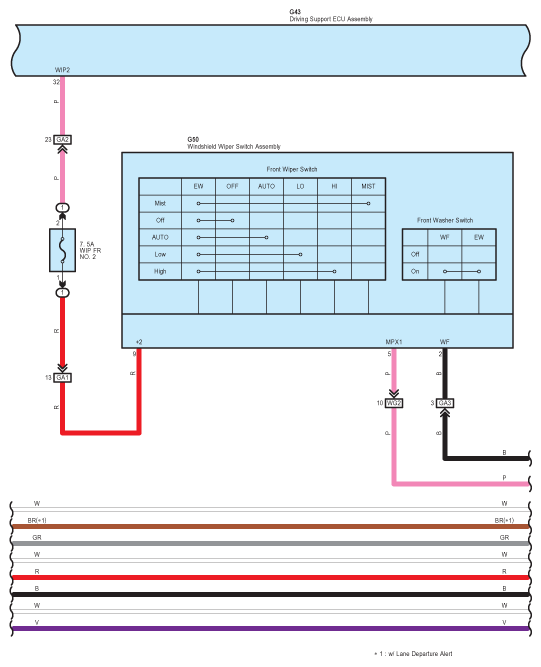

Fig 17: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (17 Of 22)

G07579428

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

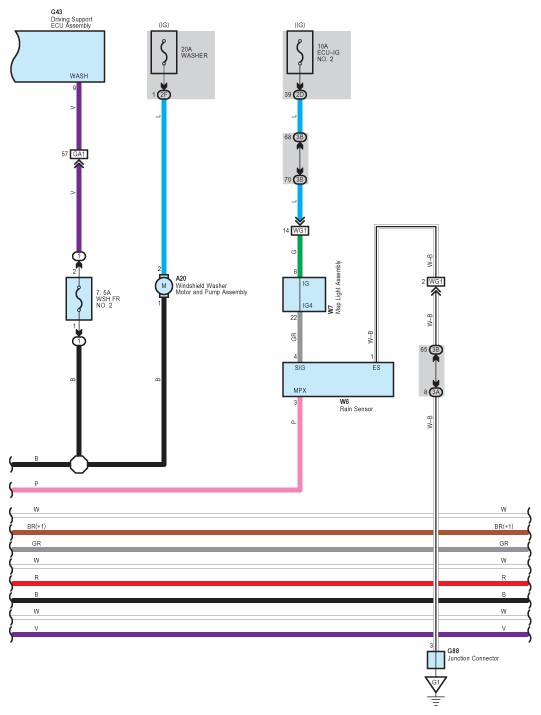

Fig 18: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (18 Of 22)

G07579429

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

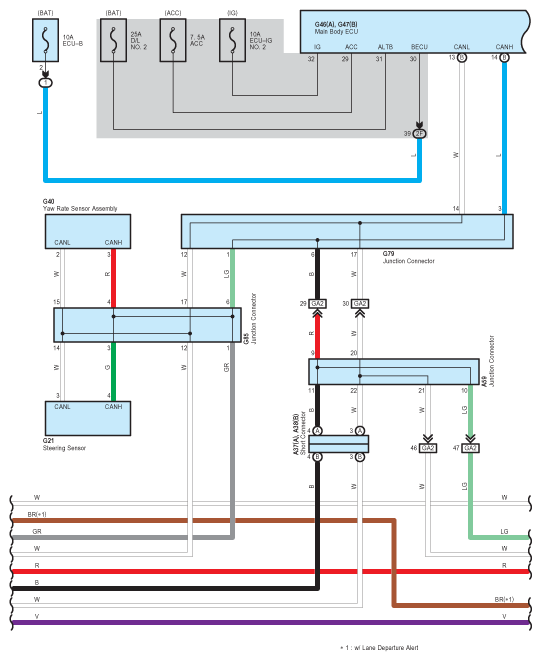

Fig 19: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (19 Of 22)

G07579430

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

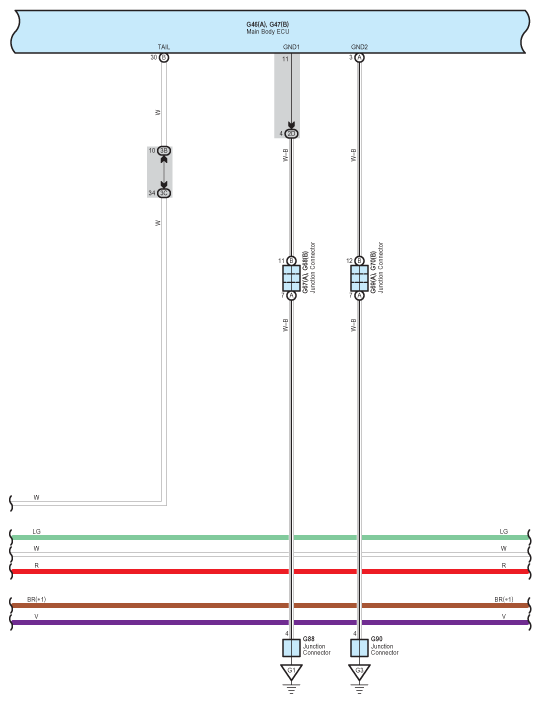

Fig 20: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (20 Of 22)

G07579431

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

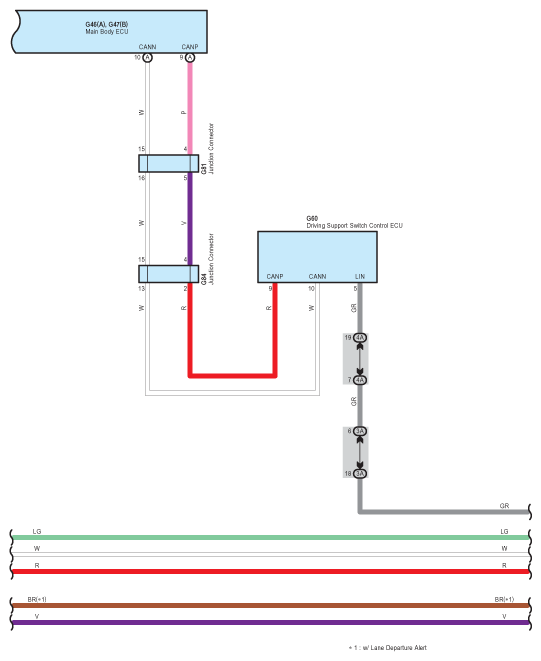

Fig 21: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (21 Of 22)

G07579432

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

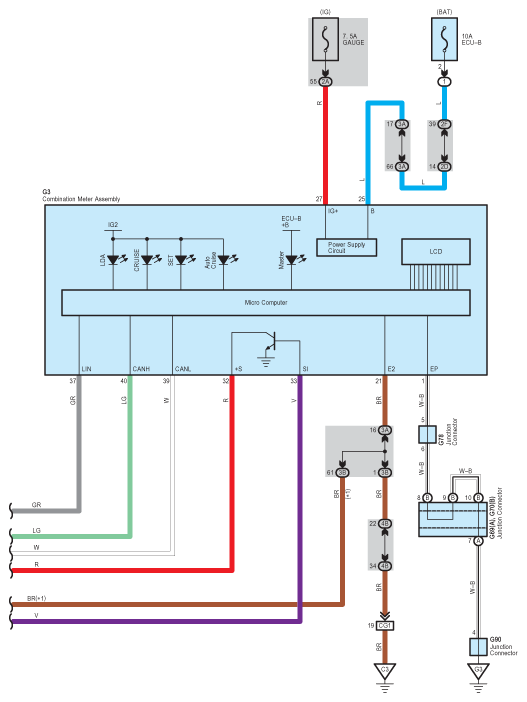

Fig 22: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (22 Of 22)

G07579433

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
