Center Differential Lock

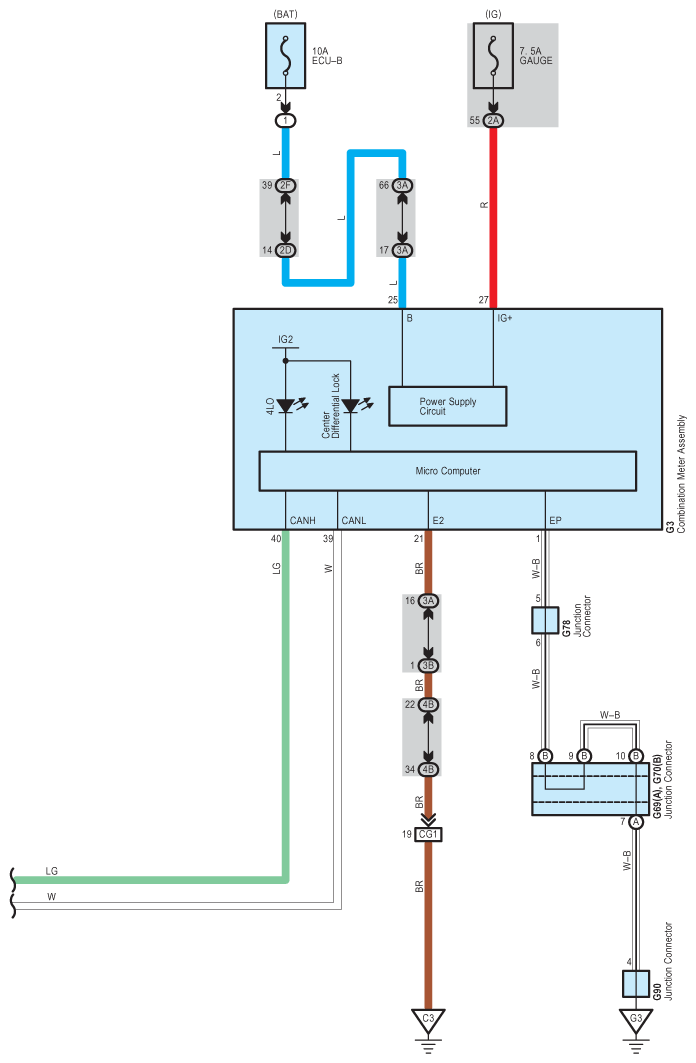

Fig 1: Center Differential Lock - Circuit Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Center Differential Lock - Circuit Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

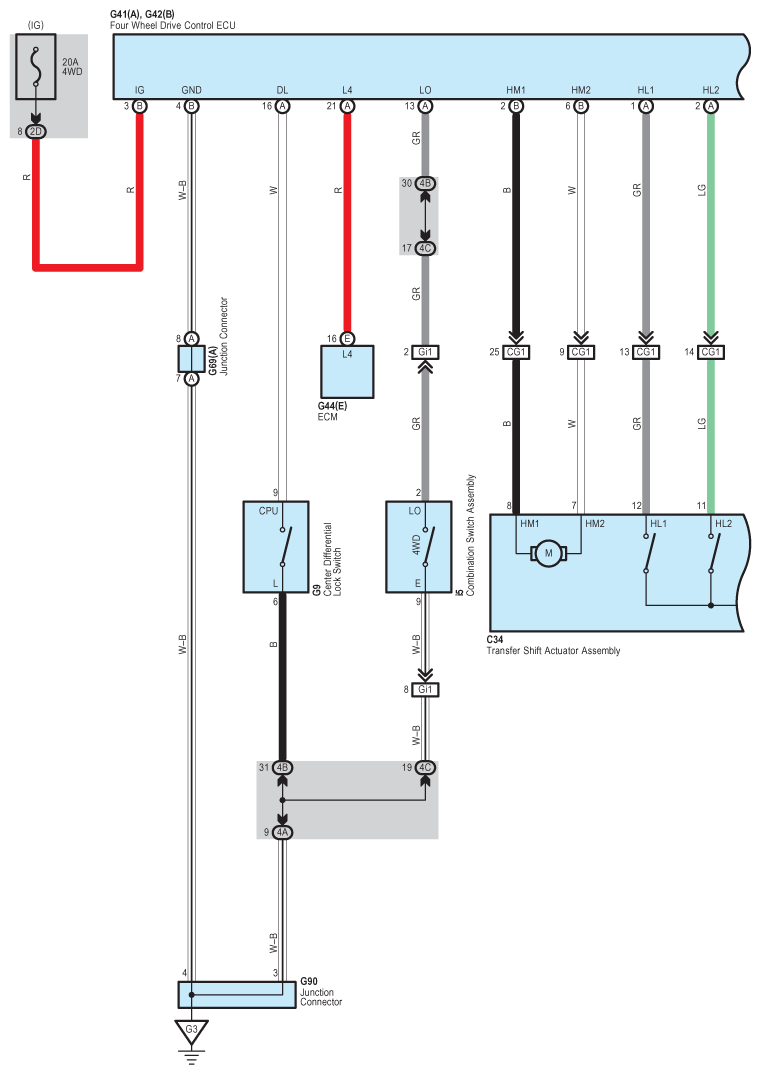

Fig 3: Center Differential Lock - Circuit Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

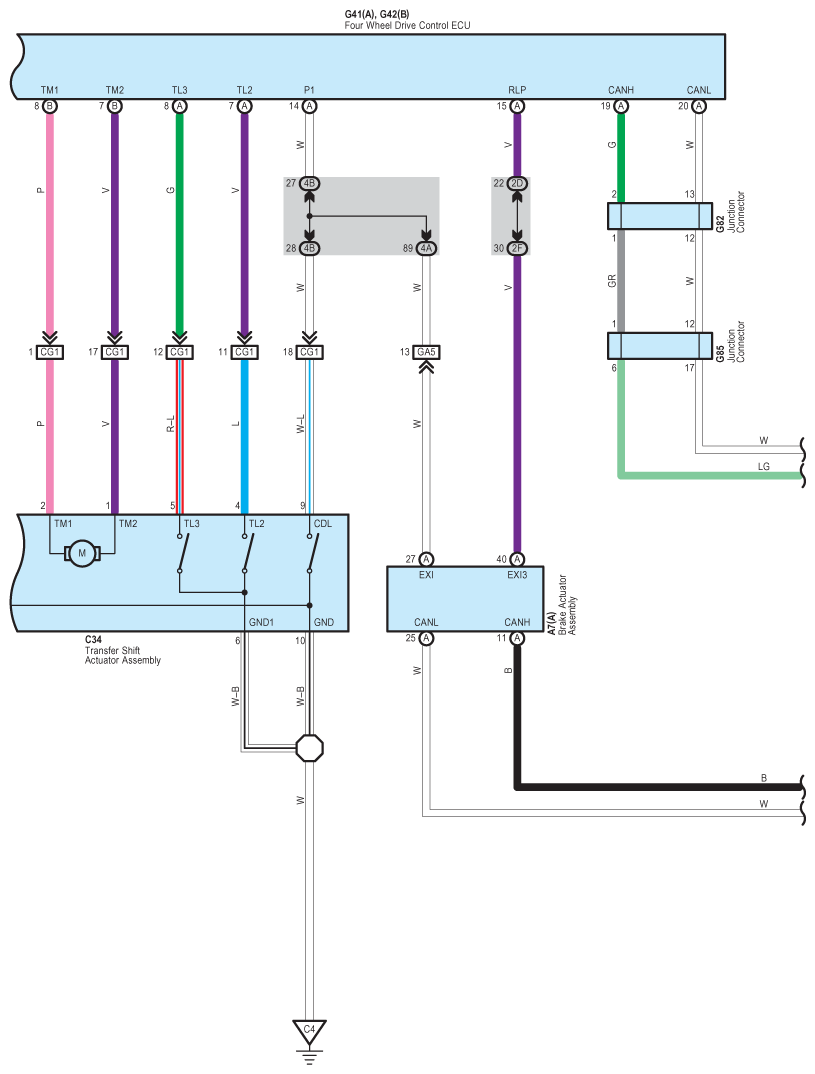

Fig 4: Center Differential Lock - Circuit Diagram (4 Of 5)

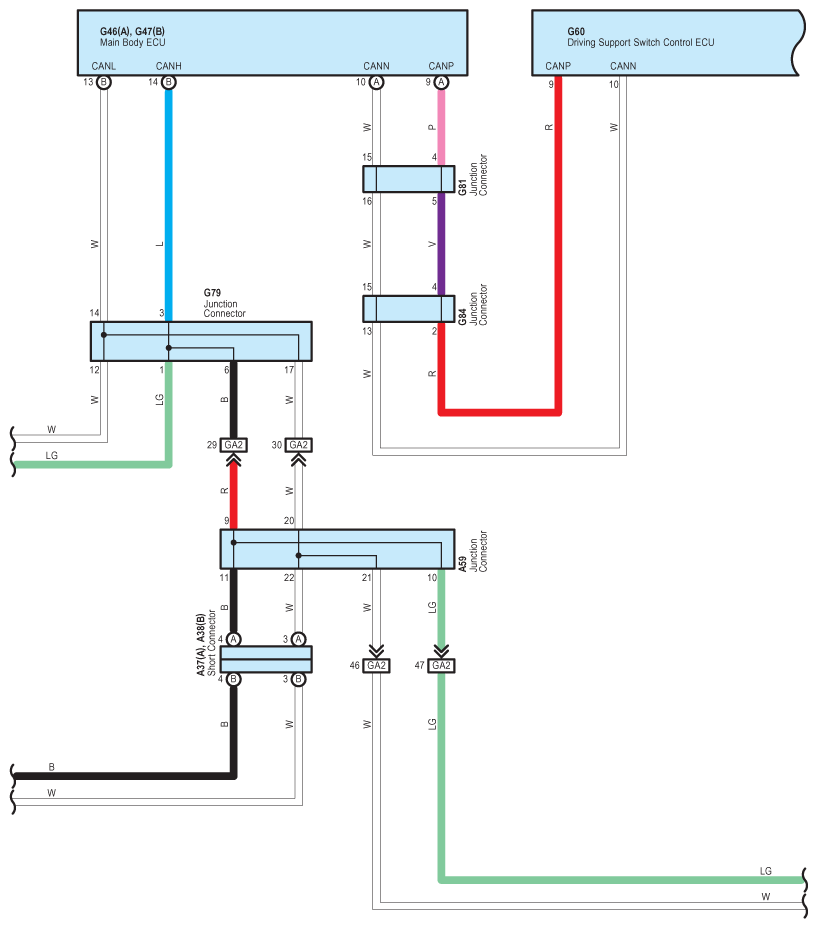

Fig 5: Center Differential Lock - Circuit Diagram (5 Of 5)
