Dynamic Radar Cruise Control and Lane Departure Alert: Notes

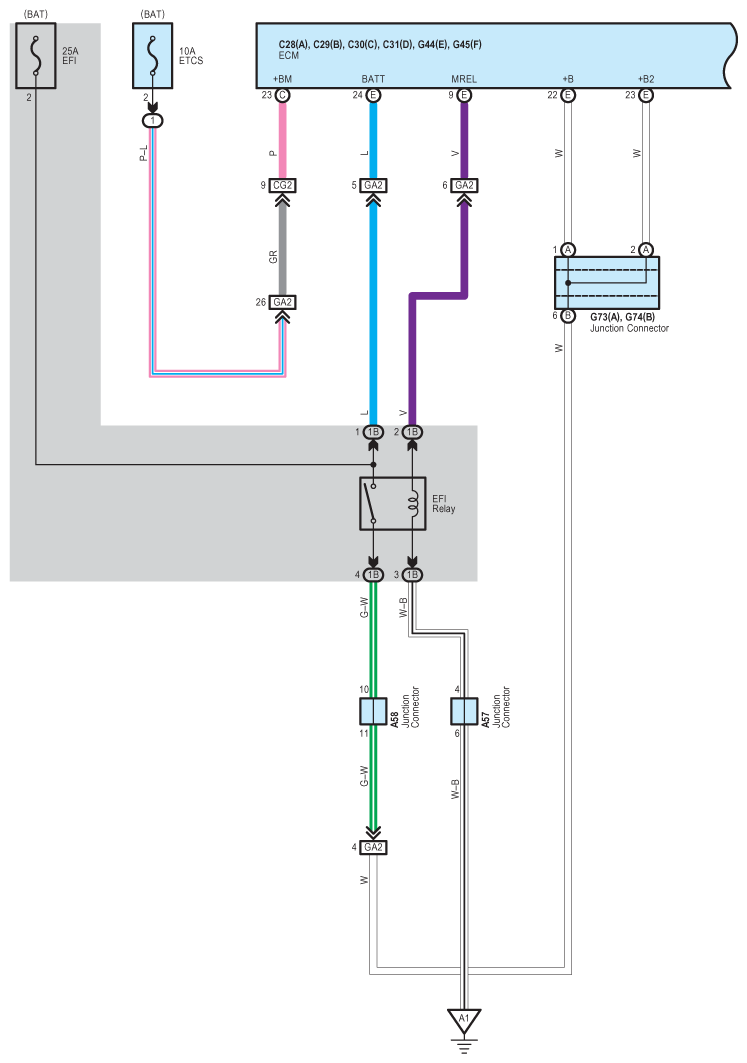

Fig 1: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (1 Of 22)

G07580618

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

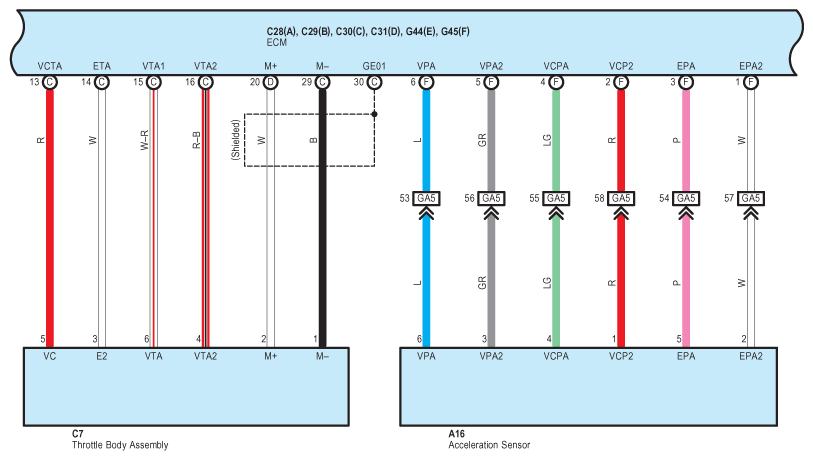

Fig 2: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (2 Of 22)

G07580619

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

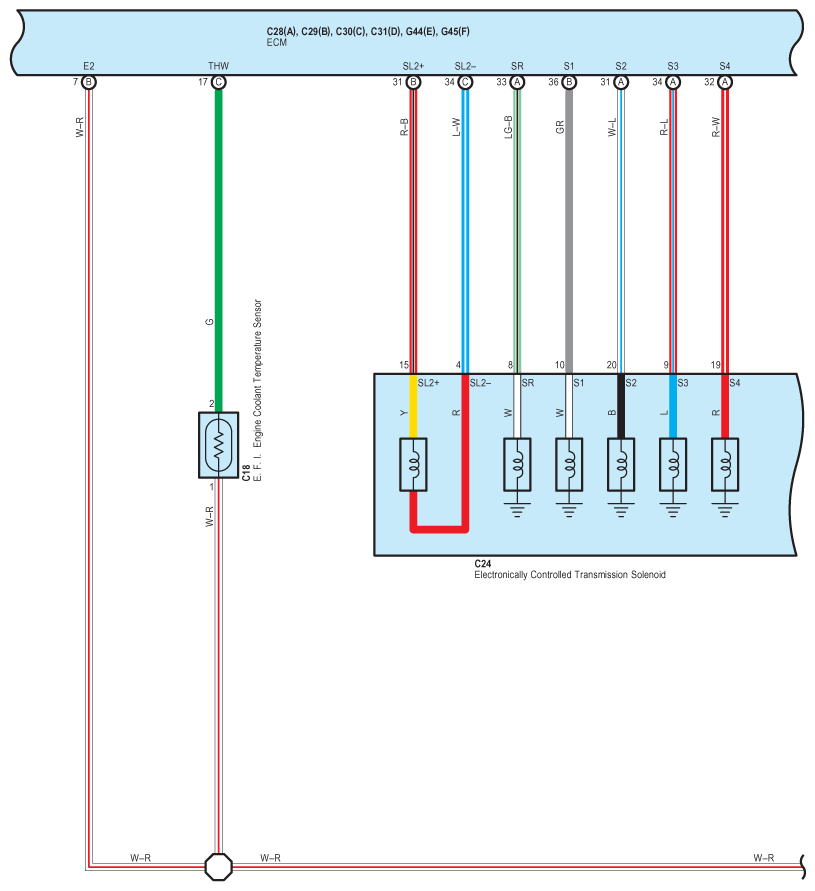

Fig 3: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (3 Of 22)

G07580620

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

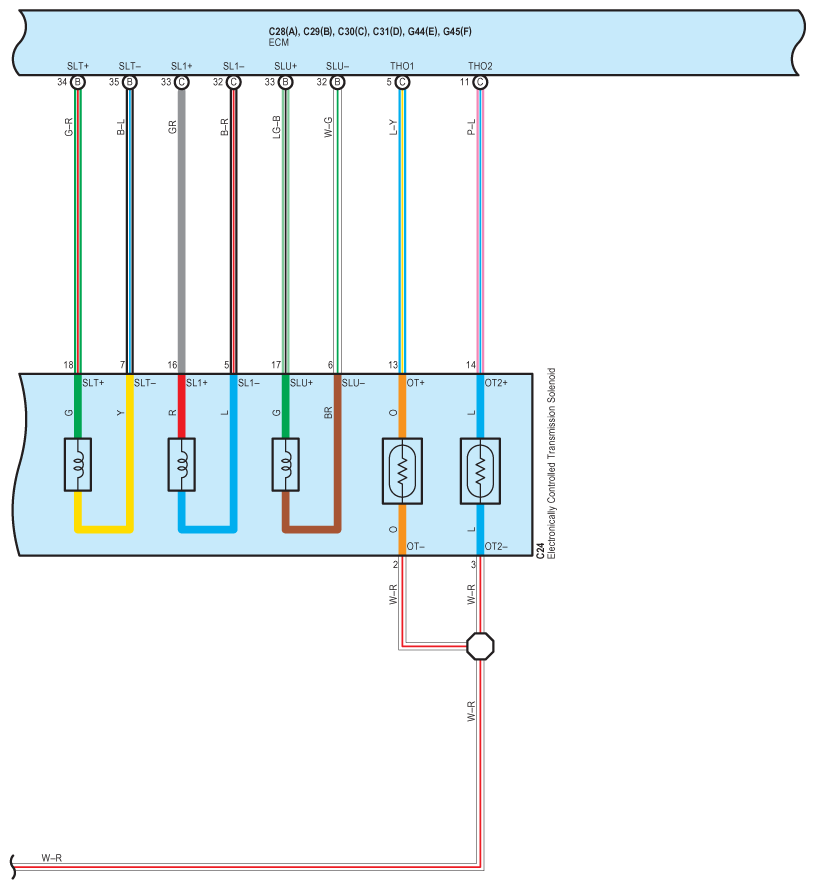

Fig 4: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (4 Of 22)

G07580621

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

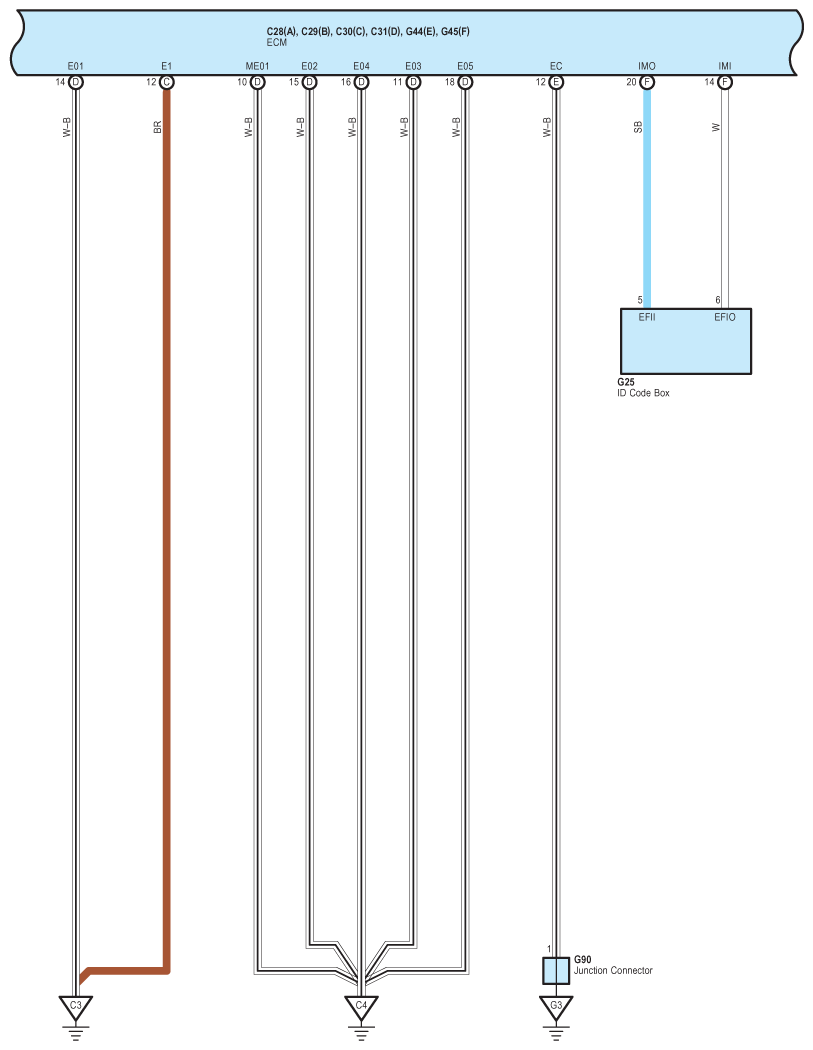

Fig 5: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (5 Of 22)

G07580622

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

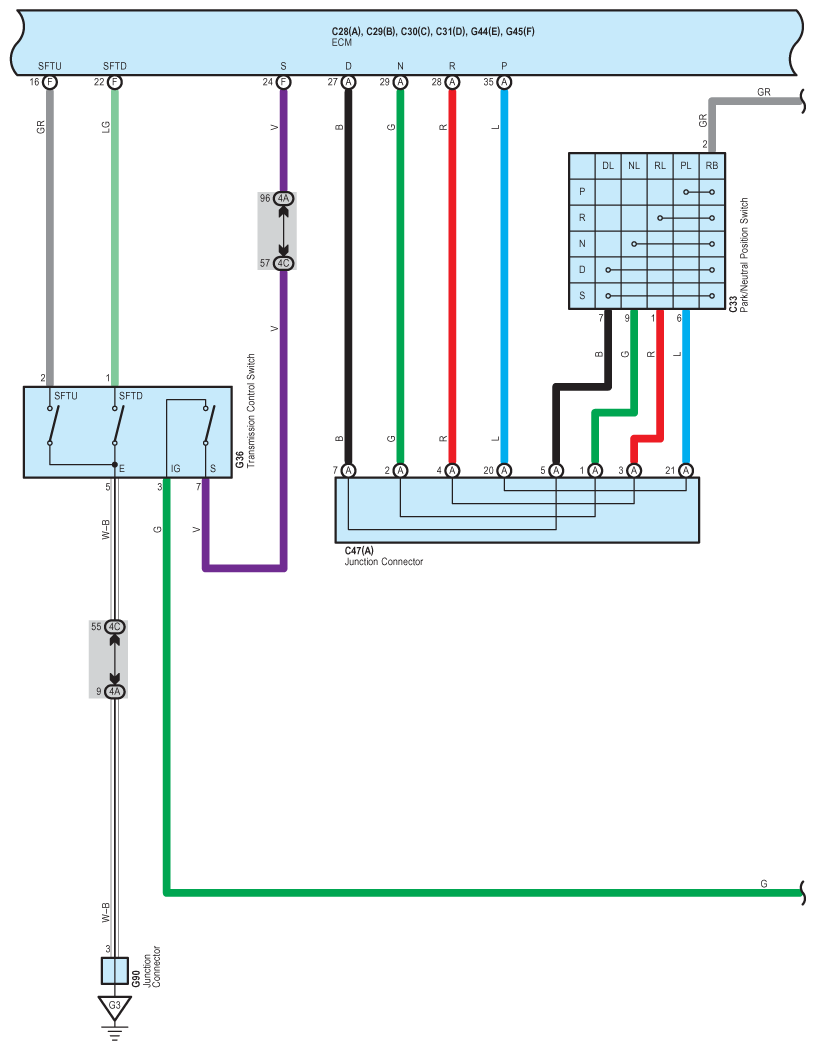

Fig 6: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (6 Of 22)

G07580623

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

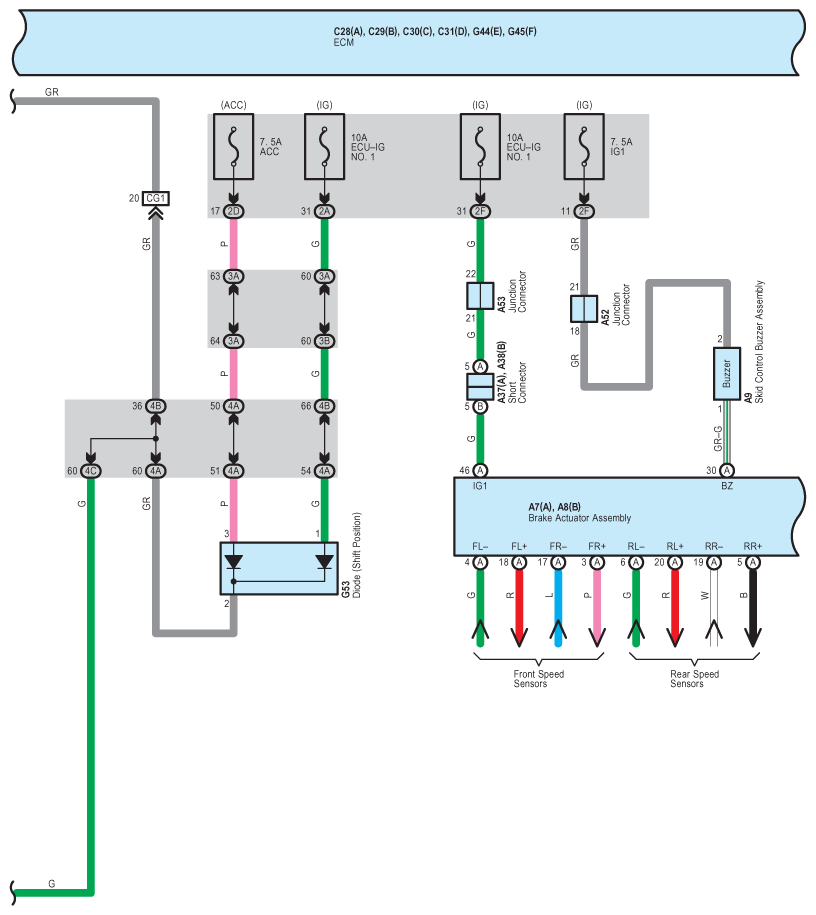

Fig 7: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (7 Of 22)

G07580624

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

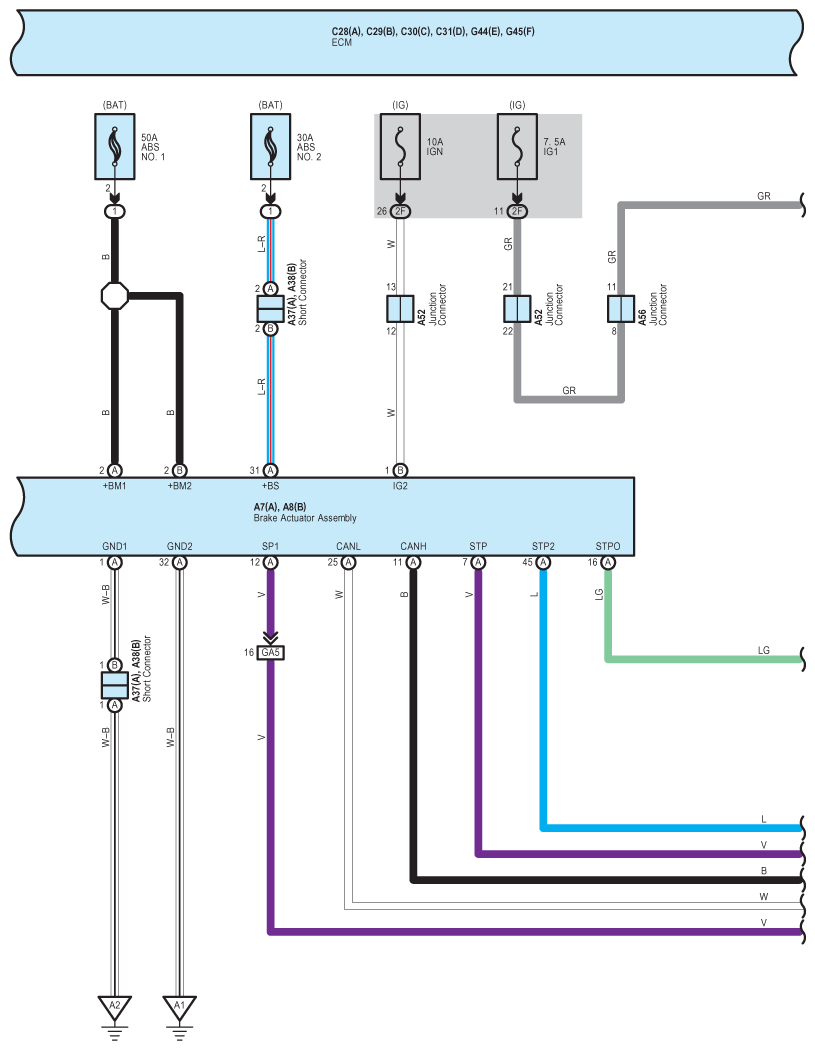

Fig 8: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (8 Of 22)

G07580625

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

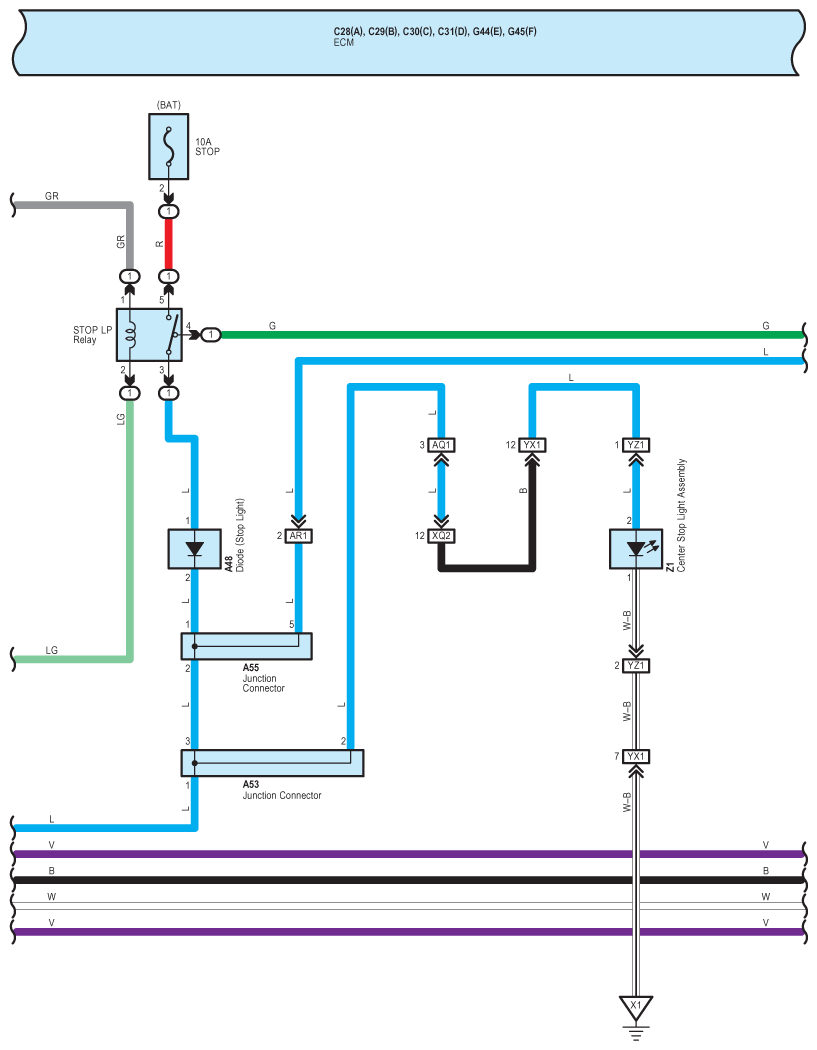

Fig 9: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (9 Of 22)

G07580626

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

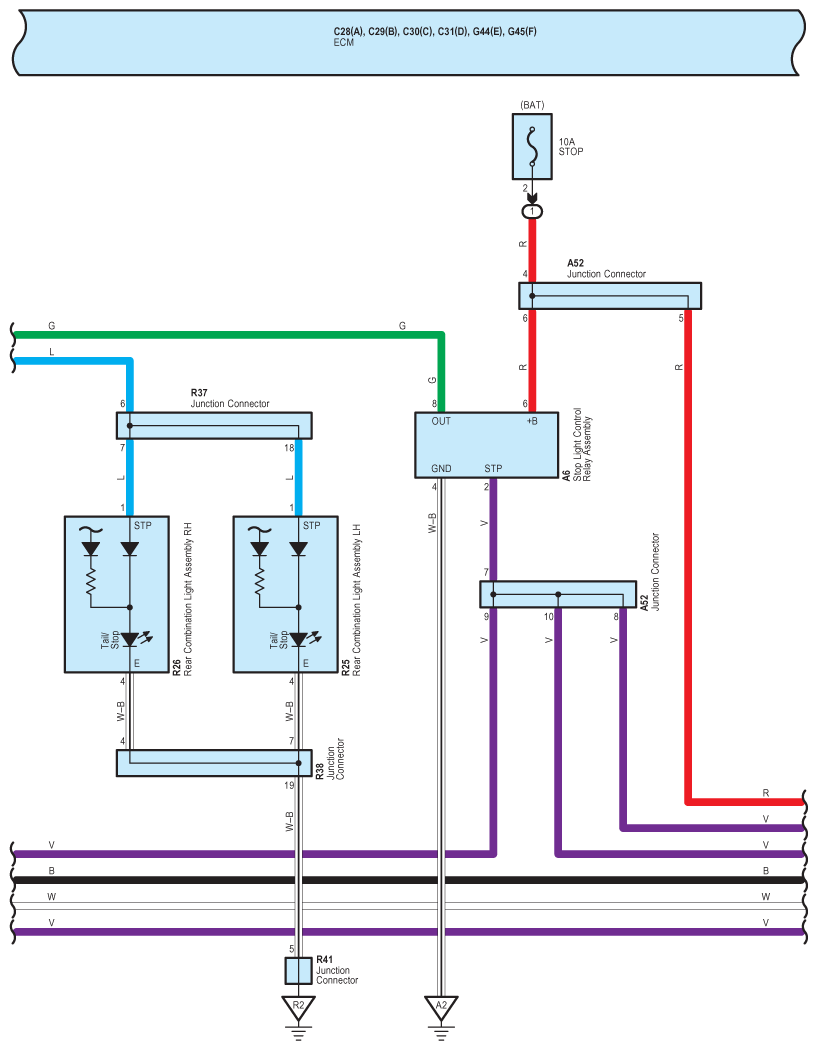

Fig 10: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (10 Of 22)

G07580627

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

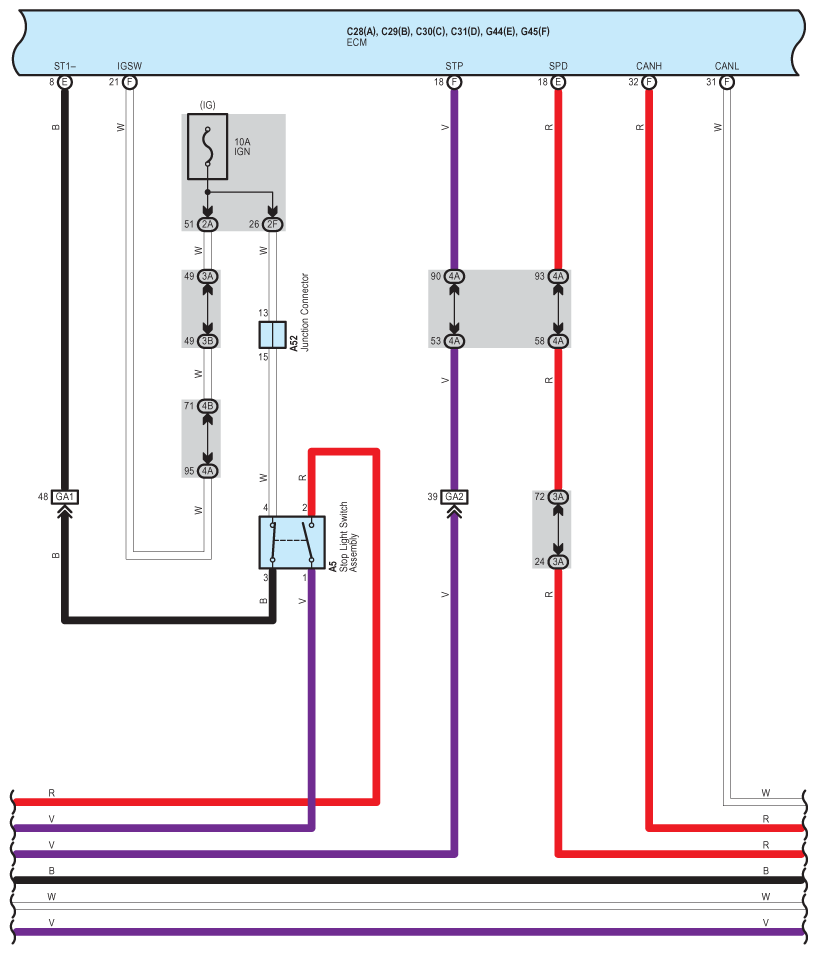

Fig 11: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (11 Of 22)

G07580628

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

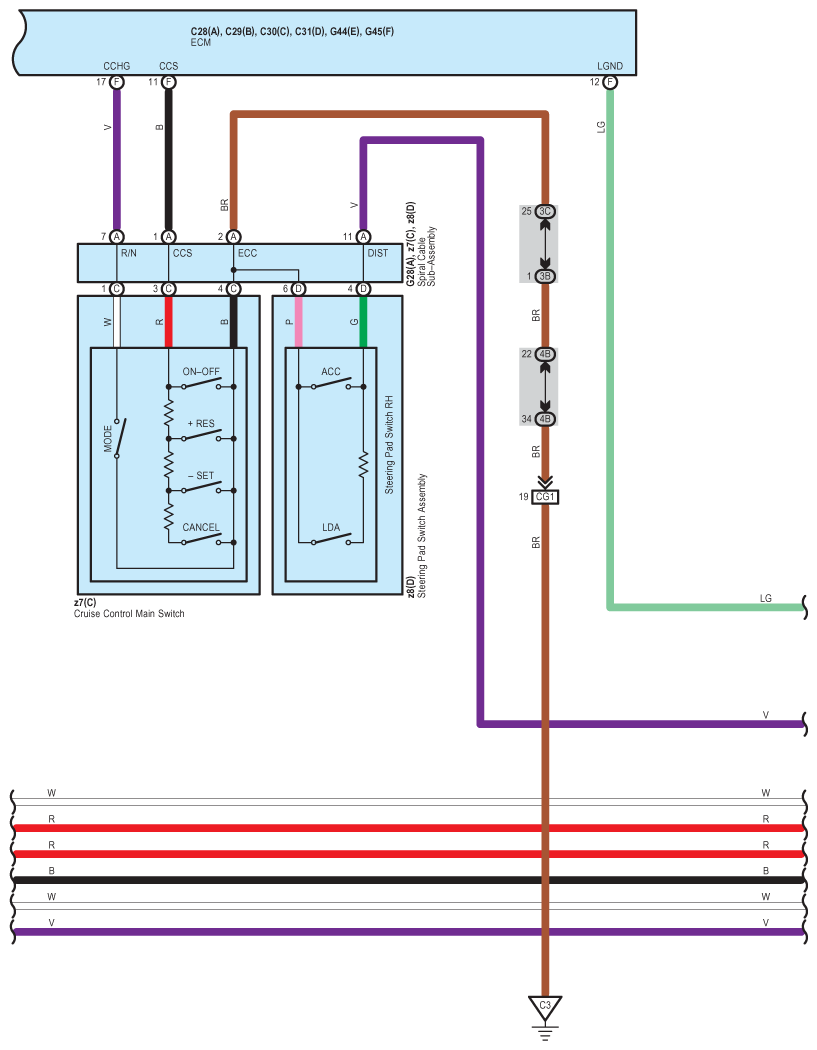

Fig 12: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (12 Of 22)

G07580629

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

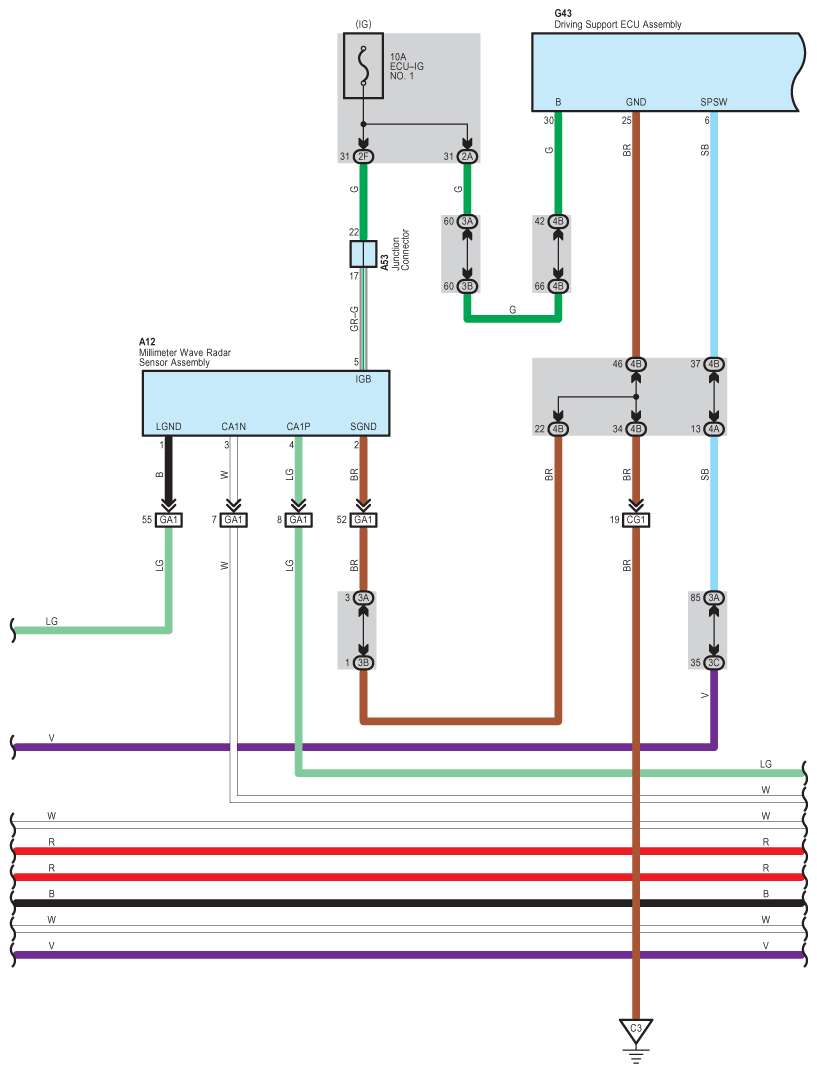

Fig 13: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (13 Of 22)

G07580630

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

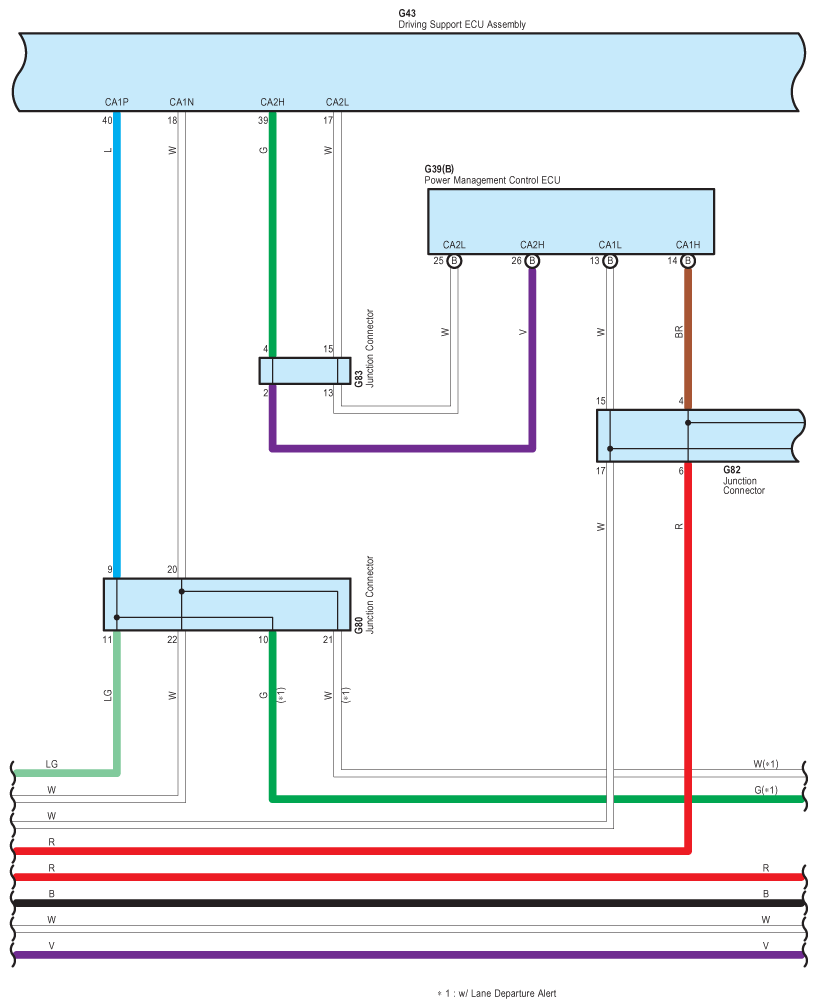

Fig 14: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (14 Of 22)

G07580631

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

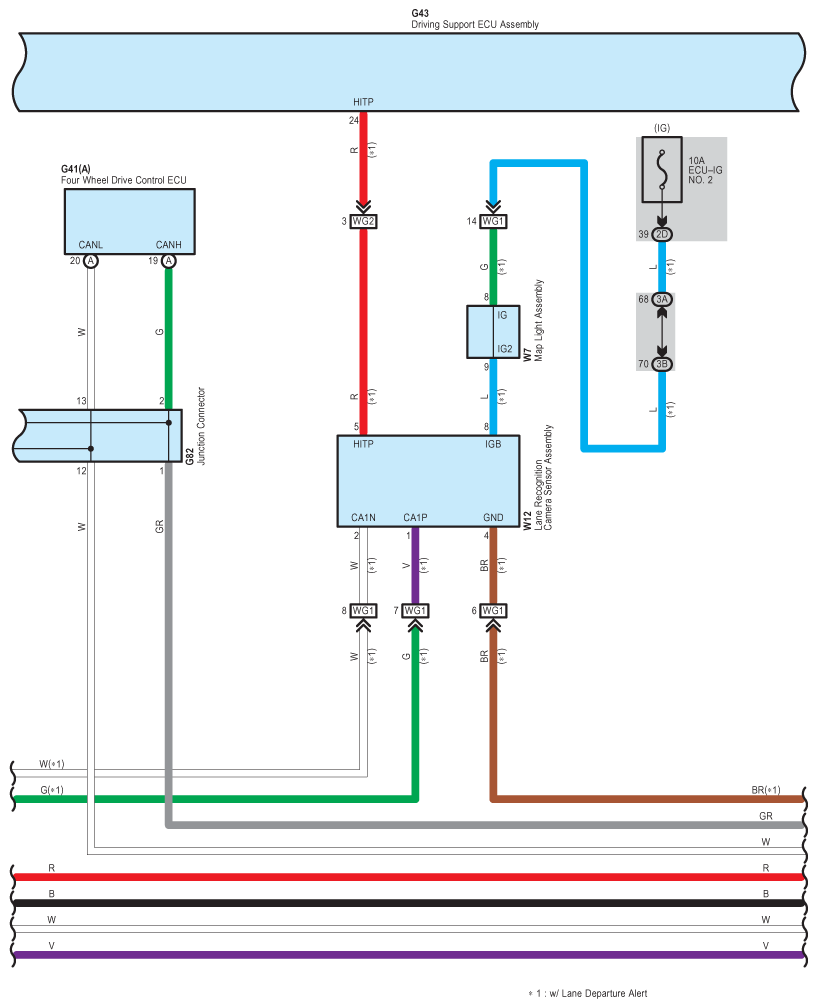

Fig 15: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (15 Of 22)

G07580632

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

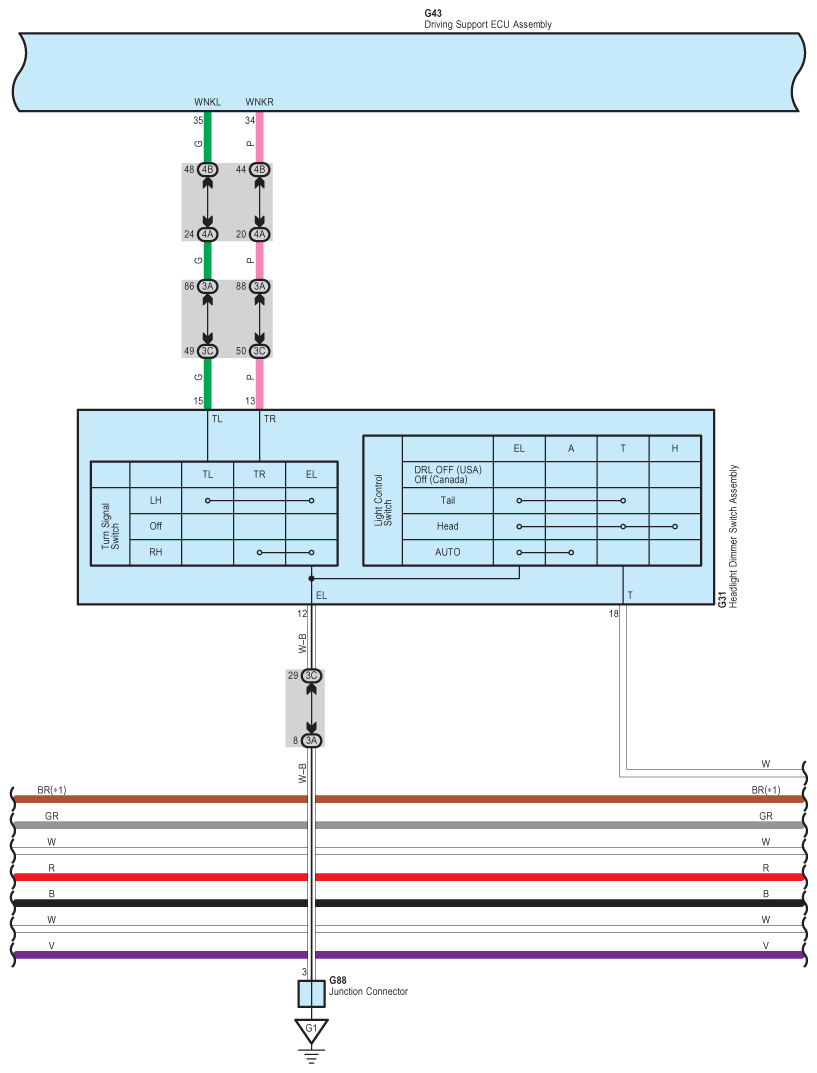

Fig 16: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (16 Of 22)

G07580633

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

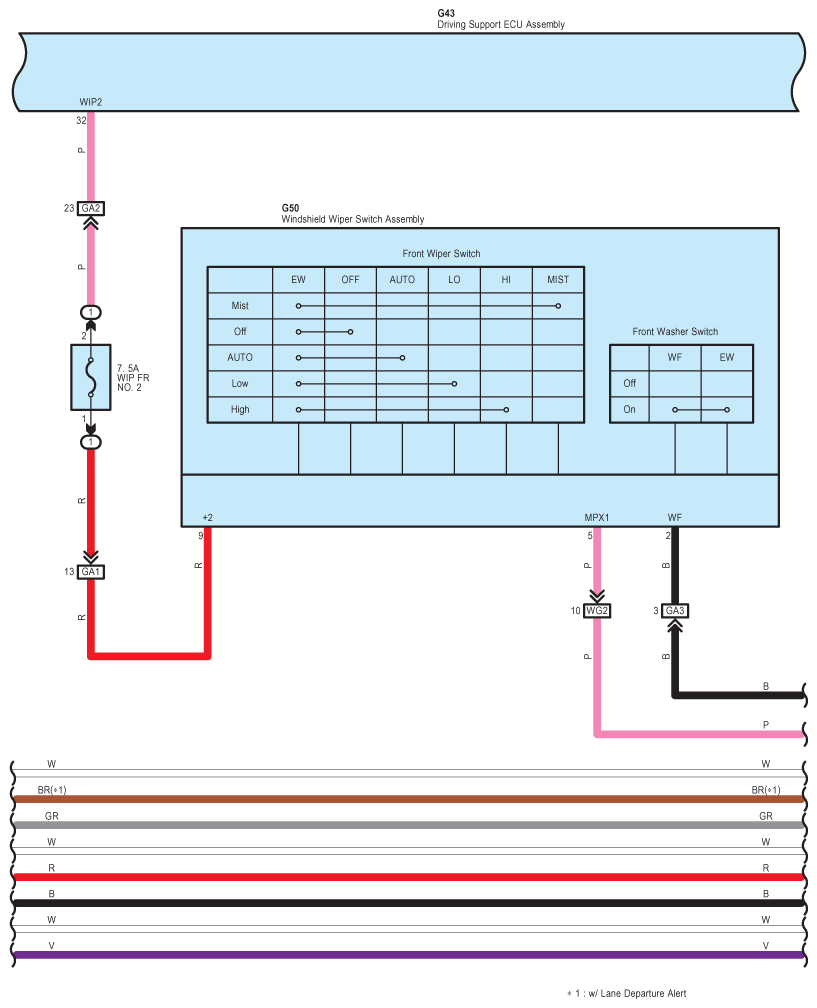

Fig 17: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (17 Of 22)

G07580634

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

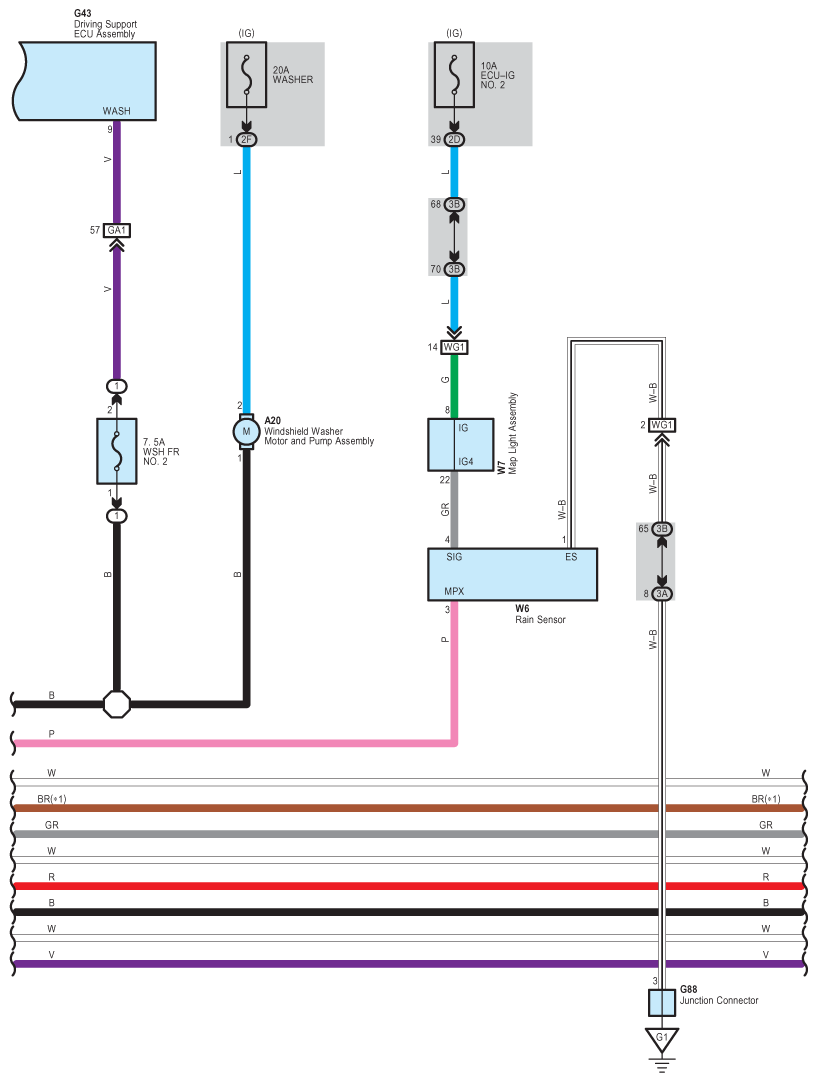

Fig 18: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (18 Of 22)

G07580635

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

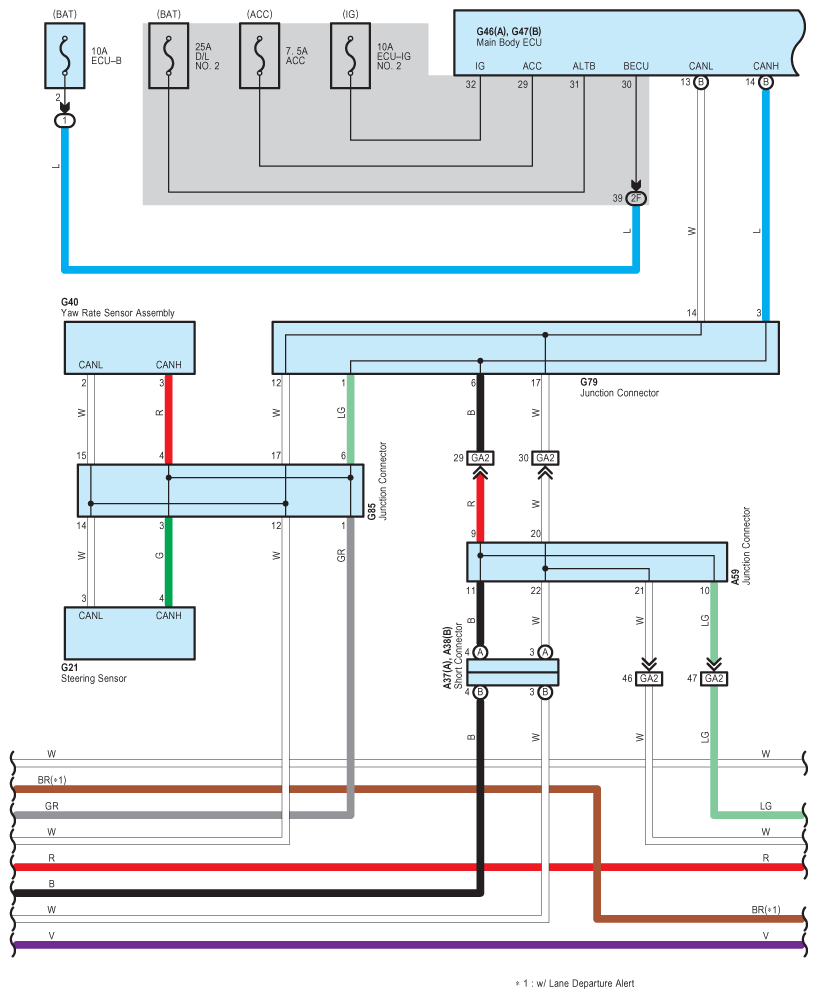

Fig 19: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (19 Of 22)

G07580636

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

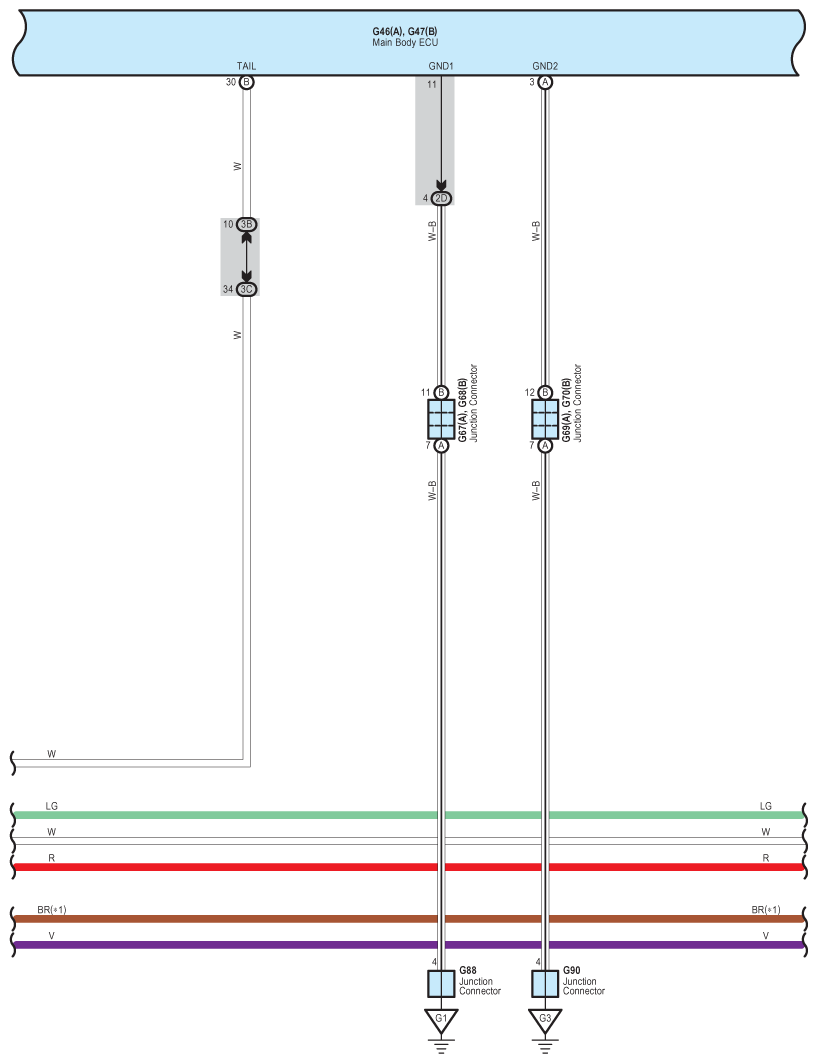

Fig 20: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (20 Of 22)

G07580637

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

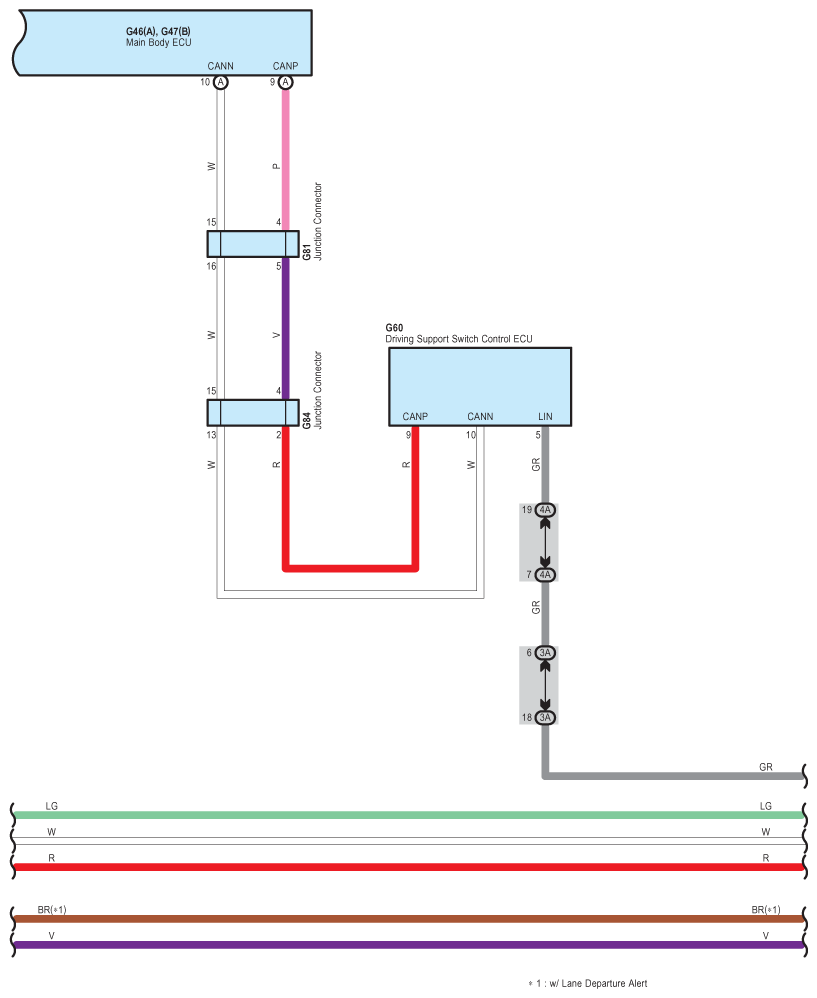

Fig 21: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (21 Of 22)

G07580638

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

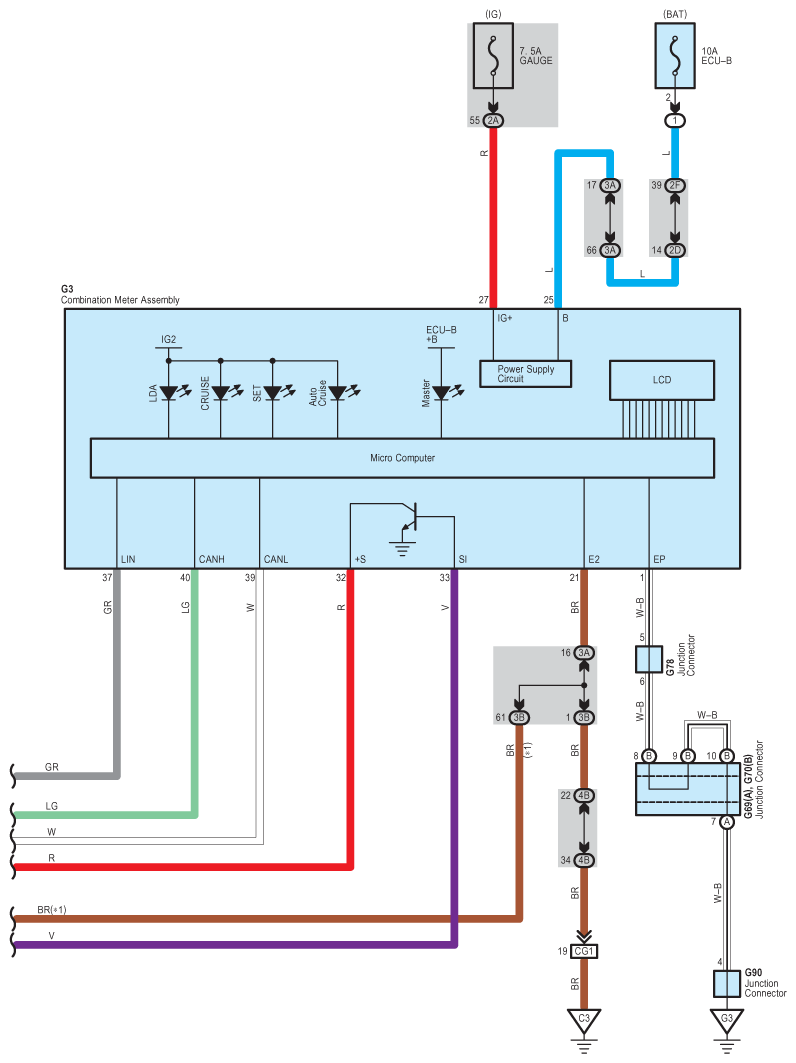

Fig 22: Dynamic Radar Cruise Control And Lane Departure Alert - Circuit Diagram (22 Of 22)

G07580639

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
