Theft Deterrent — 2011 Lexus GX 460 Service Manual ~ LEMON Manuals

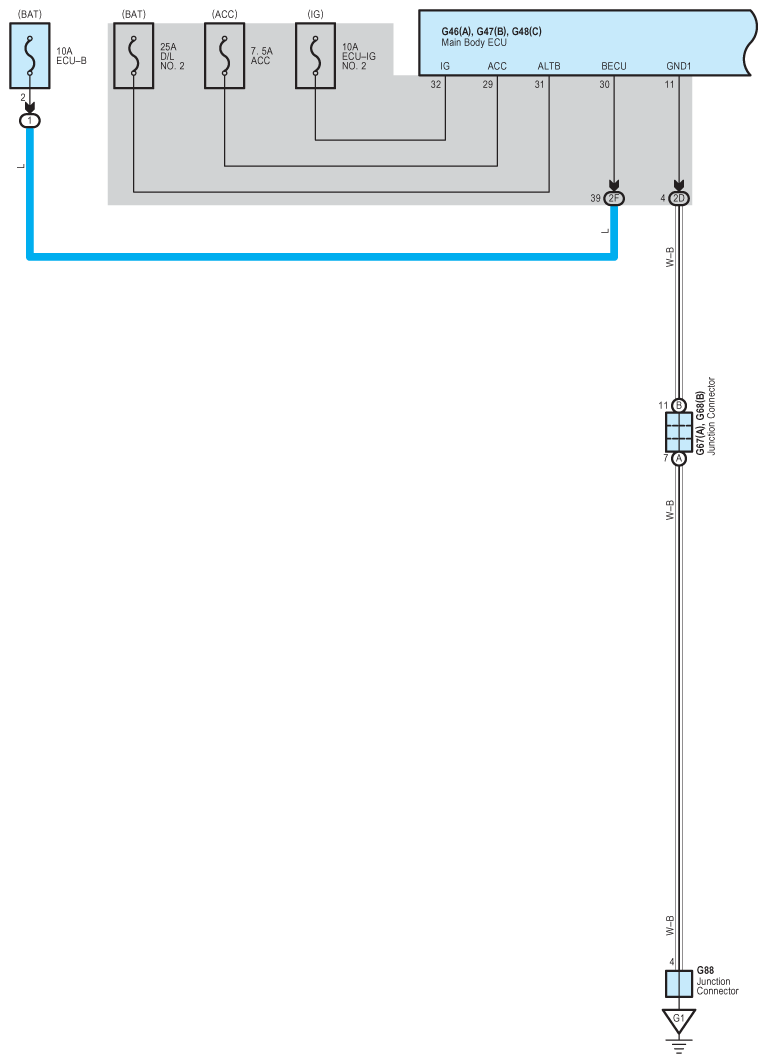

Fig 1: Theft Deterrent - Circuit Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

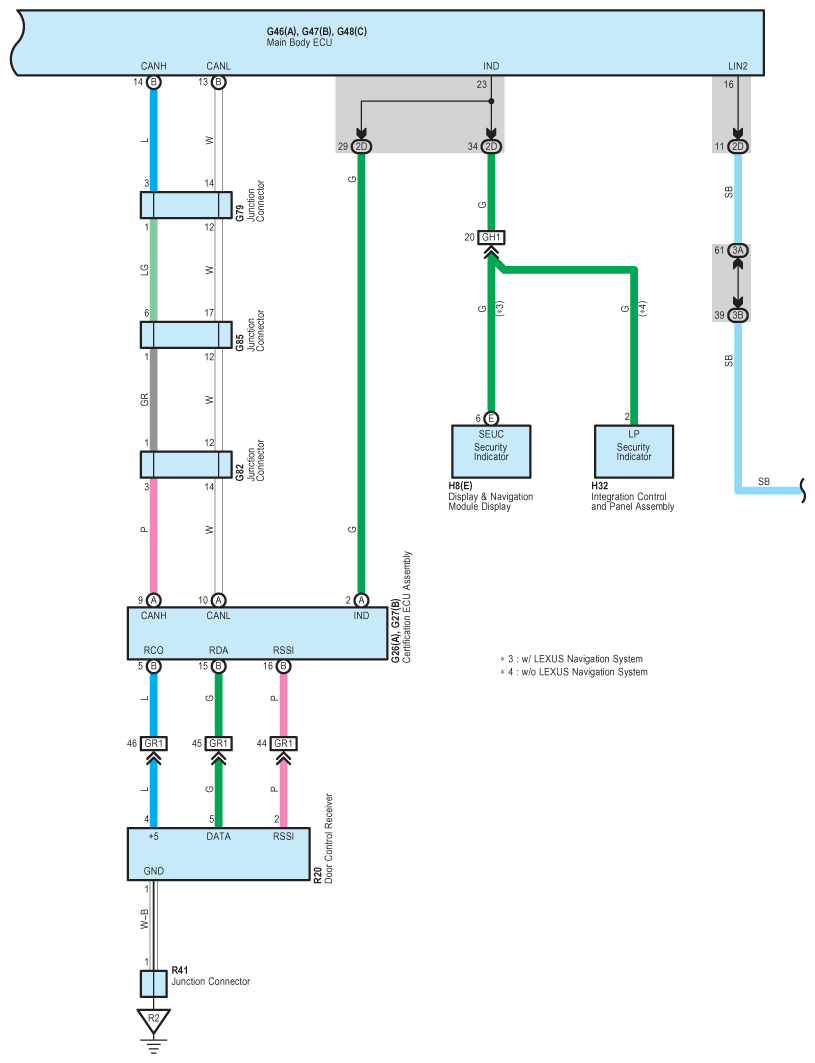

Fig 2: Theft Deterrent - Circuit Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

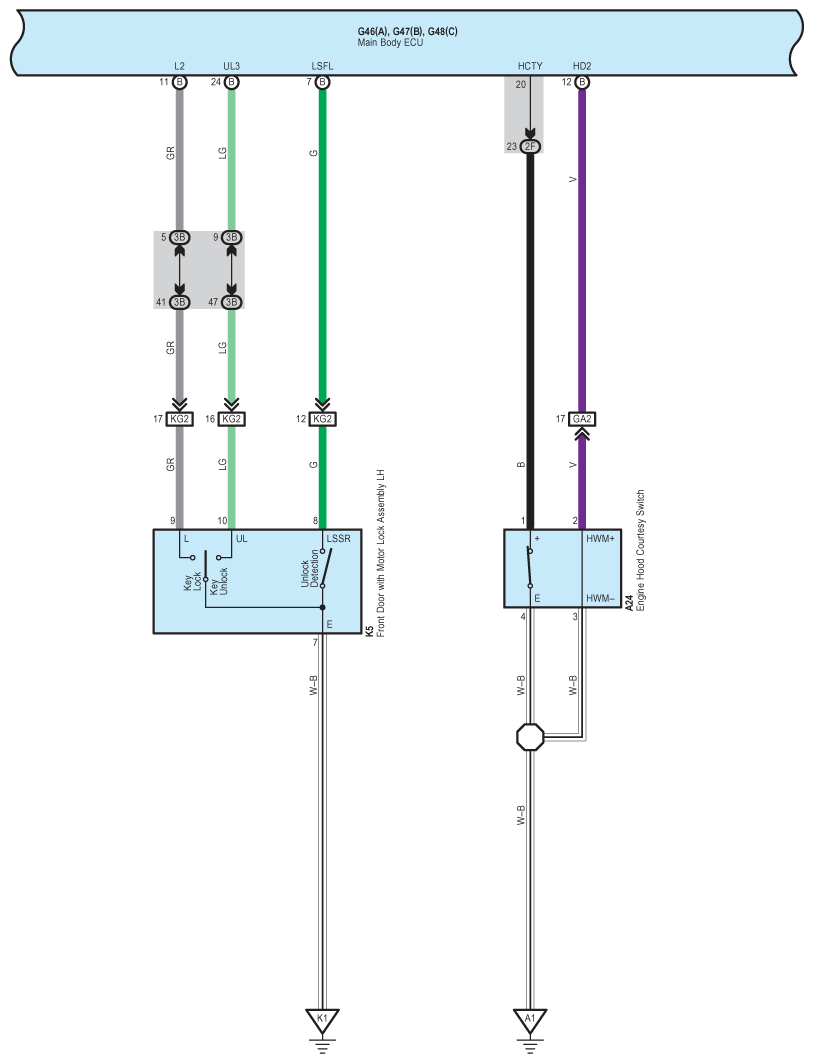

Fig 3: Theft Deterrent - Circuit Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

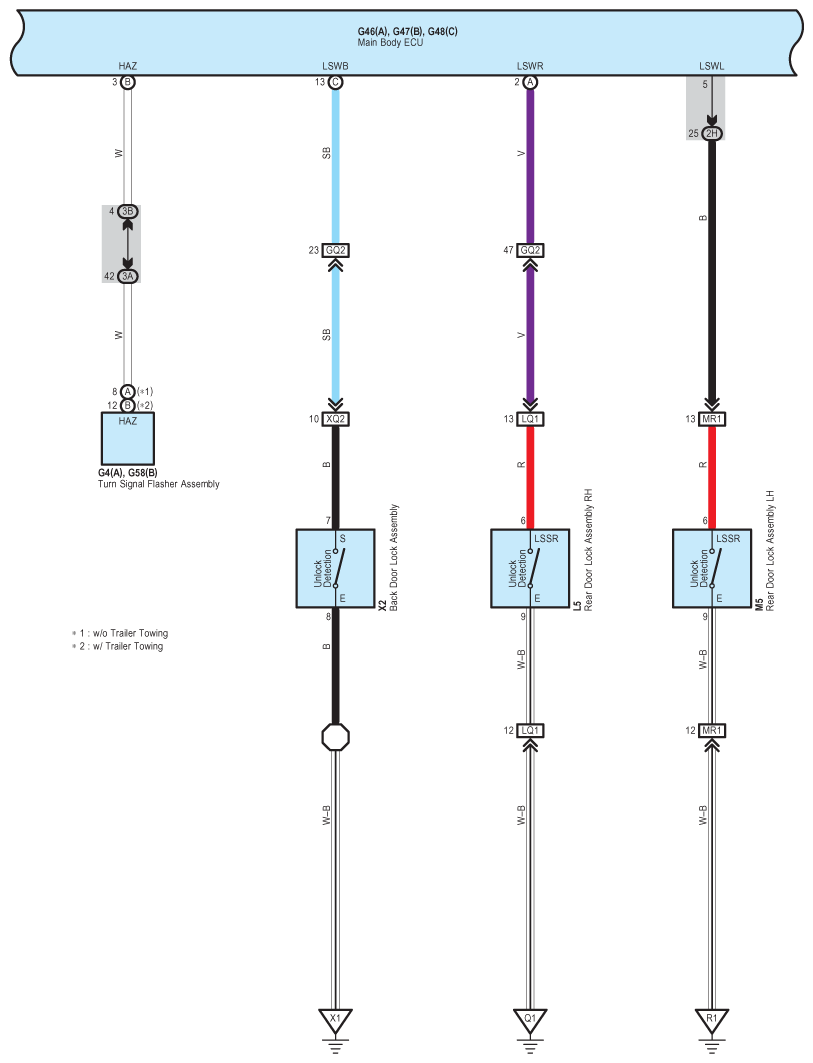

Fig 4: Theft Deterrent - Circuit Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

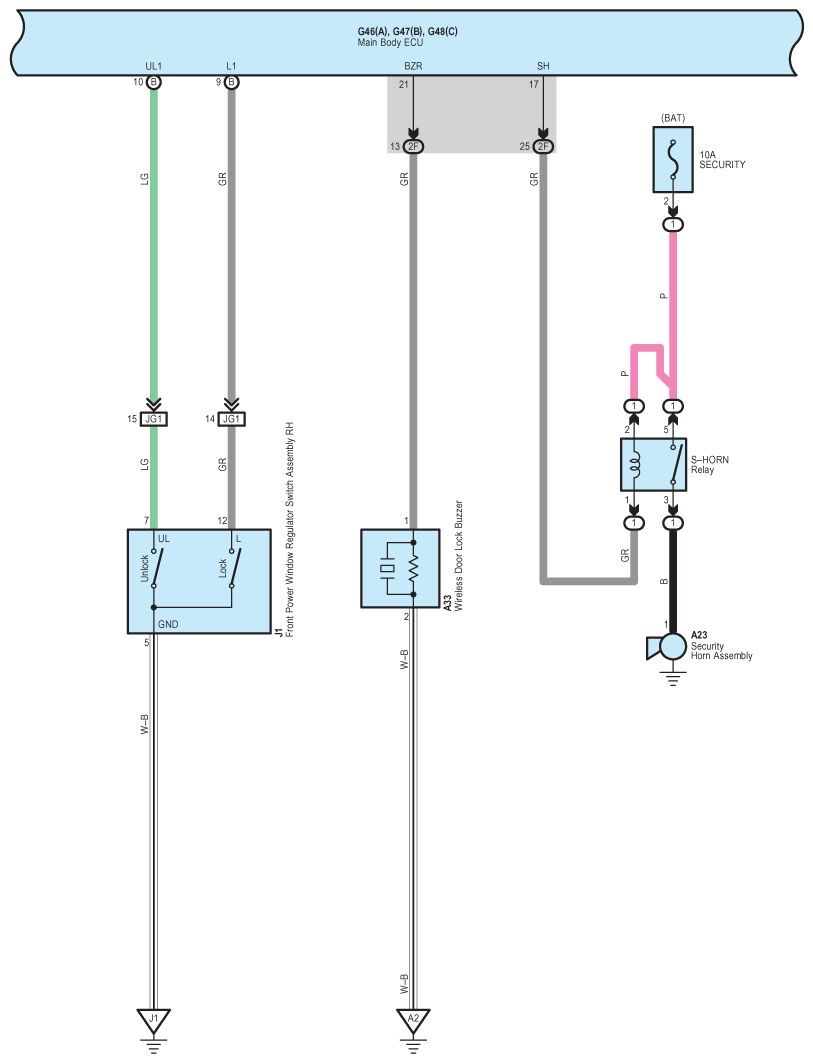

Fig 5: Theft Deterrent - Circuit Diagram (5 Of 7)

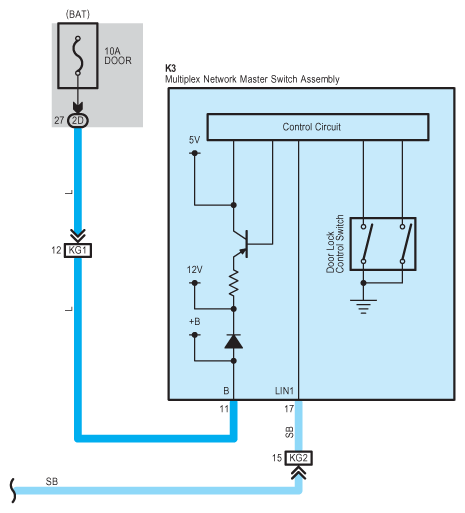

Fig 6: Theft Deterrent - Circuit Diagram (6 Of 7)

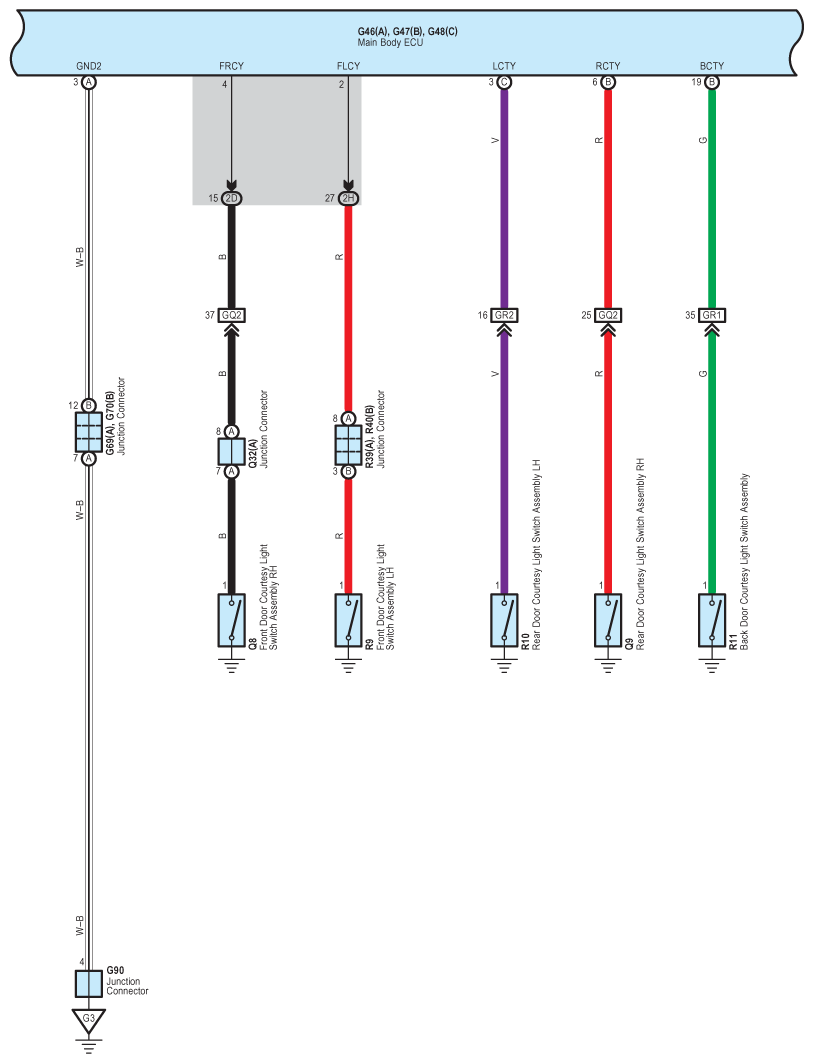

Fig 7: Theft Deterrent - Circuit Diagram (7 Of 7)
