Front Active Stabilizer Control Ecu: Removal: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE FRONT FENDER WHEEL OPENING MOULDING RH
REMOVE FRONT FENDER LINER RH
REMOVE NO. 2 COOL AIR INTAKE DUCT
1. Remove the 2 bolts and intake duct.

  Fig 1: Identifying Intake Duct Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT ACTIVE STABILIZER CONTROL ECU
1. Remove the bolt and disconnect the ground wire.

  Fig 2: Identifying Front Active Stabilizer Control ECU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the wire harness clamp from the bracket.

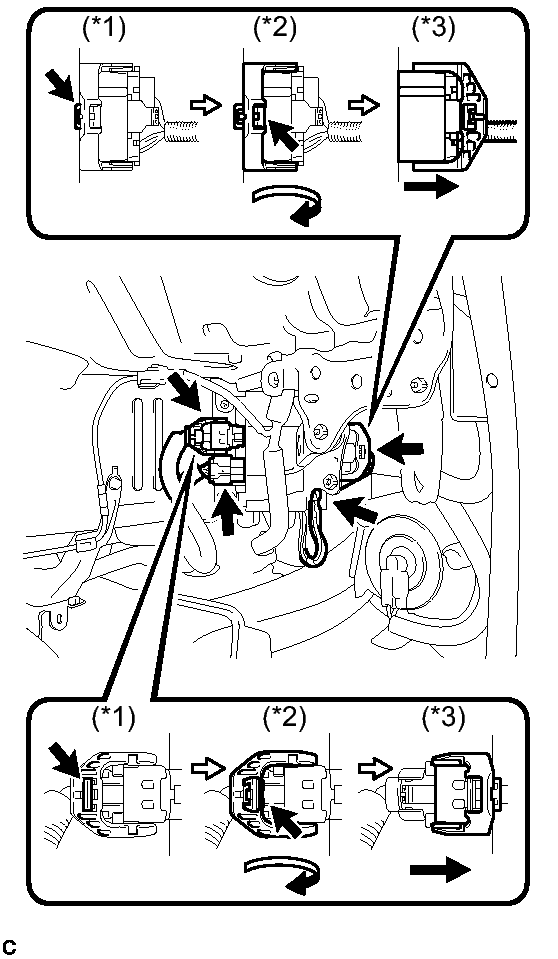

3. Using the procedures below, disconnect the ECU connector.
  1. Release the lever's lock. (*1)
  2. Press the claw and move the lever in the direction of the arrow in the illustration. (*2)
  3. Disconnect the ECU connector. (*3)
    NOTE:
    When disconnecting the ECU connector, do not apply excessive force to the wire harness.
4. Remove the bolt and 2 nuts, and disconnect the ECU from the body.

  Fig 3: Identifying ECU Body Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
