Brake Pedal Stroke Sensor: Components: Illustration

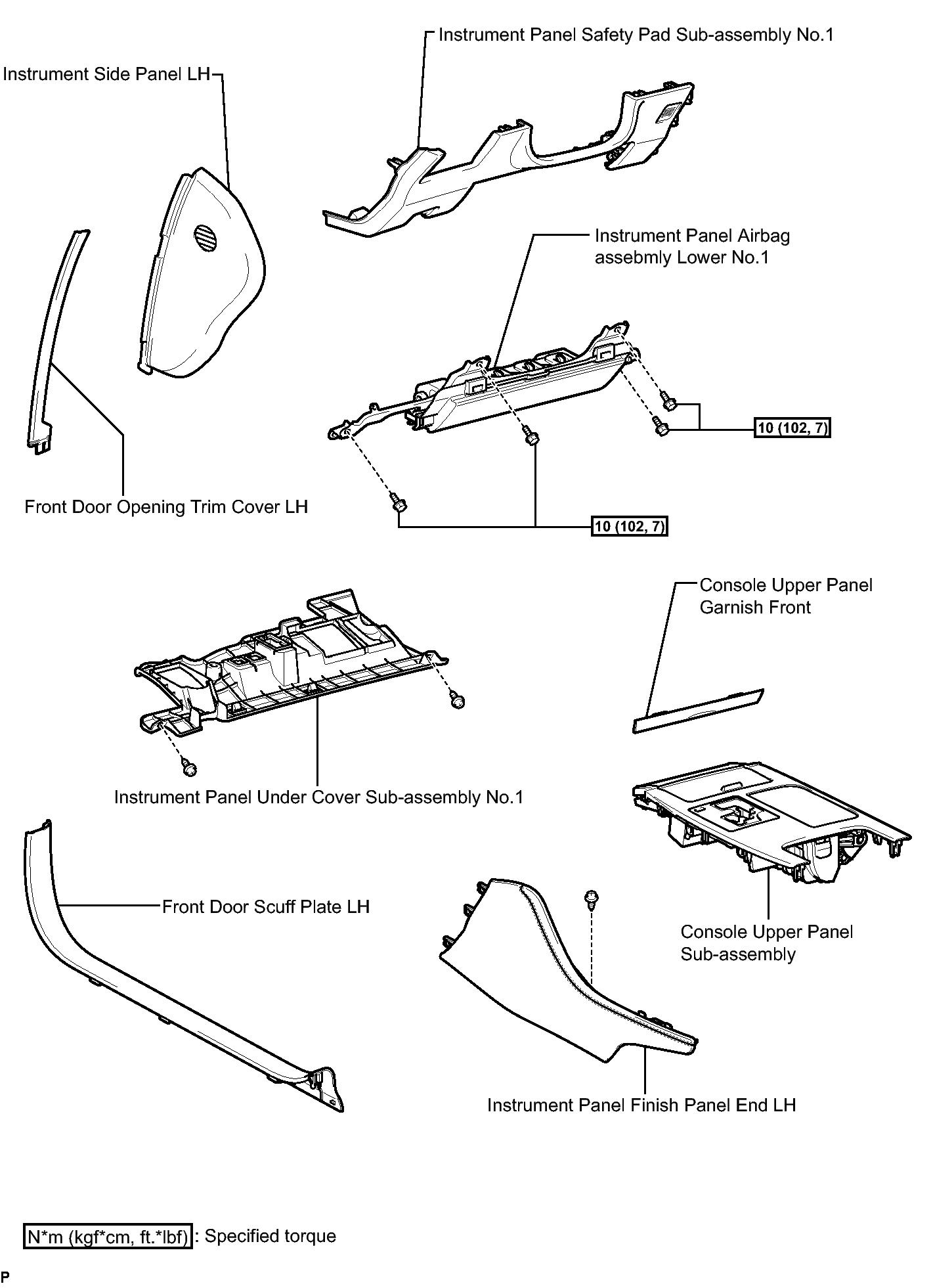

Fig 1: Exploded View Of Brake Pedal (1 Of 3)
GTY106604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

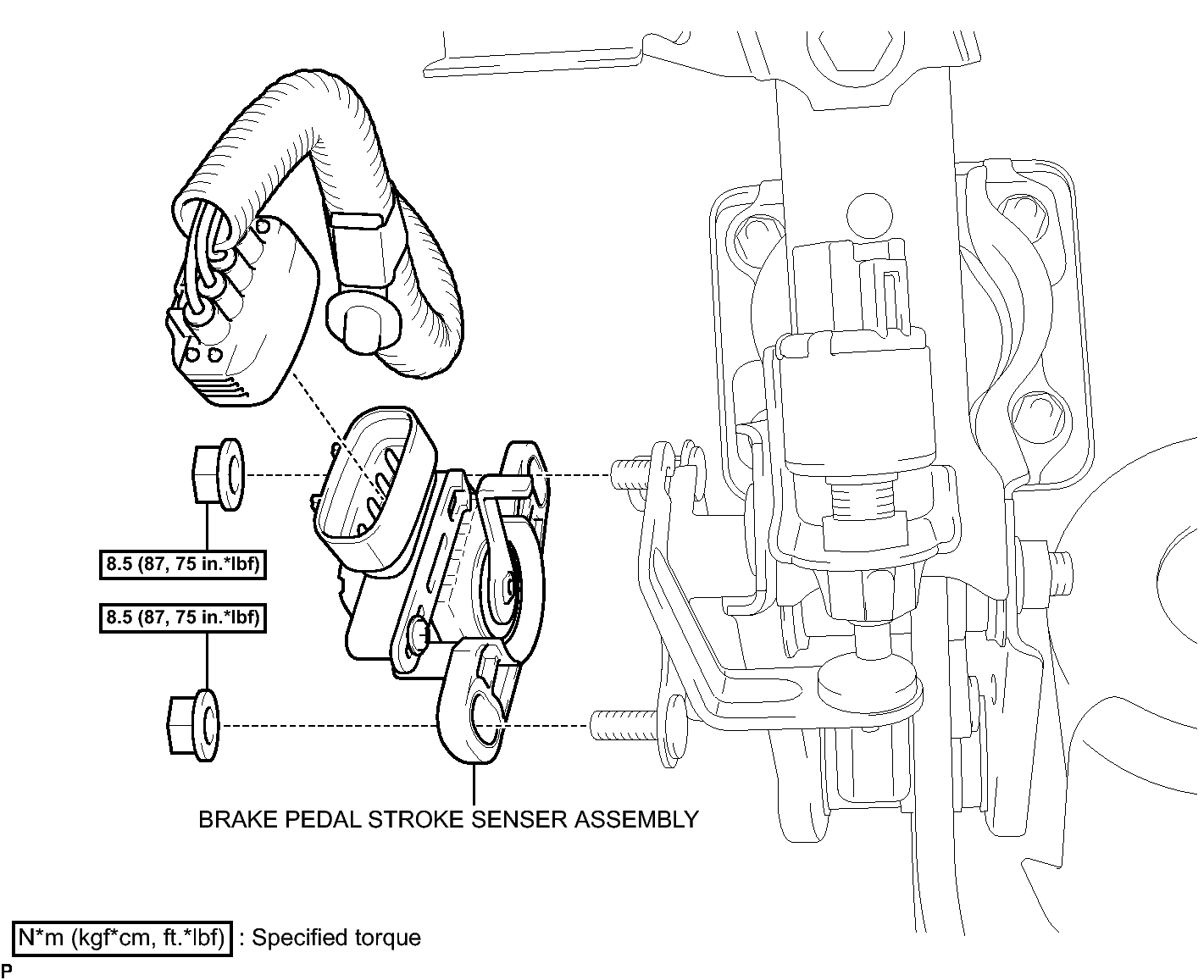

Fig 1: Brake Control Brake Pedal Stroke Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY106645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
