Transmission Control Switch: Components: Illustration

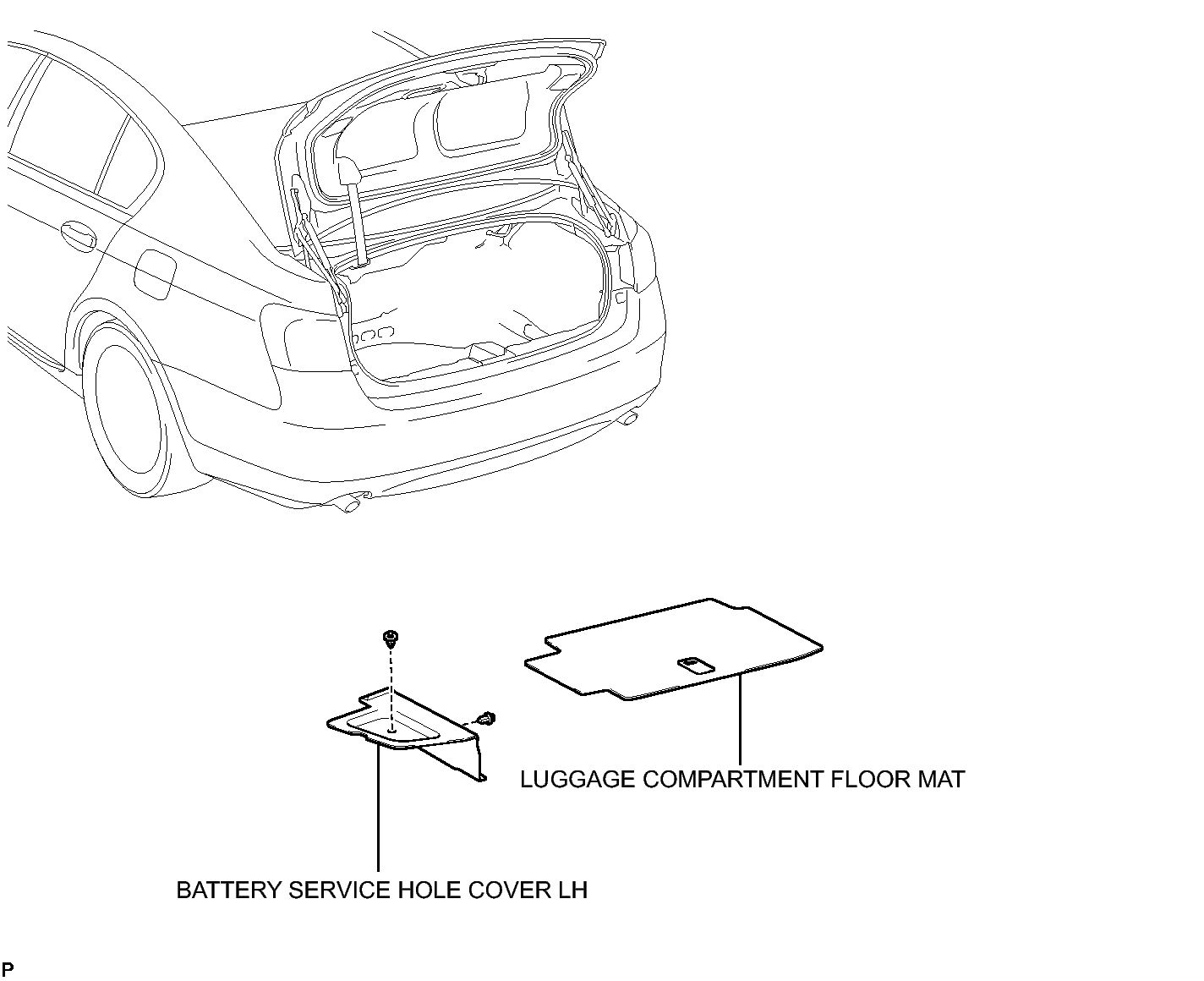

Fig 1: Identifying Transmission Control Switch Replacement Components (1 Of 4)
GTY130375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

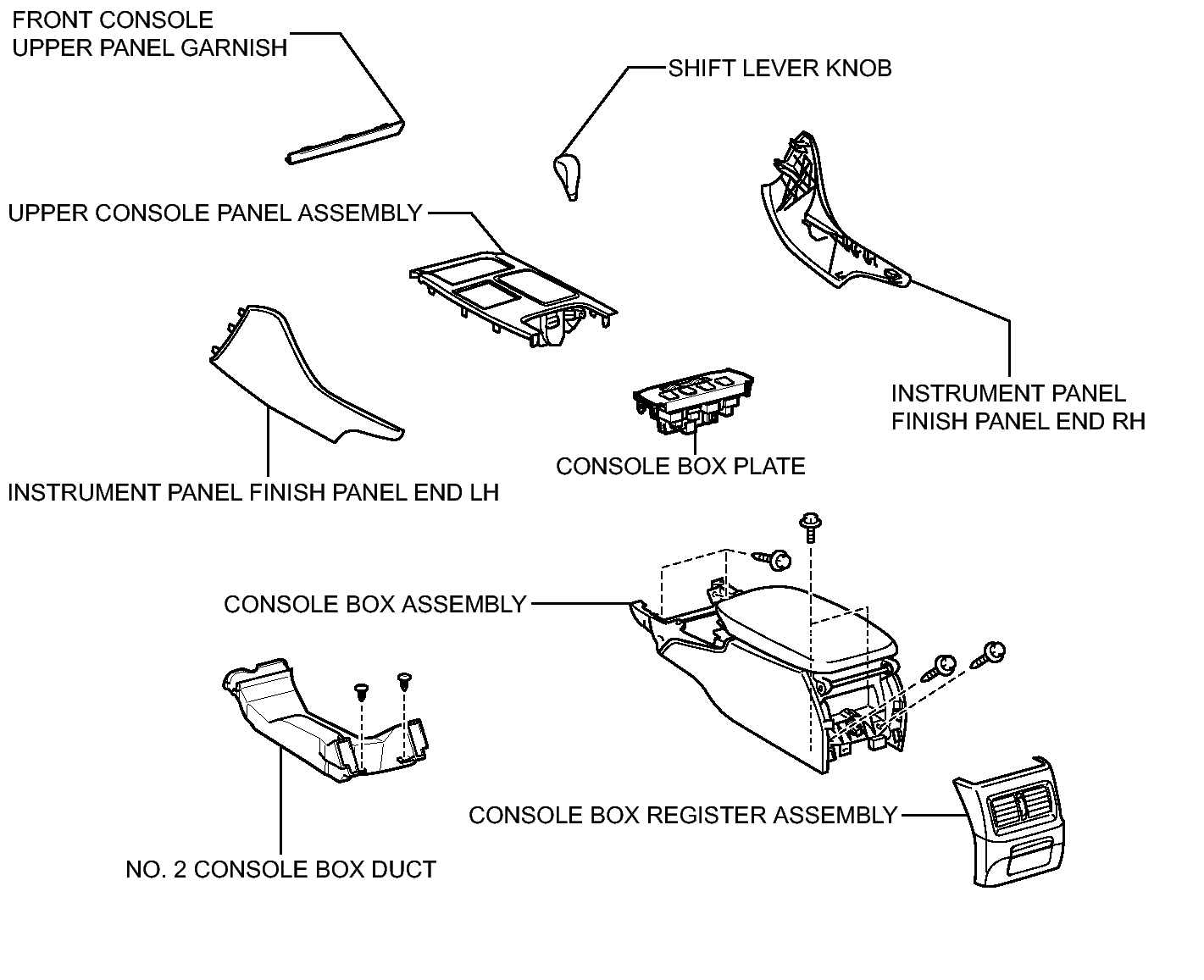

Fig 1: Identifying Transmission Control Switch Replacement Components (2 Of 4)
GTY111538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

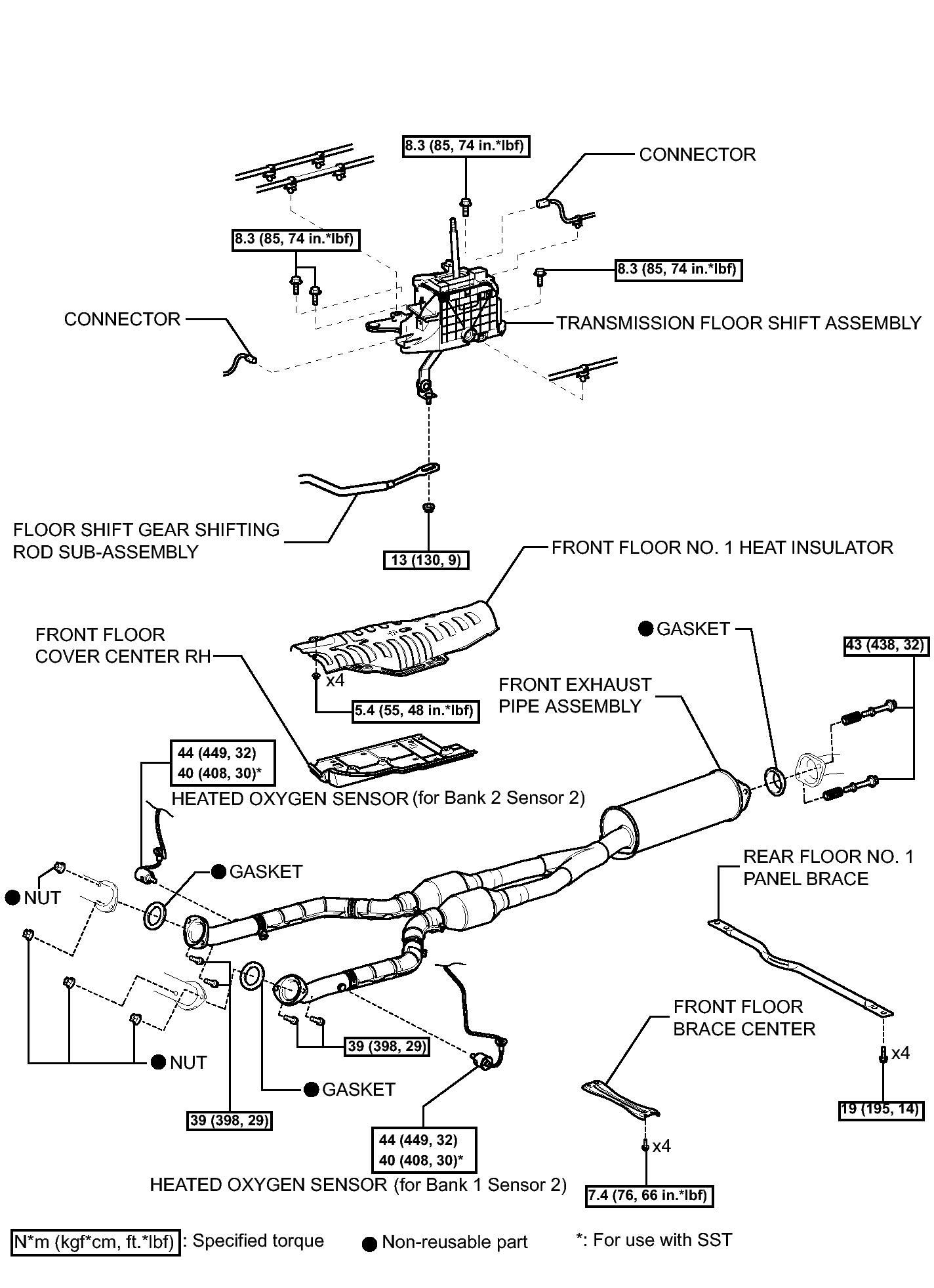

Fig 1: Identifying Transmission Control Switch Replacement Components With Torque Specifications (3 Of 4)
GTY111539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

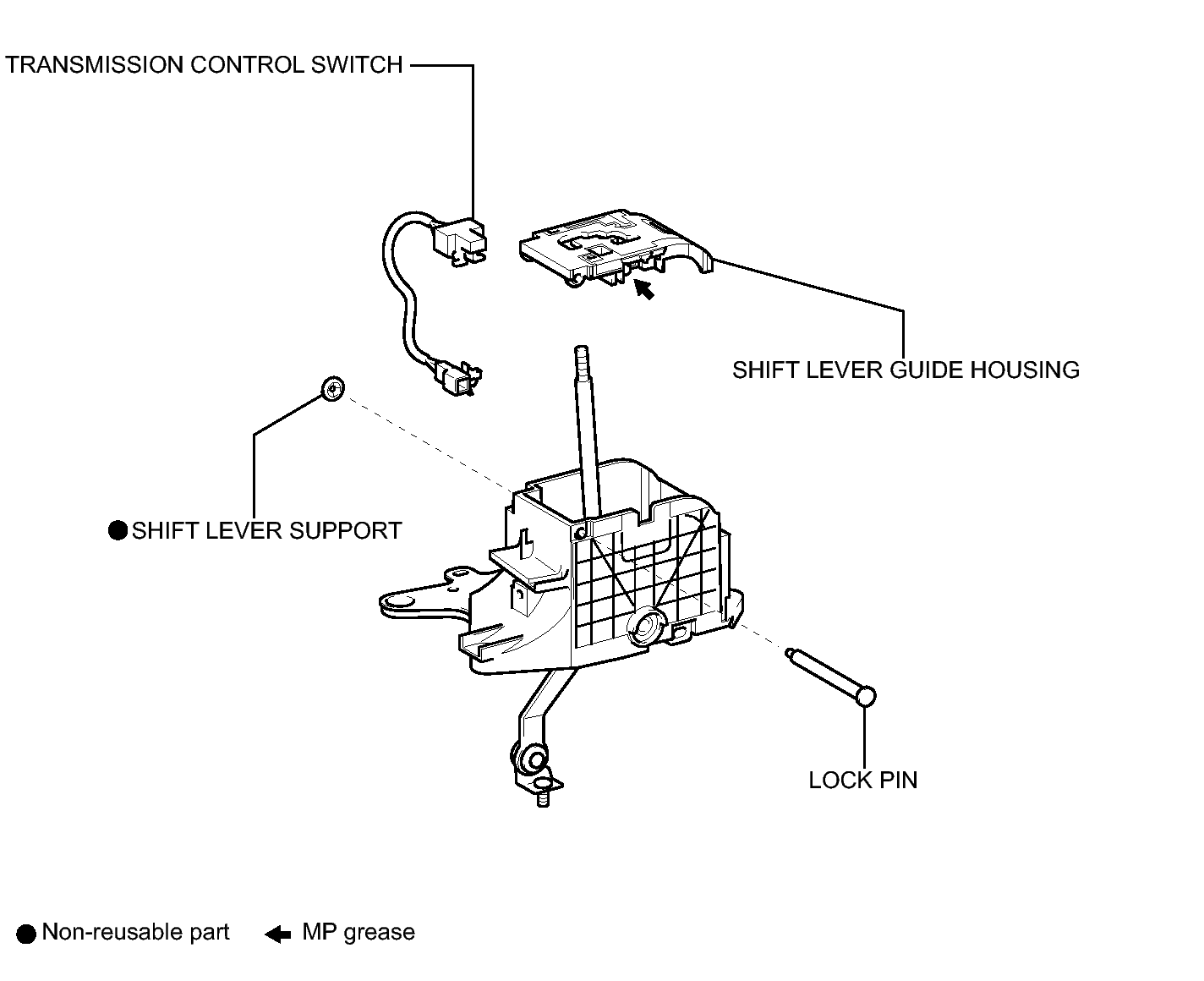

Fig 1: Identifying Transmission Control Switch Replacement Components (4 Of 4)
GTY133855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
