Sub Radiator: Removal: Removal

  1. REMOVE ENGINE UNDER COVER
  2. REMOVE NO. 2 ENGINE UNDER COVER
  3. REMOVE COOL AIR INTAKE DUCT SEAL  . Refer to REMOVAL - Step 10
  4. REMOVE ENGINE ROOM SIDE COVER LH  . Refer to REMOVAL - Step 12
  5. REMOVE ENGINE ROOM SIDE COVER RH  . Refer to REMOVAL - Step 11
  6. DRAIN COOLANT (for Inverter)  Refer to  6
  7. REMOVE FRONT BUMPER ASSEMBLY  . Refer to REMOVAL - Step 2
  8. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)  . Refer to REMOVAL - Step 3
  9. REMOVE HOOD LOCK CONTROL CABLE COVER  . Refer to REMOVAL - Step 6
  10. REMOVE HOOD LOCK ASSEMBLY  . Refer to REMOVAL - Step 8
  11. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY  . Refer to REMOVAL - Step 16
  12. REMOVE RADIATOR ASSEMBLY
    1. Remove the 2 clips and disconnect the 2 water hoses.

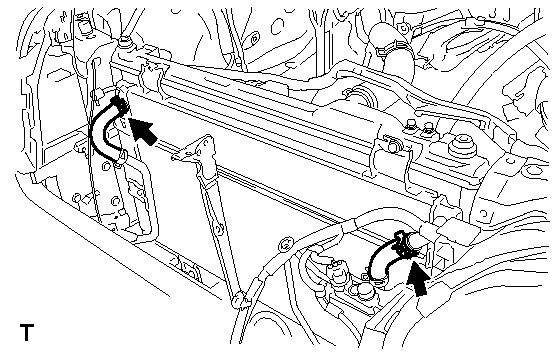

      Fig 1: Locating Water Hoses And Clips
      GTY127558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 6 bolts and radiator assembly.

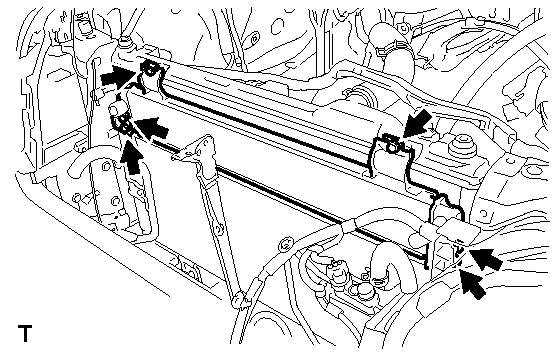

      Fig 2: Locating Radiator Assembly Bolts
      GTY146929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
