Sub Radiator: Components: Illustration

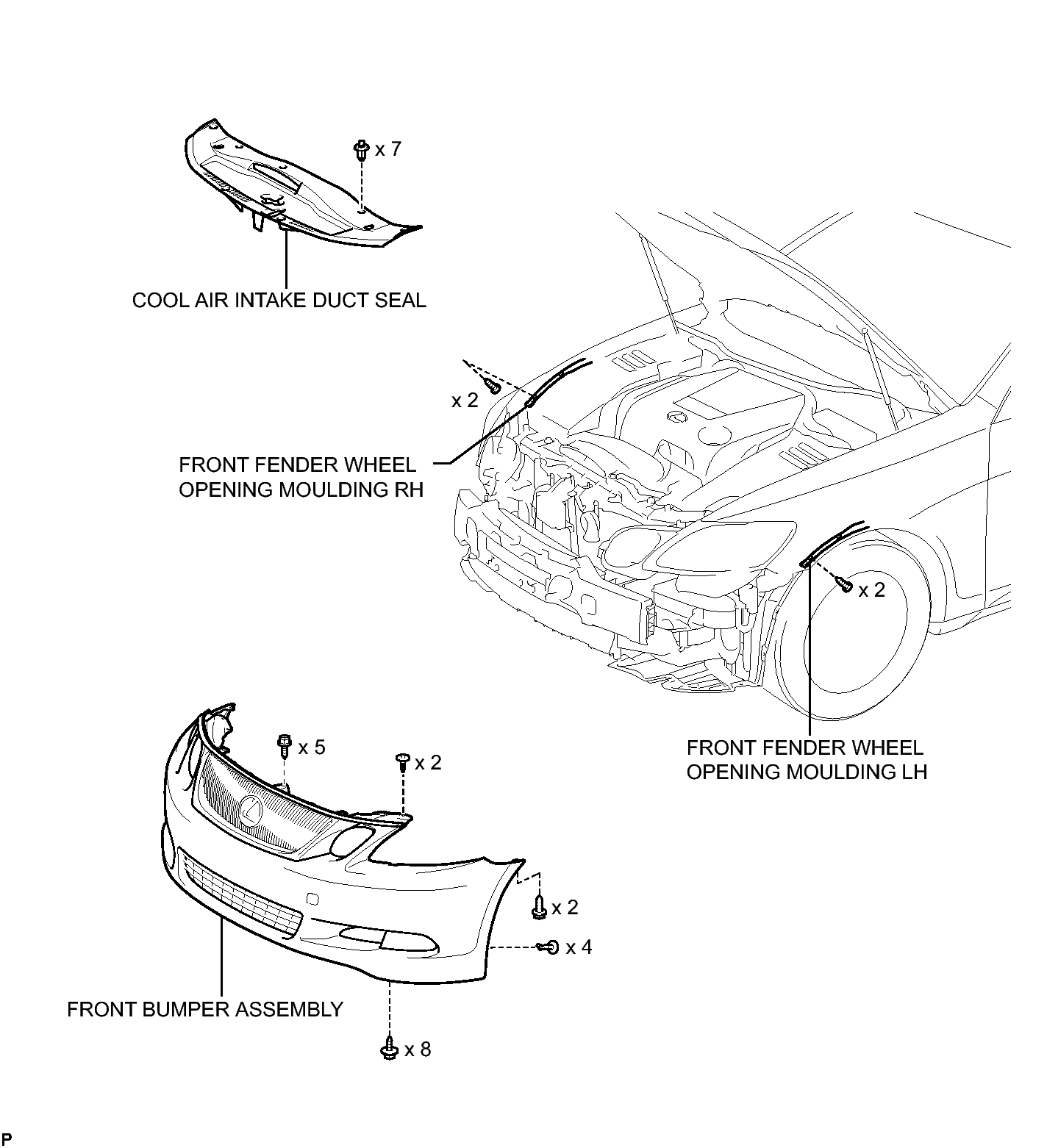

Fig 1: Identifying Sub Radiator Replacement Components (1 Of 2)
GTY115768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

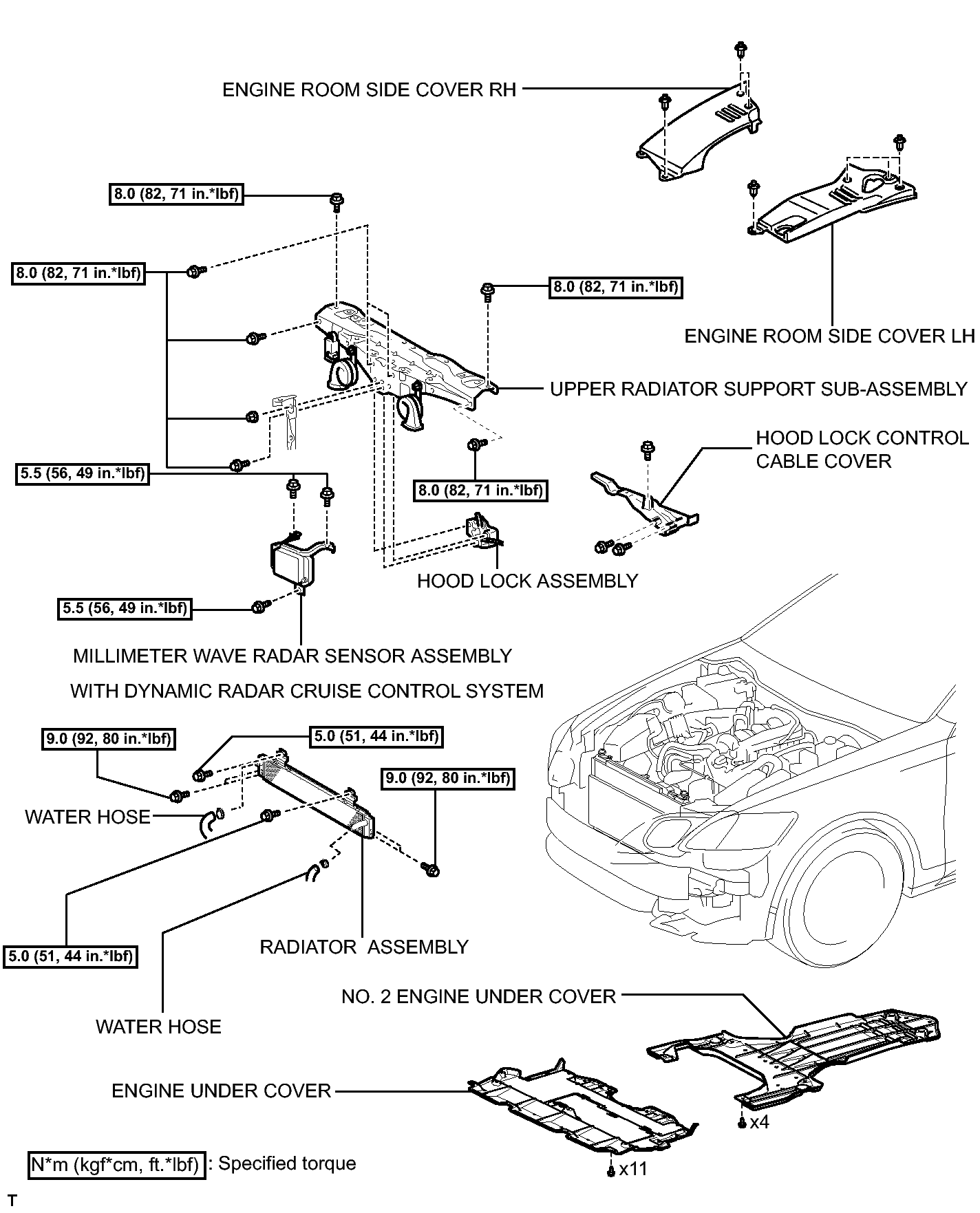

Fig 1: Identifying Sub Radiator Replacement Components With Torque Specifications (2 Of 2)
GTY121025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
