Accelerator Pedal Rod: Components: Illustration

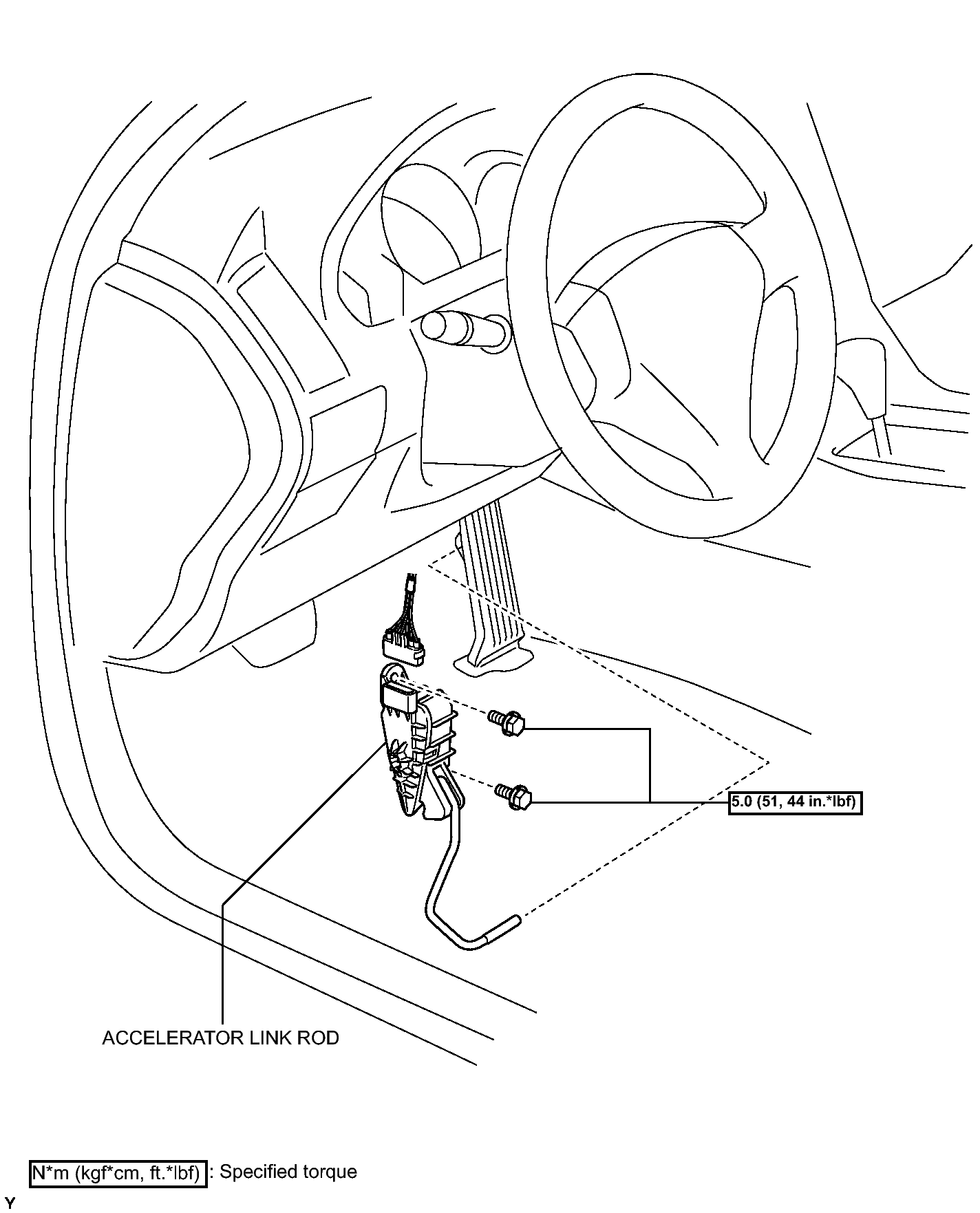

Fig 1: Identifying Accelerator Pedal Rod Replacement Components With Torque Specifications

GTY147224

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
