Fuel Pump: Components: Illustration

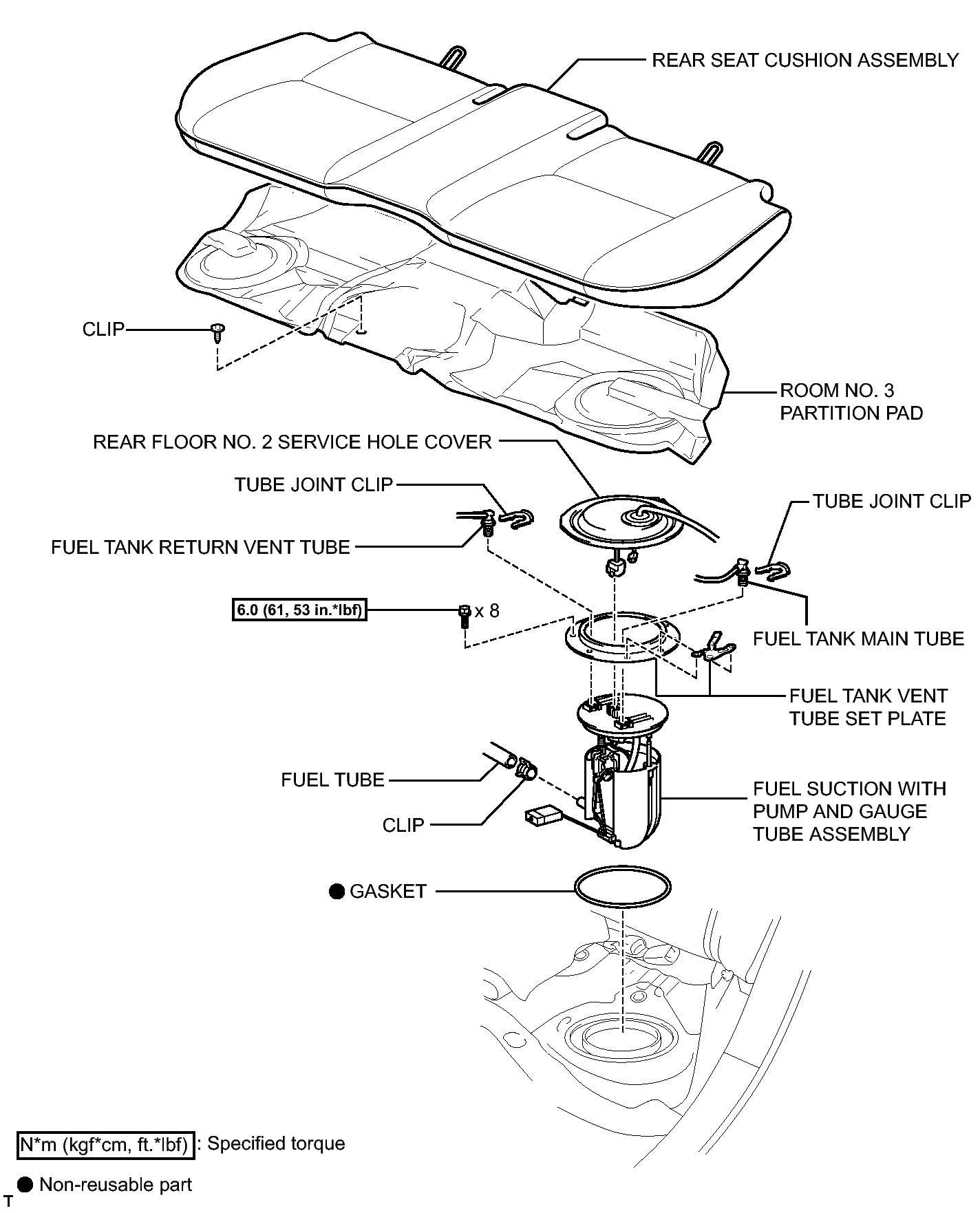

Fig 1: Identifying Fuel Pump Replacement Components With Torque Specifications (1 Of 2)
GTY146642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

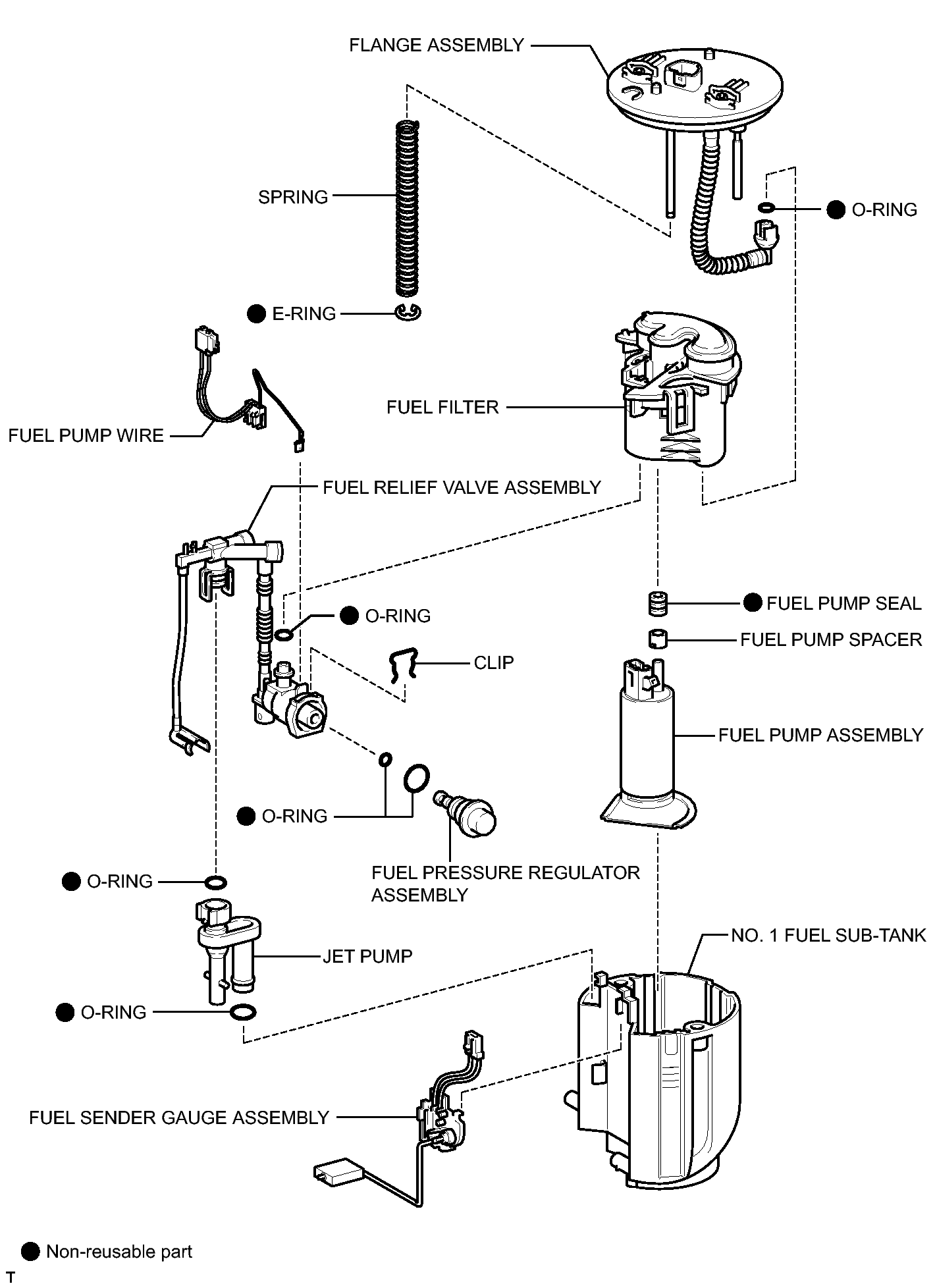

Fig 1: Identifying Fuel Pump Replacement Components (2 Of 2)
GTY146913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
