Yaw Rate And Acceleration Sensor: Components: Illustration

Fig 1: Identifying Yaw Rate And Acceleration Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY255282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

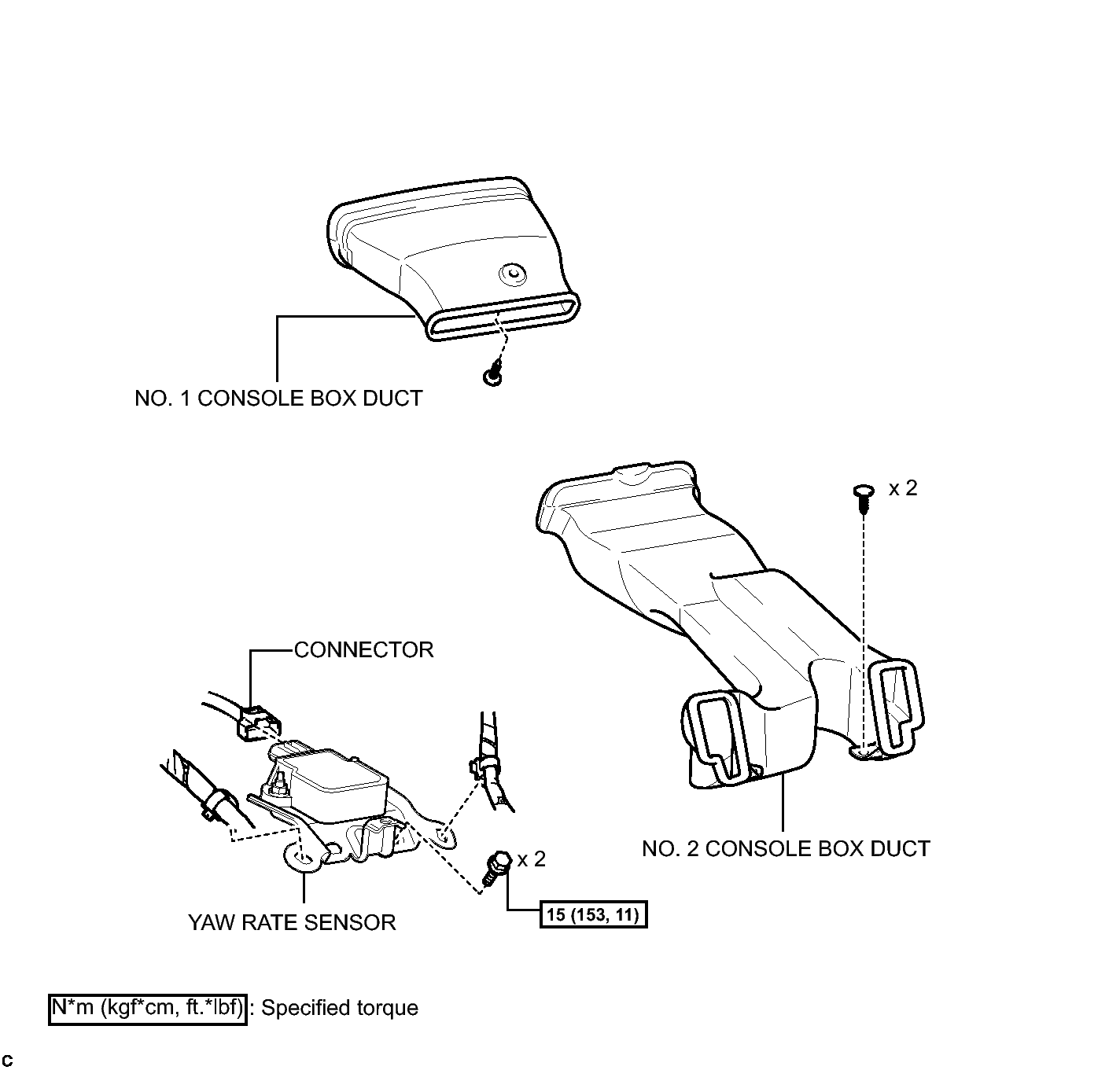

Fig 1: Identifying Yaw Rate And Acceleration Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY280535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
