Brake Pedal Stroke Sensor: Components: Illustration

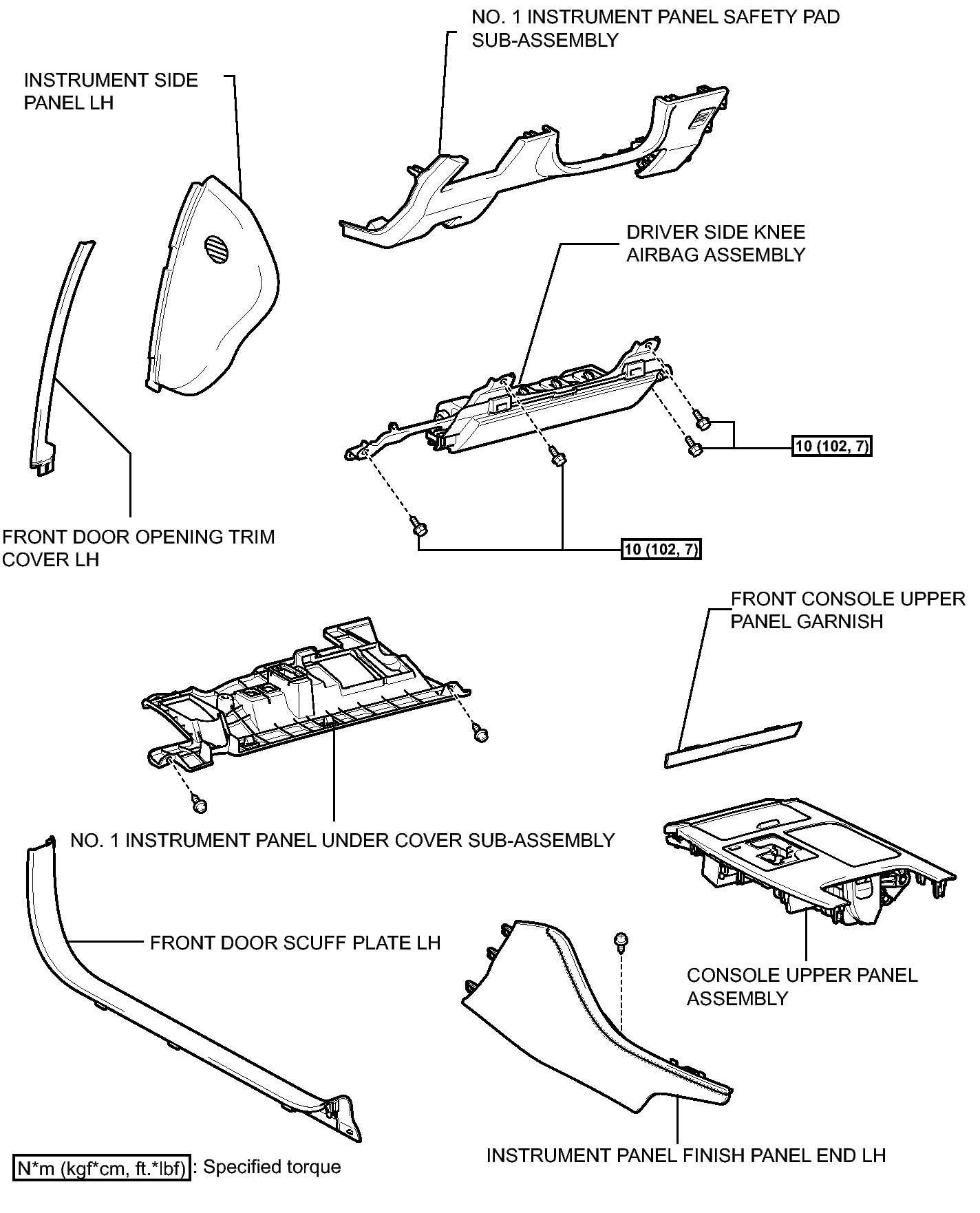

Fig 1: Identifying Brake Pedal Stroke Sensor Replacement Components With Torque Specification (1 Of 2)
GTY112033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

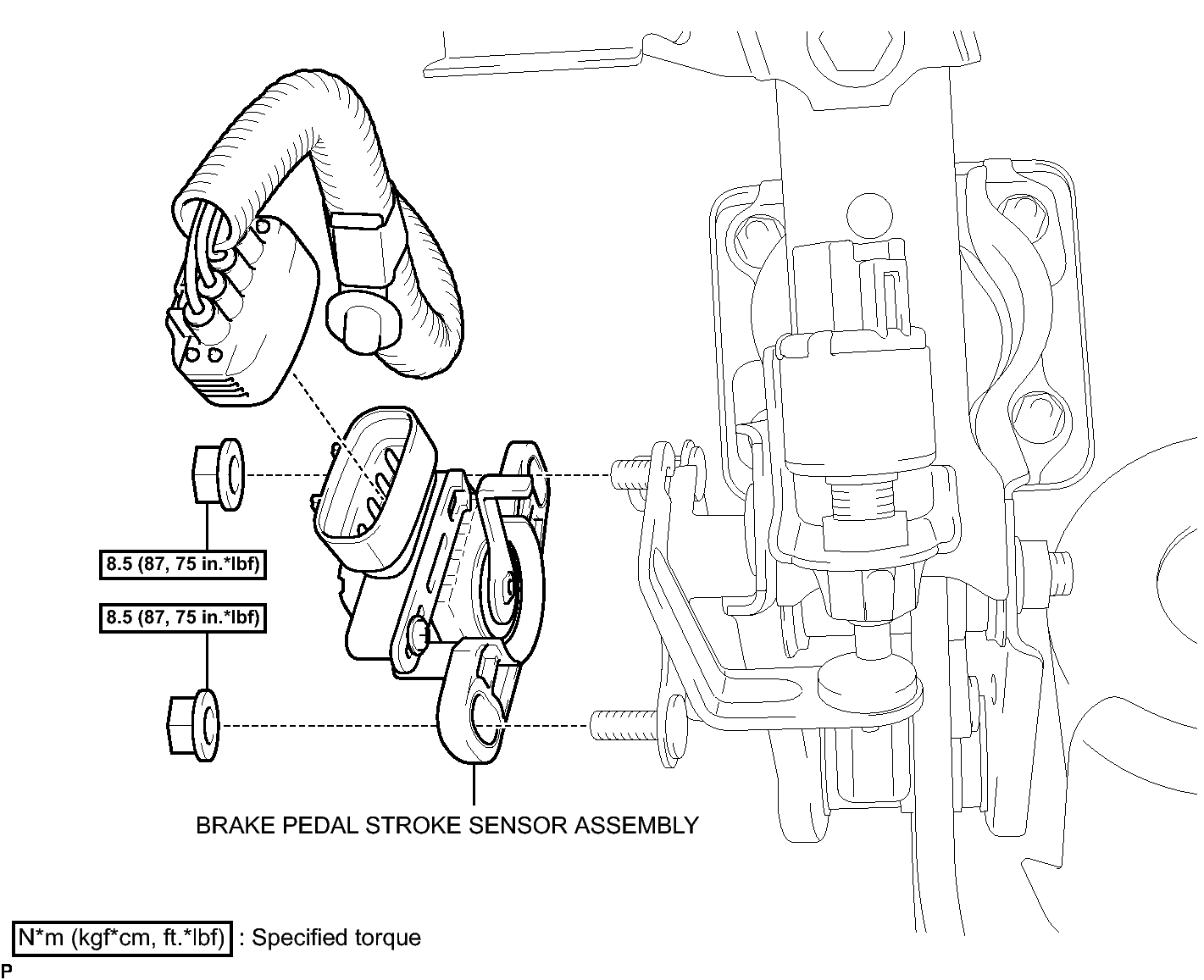

Fig 1: Identifying Brake Pedal Stroke Sensor Replacement Components With Torque Specification (2 Of 2)
GTY137906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
