Brake Actuator: Components: Illustration

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications (1 Of 2)
GTY133987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

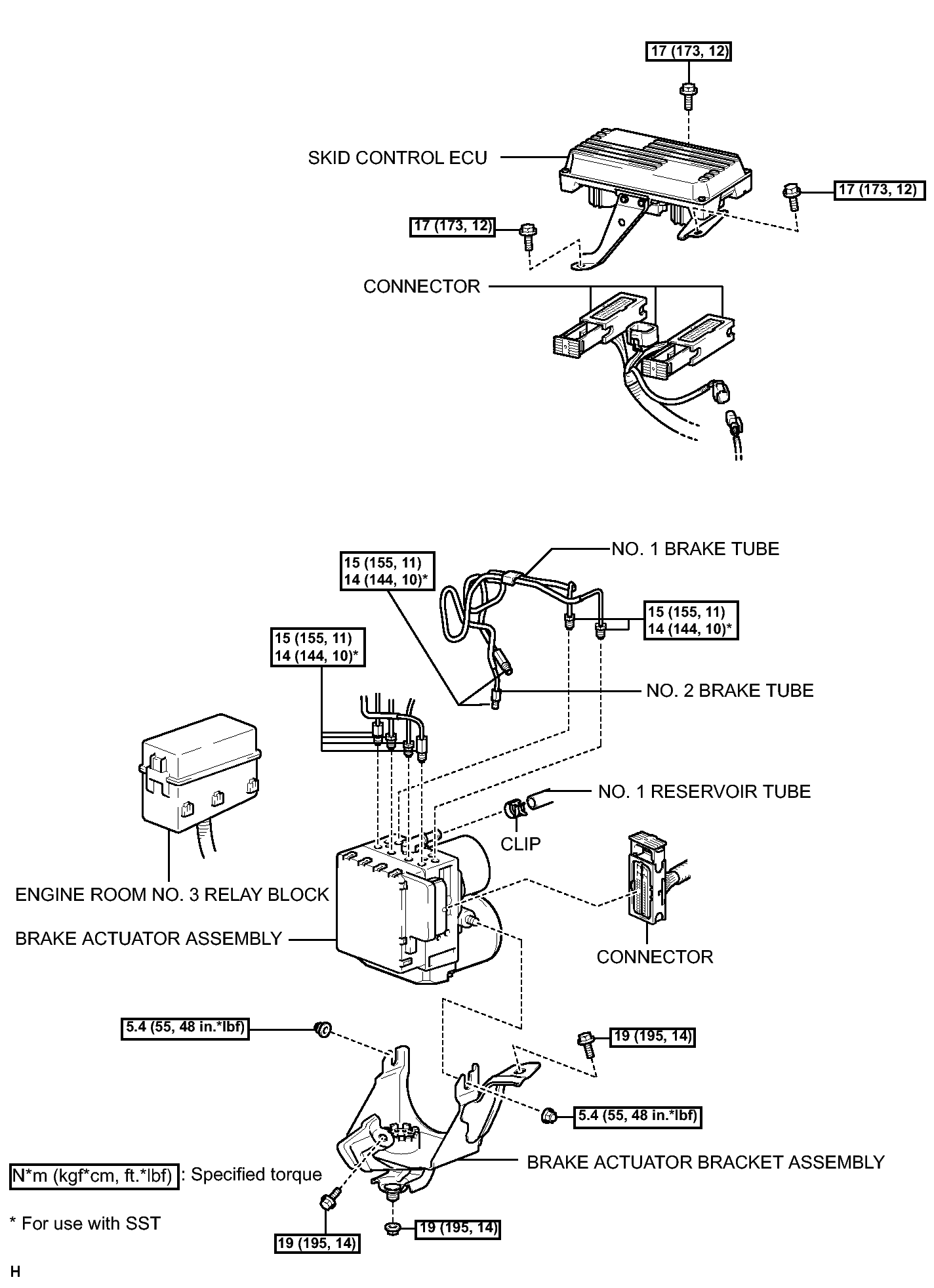

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications (2 Of 2)
GTY111798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
