Sound Signal Circuit between Navigation ECU and Multi-media Interface ECU: Wiring Diagram

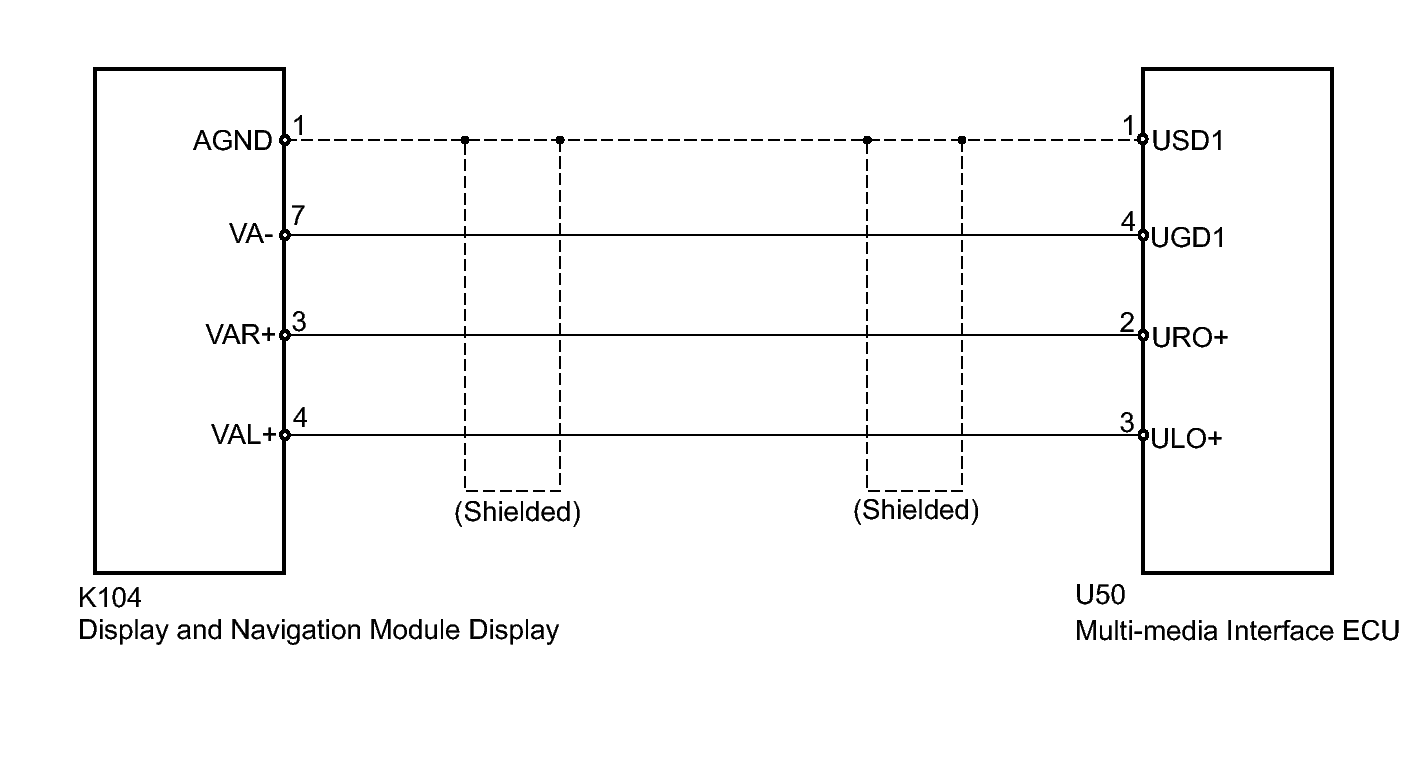

Fig 1: Sound Signal Circuit Wiring Diagram

GTY255285

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
