Can Communication System
>>
DTC U0131-433: Lost Communication with Power Steering Control Module; DTC U0131-434: Lost Communication with Power Steering Control Module
>>
Wiring Diagram
DTC U0131-433: Lost Communication with Power Steering Control Module; DTC U0131-434: Lost Communication with Power Steering Control Module: Wiring Diagram

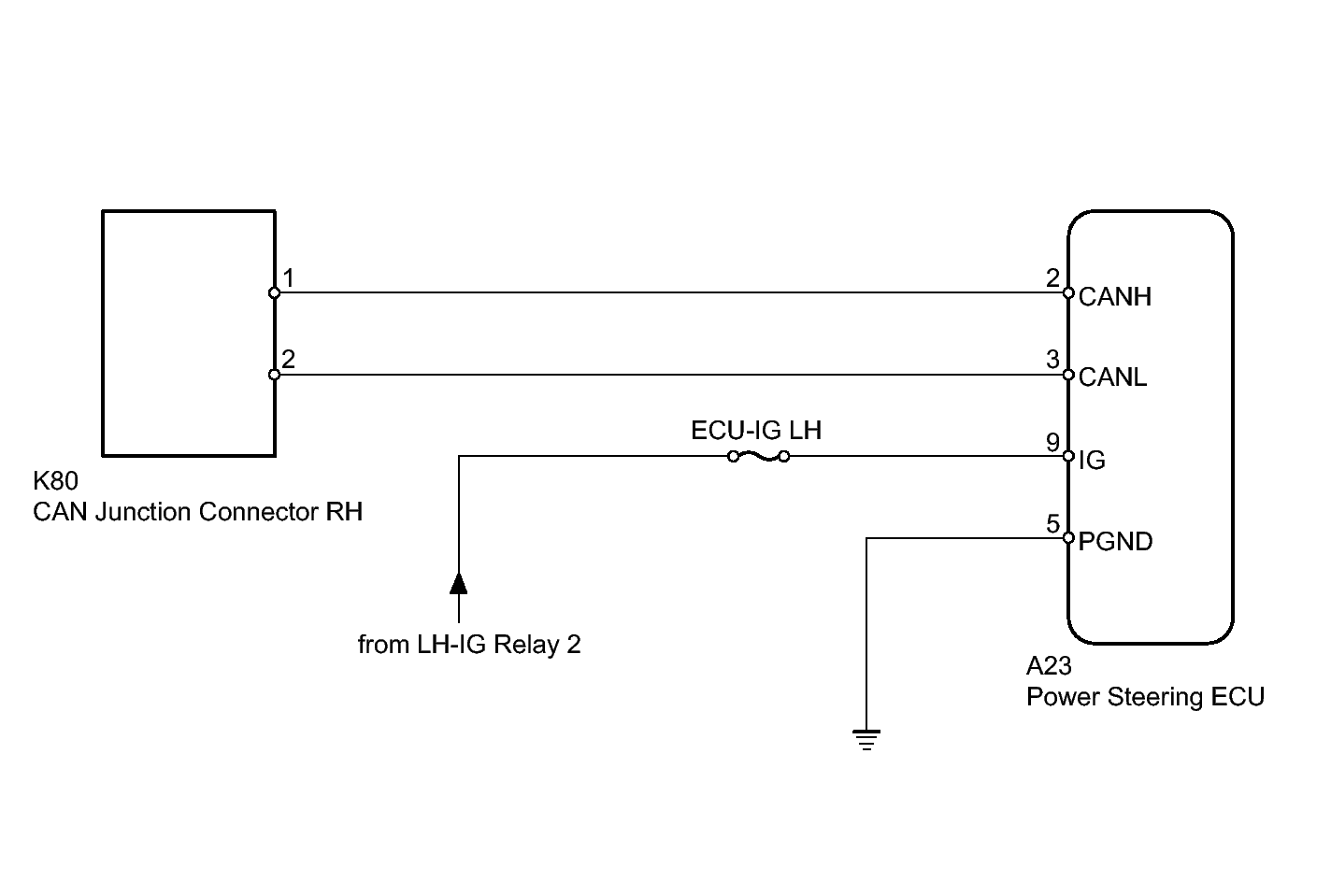

Fig 1: Lost Communication With Power Steering Control Module - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
