Power Window Control System (Diagnostics & Symptom Tests)
>>
Power Window Control System
>>
System Diagram
>>
System Diagram
System Diagram

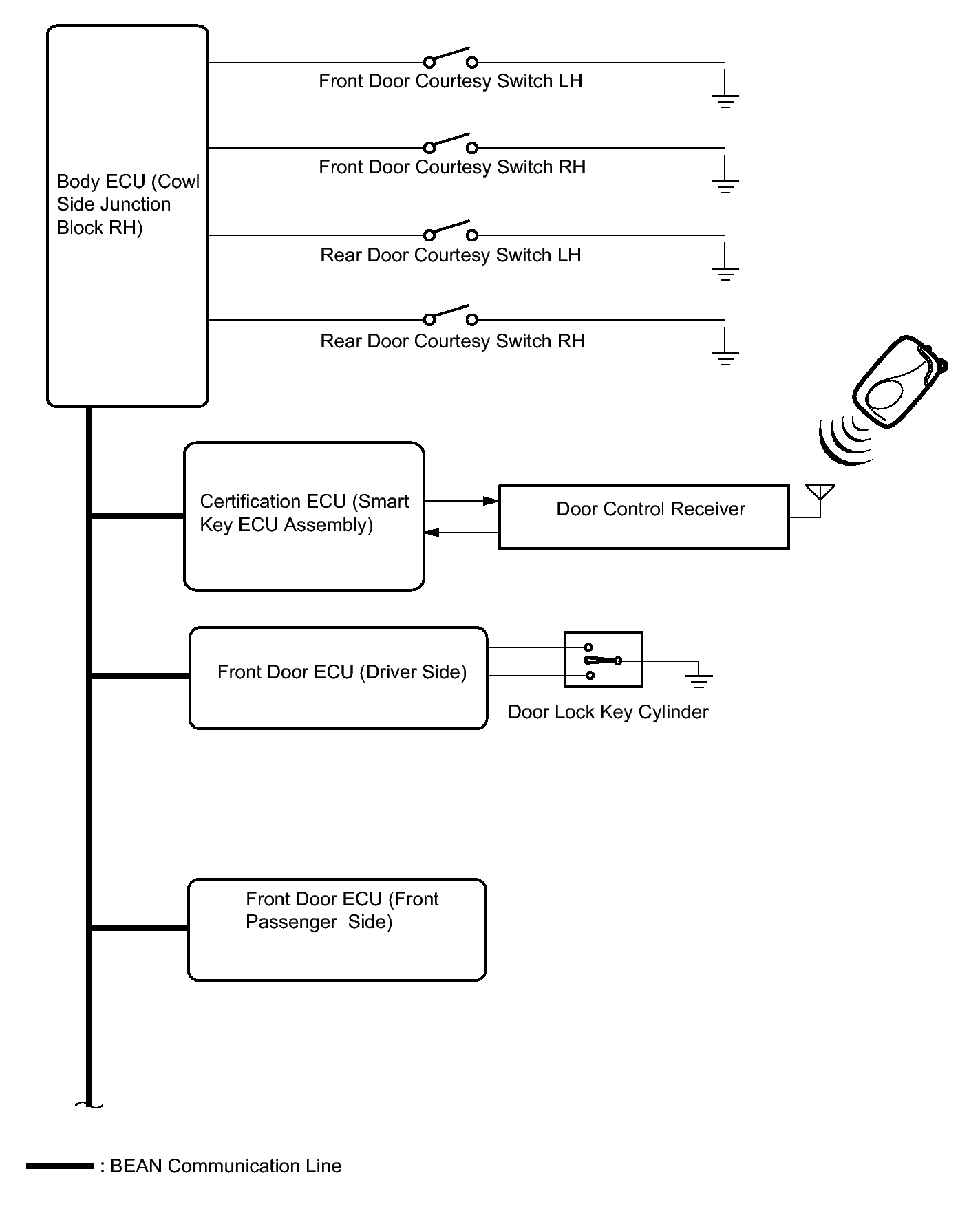

Fig 1: Power Window Control System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

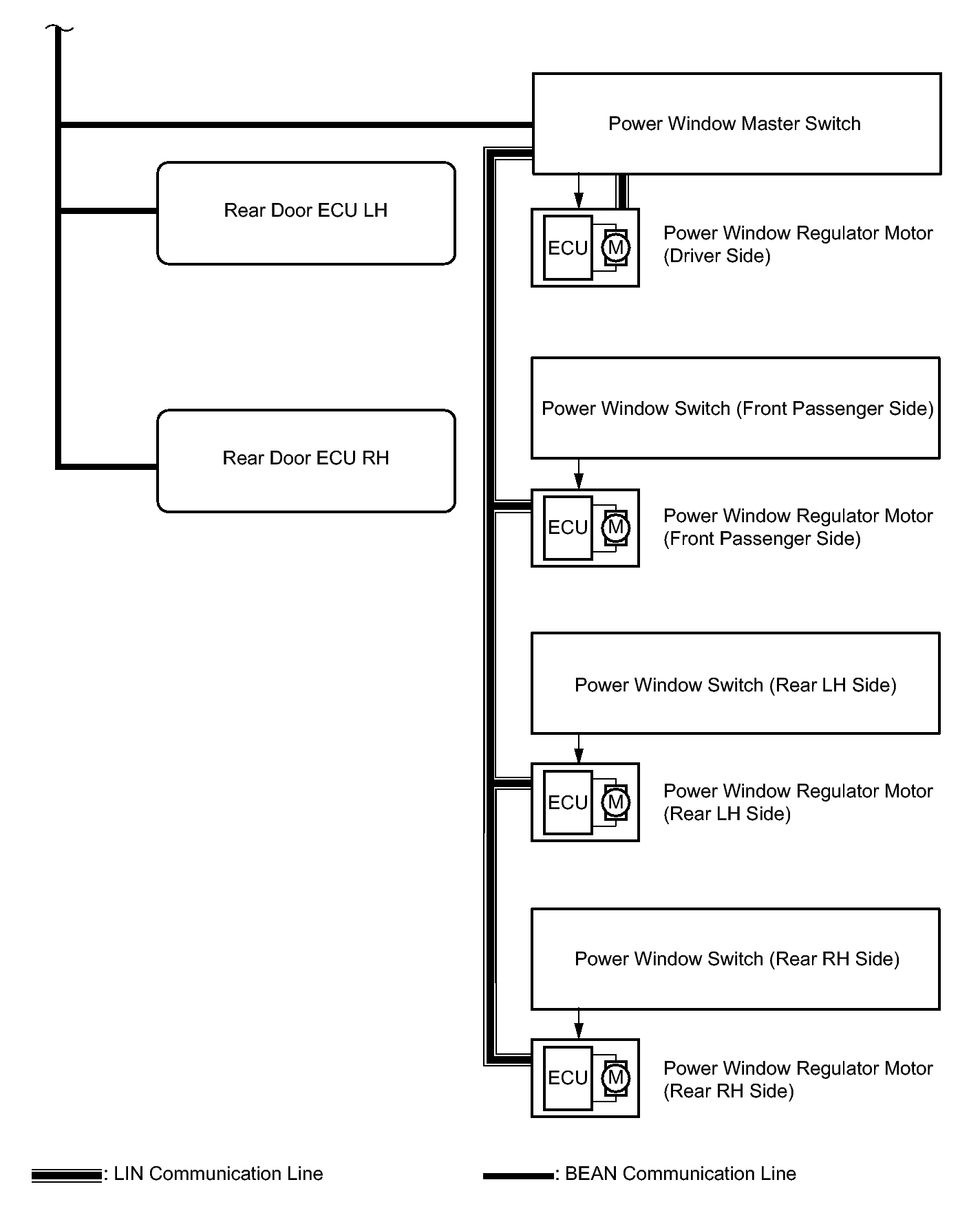

Fig 2: Power Window Control System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
