System Diagram

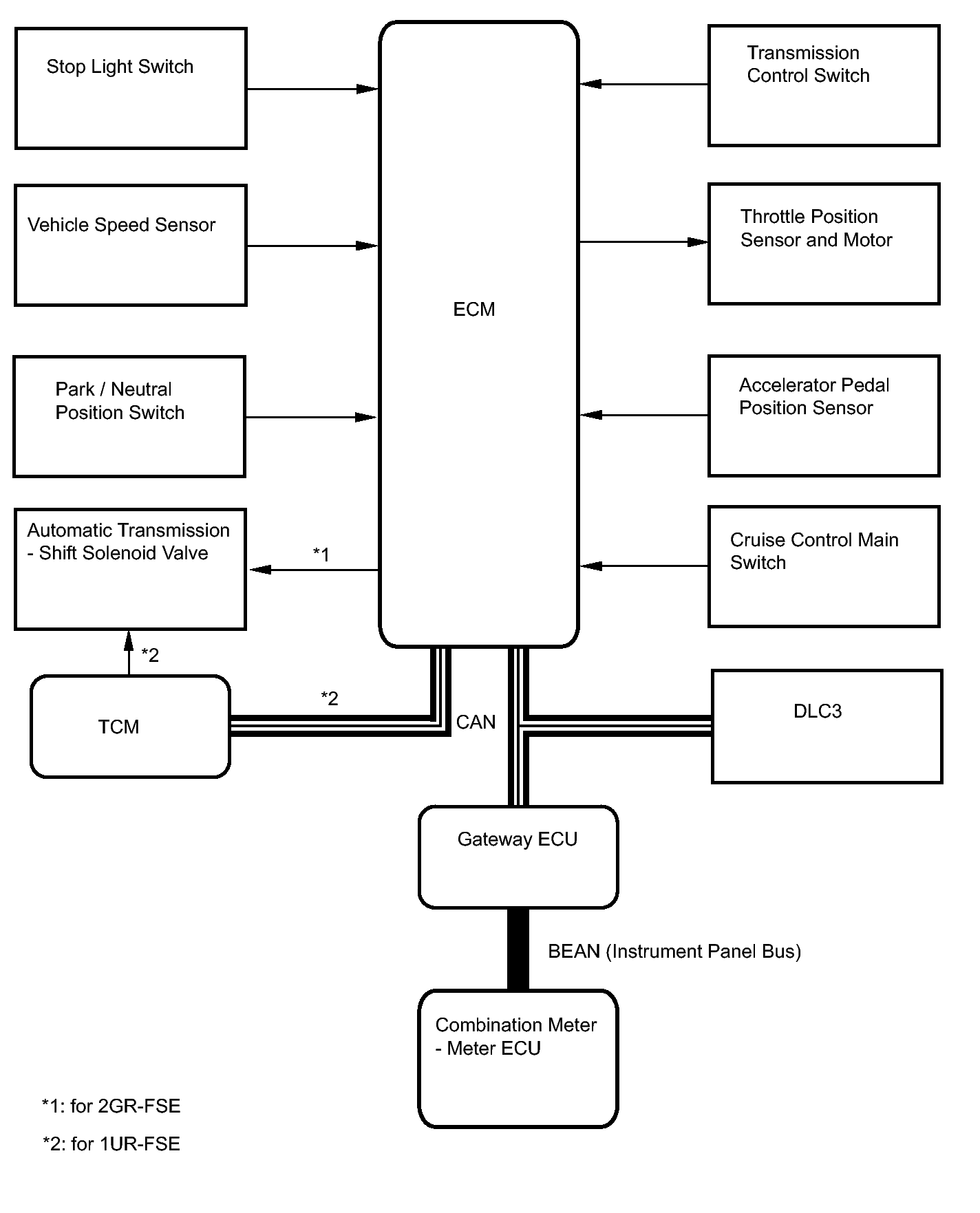

Fig 1: Identifying Cruise Control System Diagram
GTY259619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE:

Sender Receiver Signal Line
ECM Combination Meter ECU CRUISE main indicator operation signal CAN
BEAN
(Instrument Panel Bus)
ECM TCM Shift up/down request signal CAN*
TCM ECM Shift up/down response CAN*
