Fuel Pump: Components: Illustration

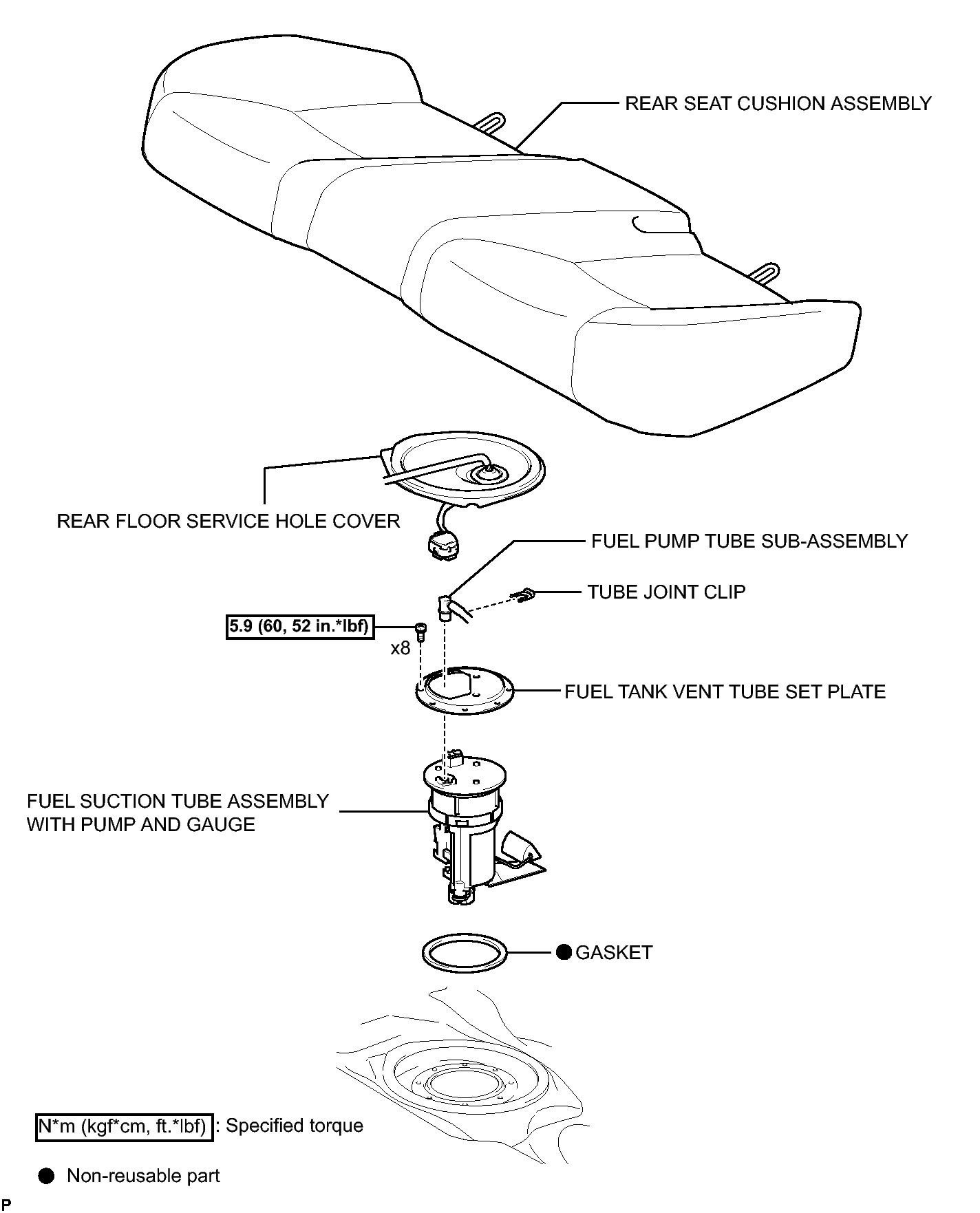

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (1 Of 2)
GTY147395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

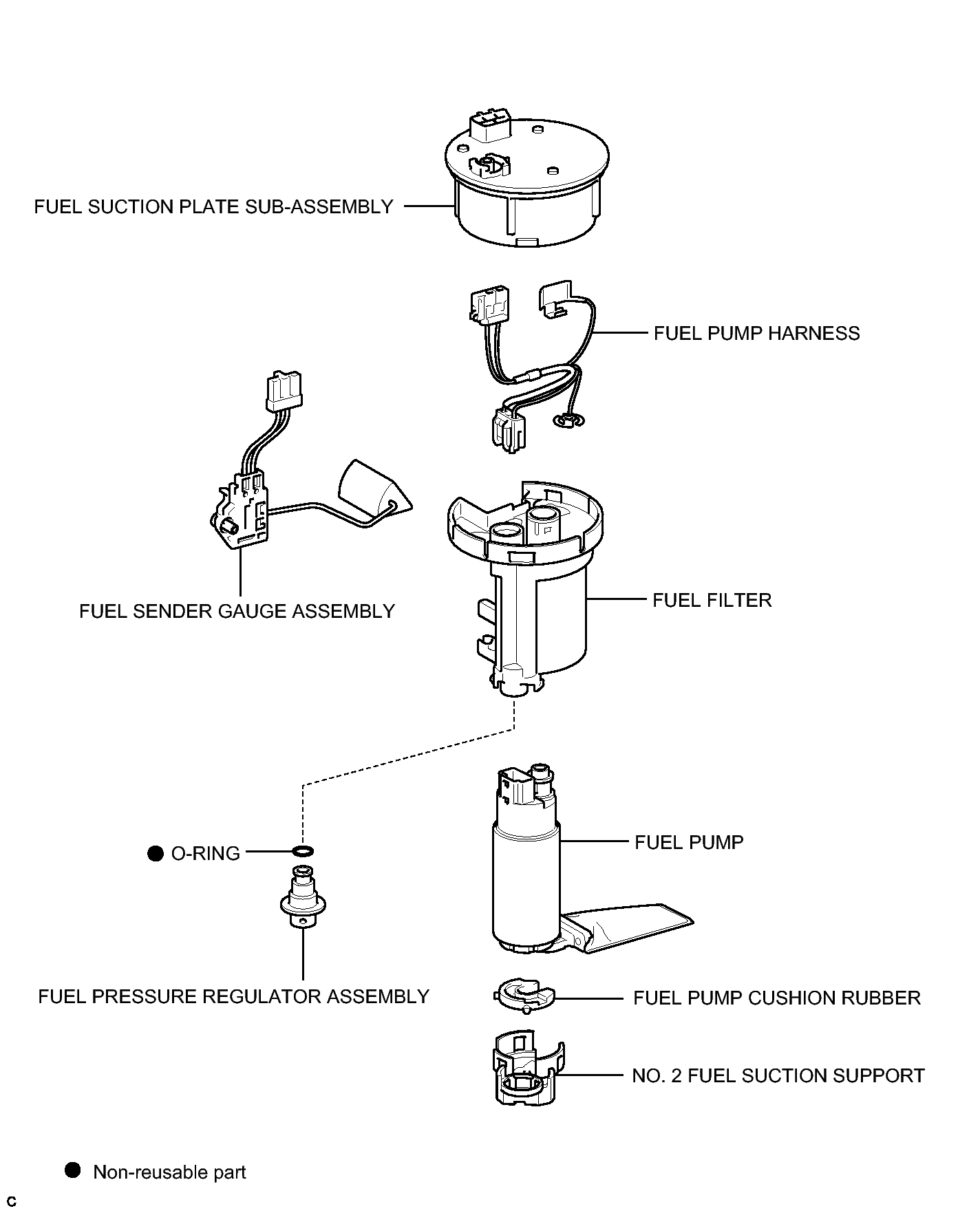

Fig 1: Identifying Fuel Pump Replacement Components With Torque Specifications (2 Of 2)
GTY146953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
