Distance Control Ecu: Components: Illustration

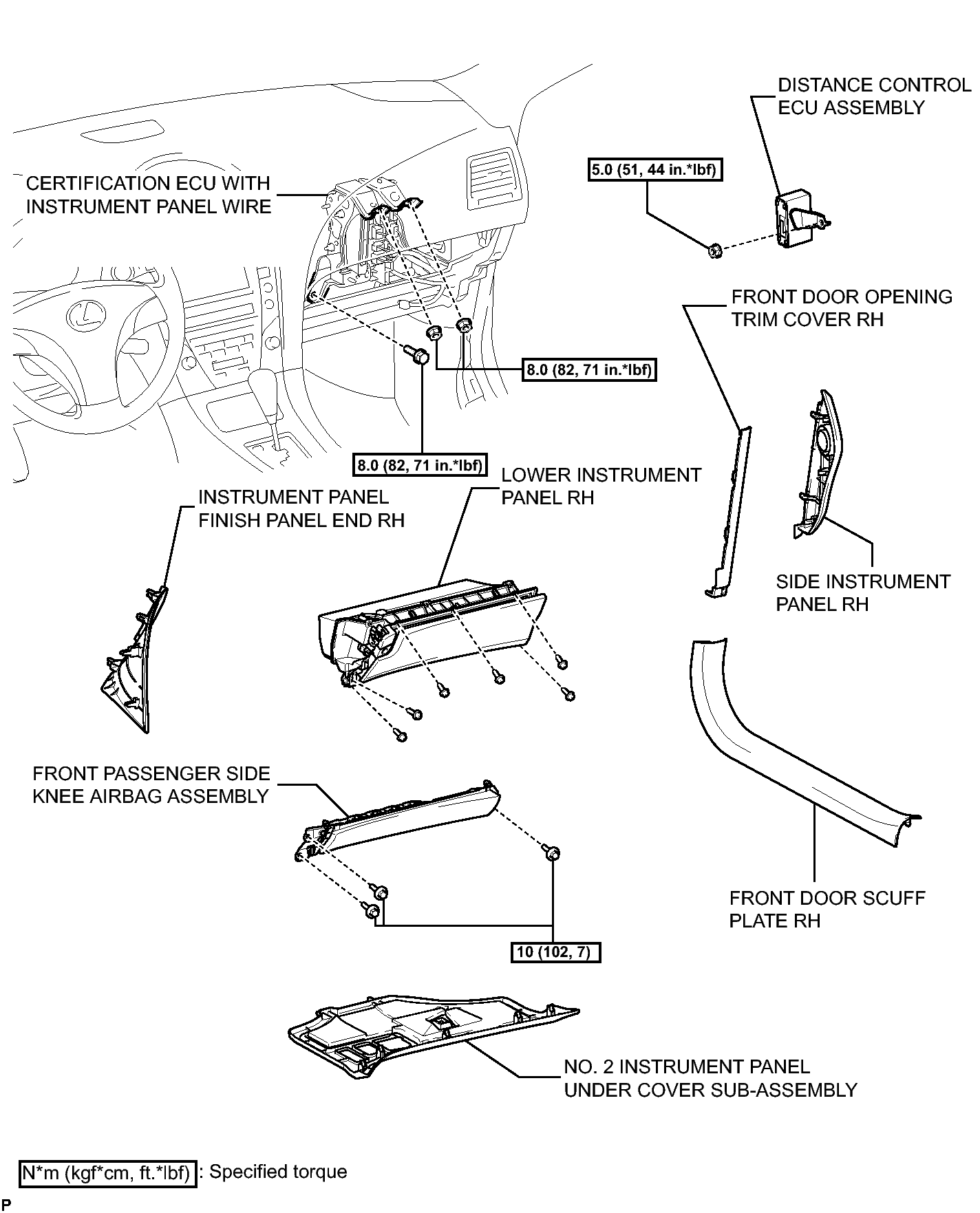

Fig 1: Identifying Distance Control ECU Replacement Components With Torque Specifications

GTY130100

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
