Unlock Position Sensor Signal Circuit: Wiring Diagram

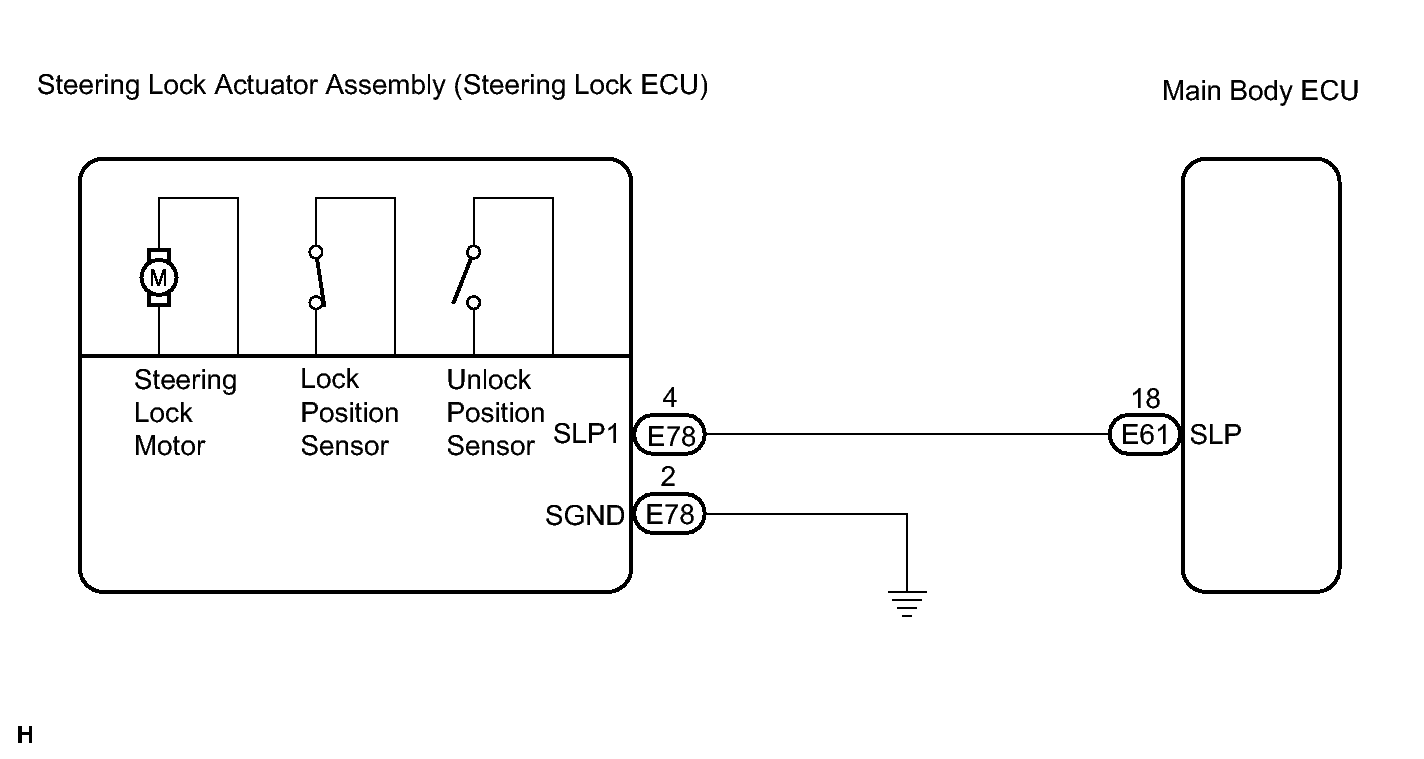

Fig 1: Unlock Position Sensor Signal Circuit - Wiring Diagram

GTY133838

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
