DTC P0102, P0103: Mass or Volume Air Flow Circuit Low Input; Mass or Volume Air Flow Circuit High Input
>>
Wiring Diagram
DTC P0102, P0103: Mass or Volume Air Flow Circuit Low Input; Mass or Volume Air Flow Circuit High Input: Wiring Diagram

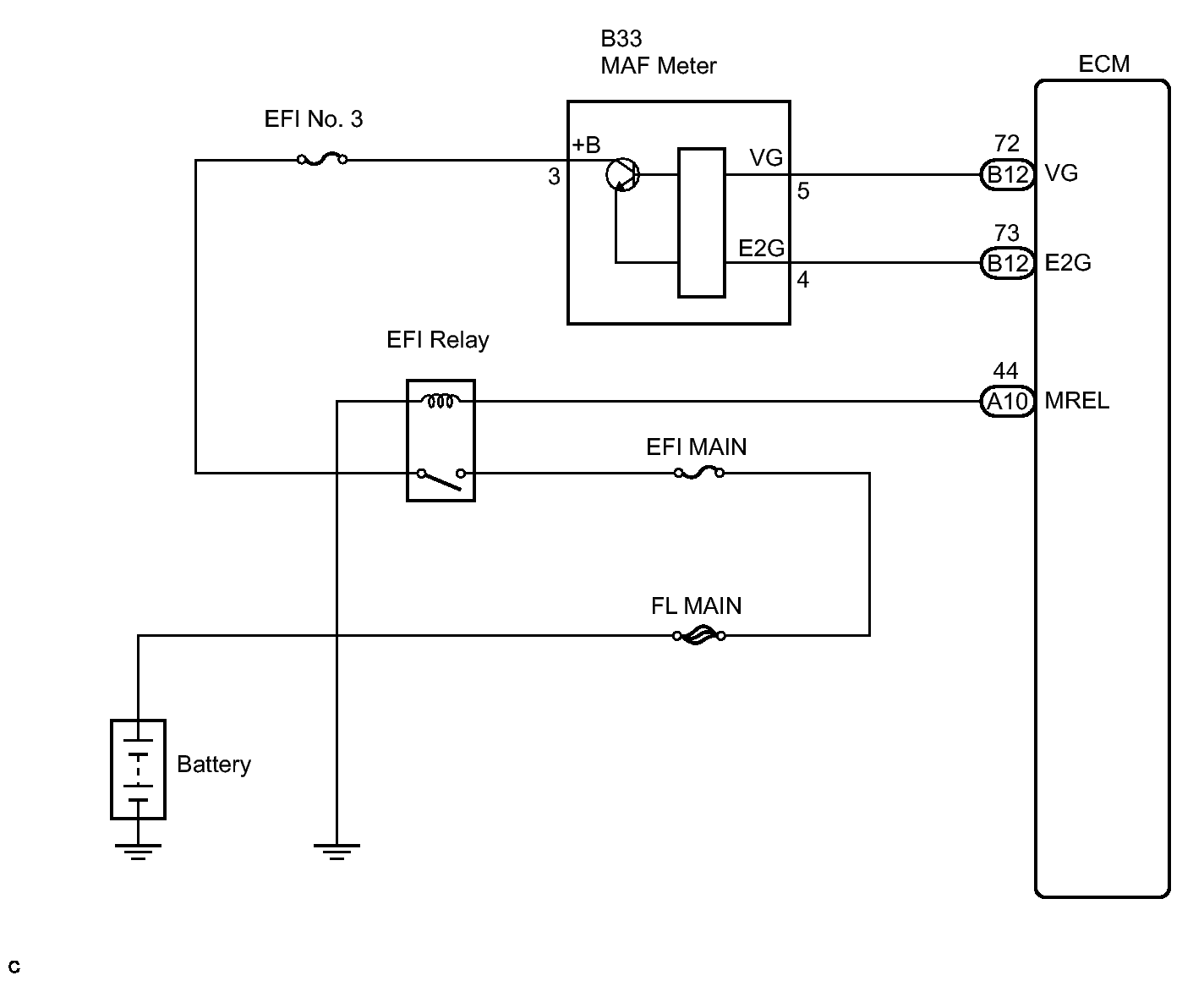

Fig 1: Identifying Mass & Volume Air Flow Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
