DTC U0073/94, U0100/65, U0123/62, U0124/95, U0126/63: Control Module Communication Bus OFF; Lost Communication with ECM/PCM; Lost Communication with Yaw Rate Sensor Module; Lost Communication with Lateral Acceleration Sensor Module; Lost Communication with Steering Angle Sensor Module: Wiring Diagram

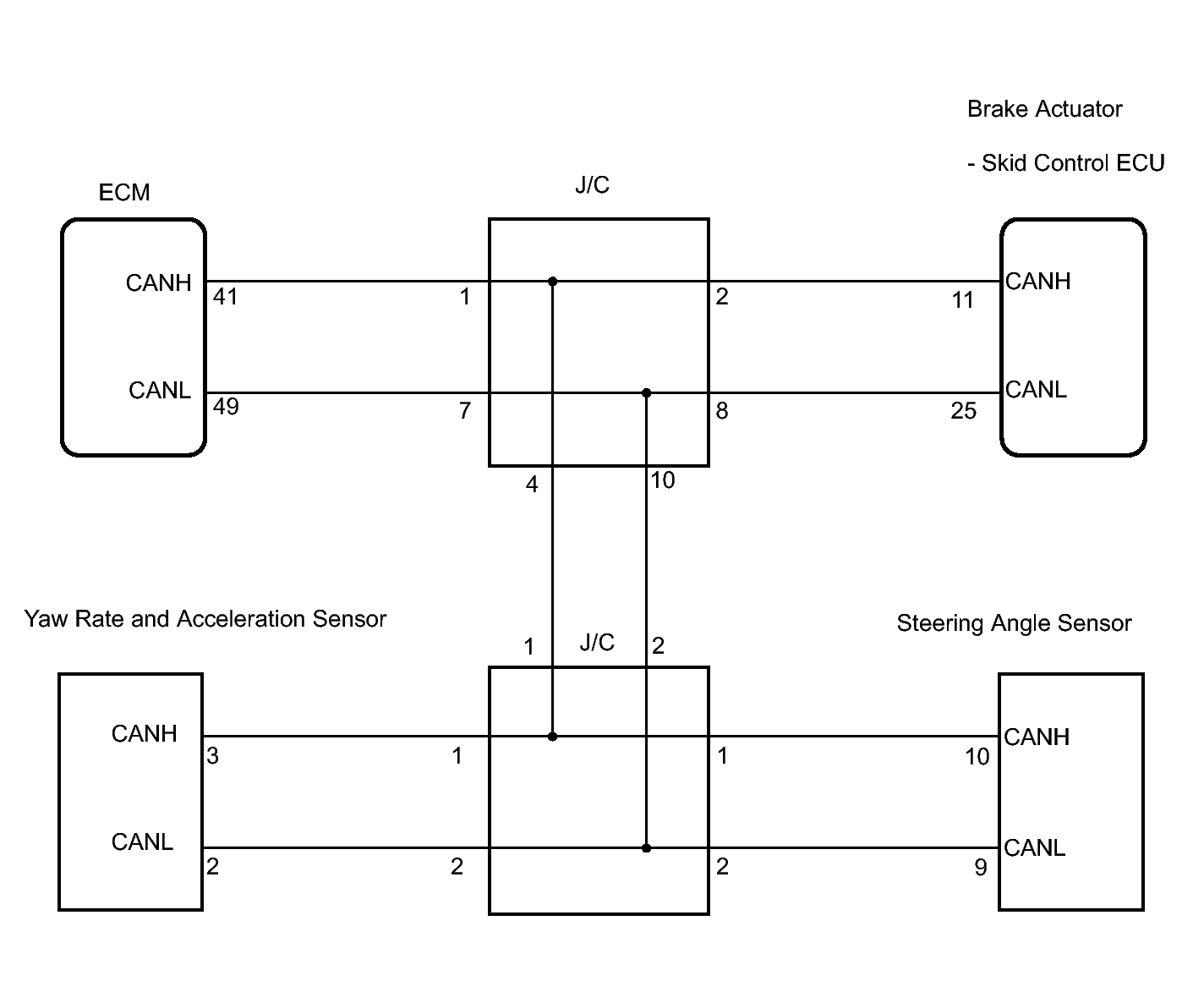

Fig 1: Yaw Rate And Acceleration Sensor - Wiring Diagram
GTY128741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
