Front Passenger Side Seat Memory Switch Circuit: Wiring Diagram

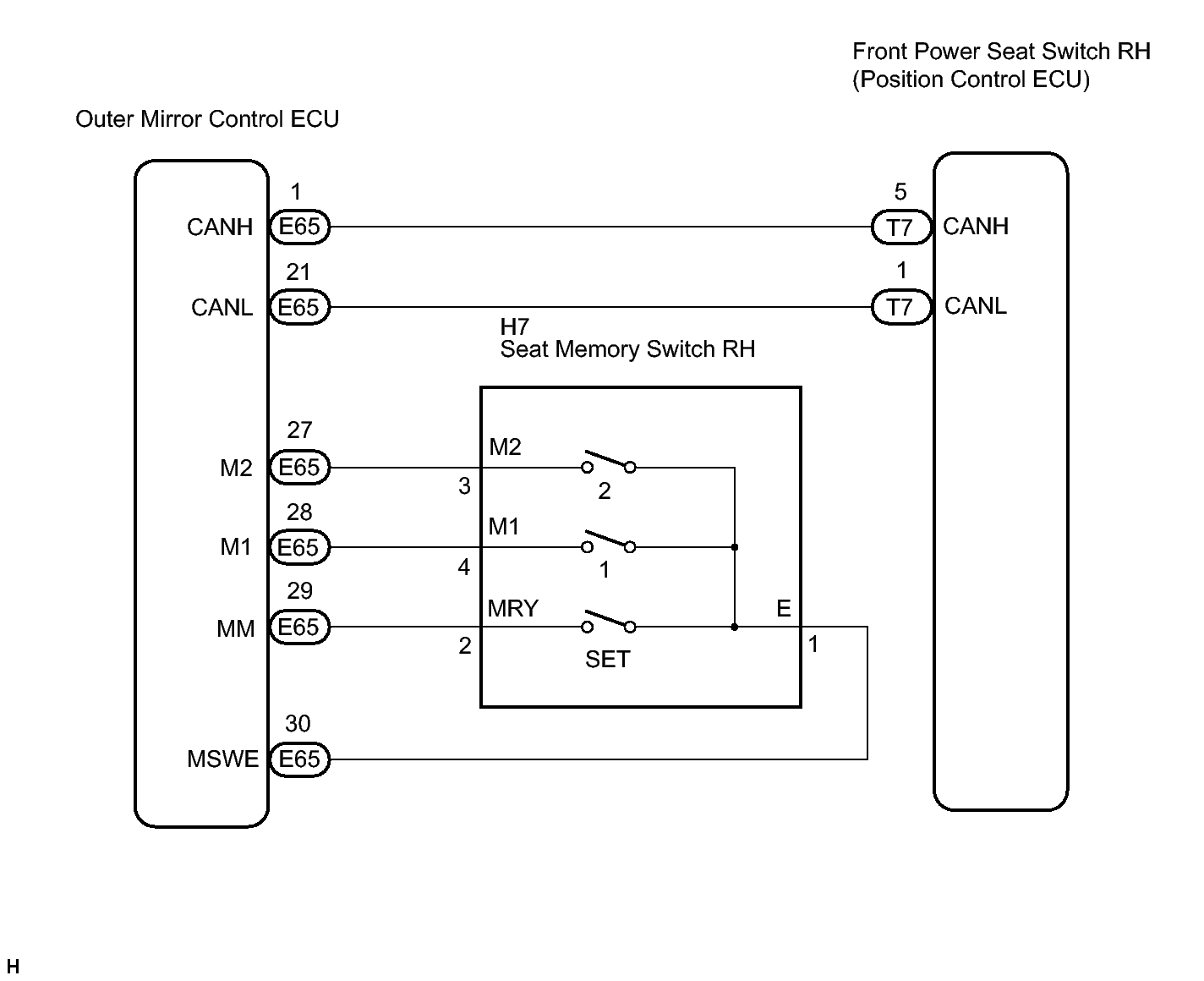

Fig 1: Front Passenger Side Seat Memory Switch Circuit - Wiring Diagram

GTY118830

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
