Front Passenger Side Seat Memory Switch Circuit: Procedure

  1. CHECK FOR DTC (CAN COMMUNICATION SYSTEM)
    1. Check for DTCs in the CAN communication system. Refer to HOW TO PROCEED WITH TROUBLESHOOTING .

      Result

      Result Proceed to
      DTC is not output A
      DTC is output B

    B → REPAIR CIRCUITS INDICATED BY OUTPUT DTCS

    A: Go to next step

  2. READ VALUE USING TECHSTREAM (SEAT MEMORY SWITCH RH)
    1. Connect Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Read the DATA LIST.
      MIRROR:

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      P Set Memory Front passenger side SET memory switch/ON or OFF ON: Front passenger side SET memory switch is ON
      OFF: Front passenger side SET memory switch is OFF      		 -
      P Mem 1 SW Front passenger side memory switch 1/ON or OFF ON: Front passenger side M1 memory switch is ON
      OFF: Front passenger side M1 memory switch is OFF      		 -
      P Mem 2 SW Front passenger side memory switch 2/ON or OFF ON: Front passenger side M2 memory switch is ON
      OFF: Front passenger side M2 memory switch is OFF      		 -

      OK

      On the tester screen, each item changes between ON and OFF according to the above table.

    NG → See step   3

    OK → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

  3. INSPECT SEAT MEMORY SWITCH RH
    1. Remove the seat memory switch RH. Refer to INSPECTION - Step 2 .
    2. Measure the resistance according to the value(s) in the table below.

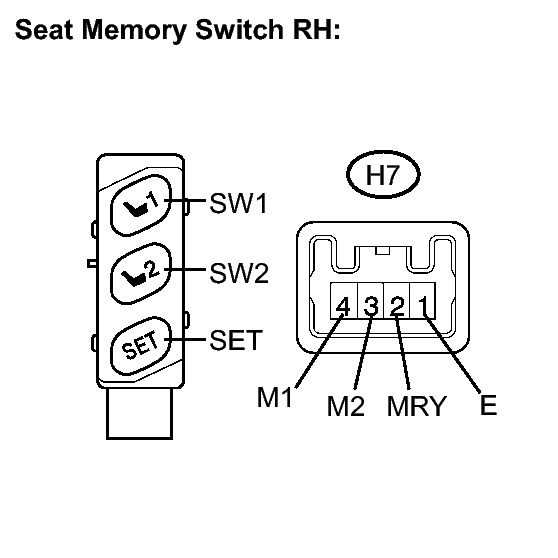

      Fig 1: Identifying Seat Memory Switch RH
      GTY126878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester Connection Switch Position Specified Condition
      H7-1 (E) - H7-2 (MRY) SET switch is pressed Below 1 Ω
      SET switch is not pressed 10 kΩ or higher
      H7-1 (E) - H7-3 (M2) M2 switch is pressed Below 1 Ω
      M2 switch is not pressed 10 kΩ or higher
      H7-1 (E) - H7-4 (M1) M1 switch is pressed Below 1 Ω
      M1 switch is not pressed 10 kΩ or higher

    NG → REPLACE SEAT MEMORY SWITCH RH

    OK: Go to next step

  4. CHECK HARNESS AND CONNECTOR (SEAT MEMORY SWITCH RH CIRCUIT)
    1. Measure the resistance according to the value(s) in the table below.

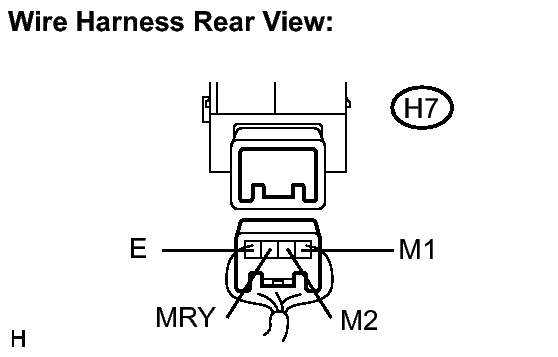

      Fig 2: Checking Harness And Connector (Seat Memory Switch RH Circuit)
      GTY119643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester Connection Condition Specified Condition
      H7-1 (E) - Body ground Always Below 1 Ω
      H7-1 (E) - H7-2 (MRY) Always 10 kΩ or higher
      H7-1 (E) - H7-3 (M2) Always 10 kΩ or higher
      H7-1 (E) - H7-4 (M1) Always 10 kΩ or higher

    NG → See step   5

    OK → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

  5. CHECK HARNESS AND CONNECTOR (OUTER MIRROR CONTROL ECU - SEAT MEMORY SWITCH, BODY GROUND)
    1. Disconnect the outer mirror control ECU RH connector.

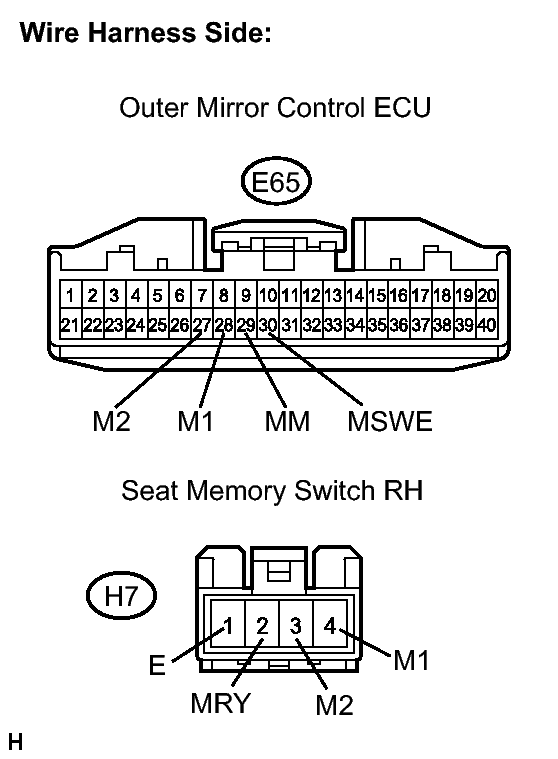

      Fig 3: Checking Harness And Connector (Outer Mirror Control ECU - Seat Memory Switch, Body Ground)
      GTY118825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      E65-27 (M2) - H7-3 (M2) Always Below 1 Ω
      E65-28 (M1) - H7-4 (M1) Always Below 1 Ω
      E65-29 (MM) - H7-2 (MRY) Always Below 1 Ω
      E65-30 (MSWE) - H7-1 (E) Always Below 1 Ω
      E65-30 (MSWE) - Body ground Always Below 1 Ω
      H7-1 (E) - Body ground Always Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → REPLACE OUTER MIRROR CONTROL ECU
